Lenovo Global Technology ThinkSystem SD530 V3 ssj_ops@100% = 8,559,211
ssj_ops@100% per JVM = 133,738
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jan 16, 2024
Hardware Availability: Mar-2024 Software Availability: Jan-2024 Publication: Feb 16, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     8,662,448
Calibration 2     8,582,924
Calibration 3     8,568,553
ssj_ops@calibrated=8,575,738
100% 99.8% 8,575,738 8,559,211
90% 91.5% 7,718,164 7,846,904
80% 80.2% 6,860,591 6,877,019
70% 70.0% 6,003,017 6,004,023
60% 60.0% 5,145,443 5,145,648
50% 50.0% 4,287,869 4,285,879
40% 40.0% 3,430,295 3,432,590
30% 30.0% 2,572,721 2,572,155
20% 20.0% 1,715,148 1,716,220
10% 10.0% 857,574 855,737
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD530 V3
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: 64 Core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 8 x 32768 MB
Memory Details: 32GB 2Rx8 PC5-4800; slots 1 to 8 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE RJ45 4-port
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.2227)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode)
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: start /NODE[0-1] /AFFINITY [0x3, 0xc, 0x30, 0xc0, 0x300, 0xc00, 0x3000, 0xc000, 0x30000, 0xc0000, 0x300000, 0xc00000, 0x3000000, 0xc000000, 0x30000000, 0xc0000000, 0x300000000, 0xc00000000, 0x3000000000, 0xc000000000, 0x30000000000, 0xc0000000000, 0x300000000000, 0xc00000000000, 0x3000000000000, 0xc000000000000, 0x30000000000000, 0xc0000000000000, 0x300000000000000, 0xc00000000000000, 0x3000000000000000, 0xc000000000000000]
JVM Instances: 64
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: FNE113F
Management Firmware Version: USX335C
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5034129
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-QKBL1DI75TG.001 131,346
WIN-QKBL1DI75TG.002 130,946
WIN-QKBL1DI75TG.003 132,864
WIN-QKBL1DI75TG.004 134,074
WIN-QKBL1DI75TG.005 132,156
WIN-QKBL1DI75TG.006 134,490
WIN-QKBL1DI75TG.007 135,105
WIN-QKBL1DI75TG.008 136,415
WIN-QKBL1DI75TG.009 133,183
WIN-QKBL1DI75TG.010 134,003
WIN-QKBL1DI75TG.011 131,515
WIN-QKBL1DI75TG.012 132,936
WIN-QKBL1DI75TG.013 135,741
WIN-QKBL1DI75TG.014 131,810
WIN-QKBL1DI75TG.015 131,805
WIN-QKBL1DI75TG.016 133,110
WIN-QKBL1DI75TG.017 133,837
WIN-QKBL1DI75TG.018 133,516
WIN-QKBL1DI75TG.019 131,991
WIN-QKBL1DI75TG.020 132,415
WIN-QKBL1DI75TG.021 132,560
WIN-QKBL1DI75TG.022 133,046
WIN-QKBL1DI75TG.023 134,982
WIN-QKBL1DI75TG.024 133,655
WIN-QKBL1DI75TG.025 135,270
WIN-QKBL1DI75TG.026 134,833
WIN-QKBL1DI75TG.027 132,829
WIN-QKBL1DI75TG.028 132,774
WIN-QKBL1DI75TG.029 134,964
WIN-QKBL1DI75TG.030 135,033
WIN-QKBL1DI75TG.031 131,221
WIN-QKBL1DI75TG.032 130,443
WIN-QKBL1DI75TG.033 132,384
WIN-QKBL1DI75TG.034 132,954
WIN-QKBL1DI75TG.035 134,728
WIN-QKBL1DI75TG.036 133,951
WIN-QKBL1DI75TG.037 134,504
WIN-QKBL1DI75TG.038 135,155
WIN-QKBL1DI75TG.039 133,967
WIN-QKBL1DI75TG.040 134,498
WIN-QKBL1DI75TG.041 134,061
WIN-QKBL1DI75TG.042 134,894
WIN-QKBL1DI75TG.043 136,193
WIN-QKBL1DI75TG.044 135,141
WIN-QKBL1DI75TG.045 132,169
WIN-QKBL1DI75TG.046 131,942
WIN-QKBL1DI75TG.047 134,069
WIN-QKBL1DI75TG.048 133,514
WIN-QKBL1DI75TG.049 135,392
WIN-QKBL1DI75TG.050 133,932
WIN-QKBL1DI75TG.051 133,096
WIN-QKBL1DI75TG.052 133,678
WIN-QKBL1DI75TG.053 134,129
WIN-QKBL1DI75TG.054 136,552
WIN-QKBL1DI75TG.055 135,061
WIN-QKBL1DI75TG.056 132,961
WIN-QKBL1DI75TG.057 137,844
WIN-QKBL1DI75TG.058 134,369
WIN-QKBL1DI75TG.059 137,237
WIN-QKBL1DI75TG.060 133,764
WIN-QKBL1DI75TG.061 133,890
WIN-QKBL1DI75TG.062 133,413
WIN-QKBL1DI75TG.063 133,125
WIN-QKBL1DI75TG.064 131,775
ssj_ops@100% 8,559,211
ssj_ops@100% per JVM 133,738
Graph of per-instance results
JVM 'WIN-QKBL1DI75TG.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,994
Calibration 2     132,376
Calibration 3     132,057
ssj_ops@calibrated=132,217
100% 99.3% 132,217 131,346
90% 91.5% 118,995 120,978
80% 80.4% 105,773 106,295
70% 70.4% 92,552 93,073
60% 59.4% 79,330 78,474
50% 49.9% 66,108 65,916
40% 40.6% 52,887 53,619
30% 29.6% 39,665 39,112
20% 20.5% 26,443 27,160
10% 10.3% 13,222 13,648
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,123
Calibration 2     132,123
Calibration 3     131,436
ssj_ops@calibrated=131,780
100% 99.4% 131,780 130,946
90% 90.2% 118,602 118,884
80% 79.8% 105,424 105,179
70% 70.2% 92,246 92,515
60% 59.4% 79,068 78,266
50% 50.5% 65,890 66,556
40% 40.0% 52,712 52,694
30% 29.4% 39,534 38,731
20% 20.7% 26,356 27,220
10% 9.9% 13,178 13,099
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,684
Calibration 2     133,005
Calibration 3     132,475
ssj_ops@calibrated=132,740
100% 100.1% 132,740 132,864
90% 91.4% 119,466 121,336
80% 79.5% 106,192 105,522
70% 69.9% 92,918 92,823
60% 60.1% 79,644 79,833
50% 50.1% 66,370 66,495
40% 40.3% 53,096 53,494
30% 29.3% 39,822 38,844
20% 20.6% 26,548 27,361
10% 9.9% 13,274 13,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,844
Calibration 2     134,746
Calibration 3     134,207
ssj_ops@calibrated=134,476
100% 99.7% 134,476 134,074
90% 93.3% 121,029 125,498
80% 81.1% 107,581 109,090
70% 70.2% 94,133 94,366
60% 60.4% 80,686 81,245
50% 49.5% 67,238 66,613
40% 39.8% 53,791 53,535
30% 30.5% 40,343 41,032
20% 19.8% 26,895 26,639
10% 10.2% 13,448 13,669
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,420
Calibration 2     132,695
Calibration 3     132,919
ssj_ops@calibrated=132,807
100% 99.5% 132,807 132,156
90% 91.7% 119,527 121,801
80% 81.3% 106,246 107,907
70% 70.5% 92,965 93,608
60% 59.5% 79,684 79,003
50% 50.2% 66,404 66,713
40% 39.7% 53,123 52,660
30% 30.2% 39,842 40,127
20% 20.2% 26,561 26,847
10% 9.8% 13,281 13,071
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,376
Calibration 2     135,033
Calibration 3     134,729
ssj_ops@calibrated=134,881
100% 99.7% 134,881 134,490
90% 92.3% 121,393 124,534
80% 80.2% 107,905 108,126
70% 70.3% 94,417 94,780
60% 59.6% 80,929 80,341
50% 49.9% 67,440 67,332
40% 39.9% 53,952 53,879
30% 30.0% 40,464 40,489
20% 20.2% 26,976 27,188
10% 10.1% 13,488 13,625
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,085
Calibration 2     135,744
Calibration 3     135,410
ssj_ops@calibrated=135,577
100% 99.7% 135,577 135,105
90% 91.4% 122,019 123,932
80% 80.6% 108,461 109,270
70% 70.4% 94,904 95,507
60% 59.7% 81,346 80,996
50% 50.0% 67,788 67,741
40% 39.7% 54,231 53,762
30% 30.3% 40,673 41,102
20% 19.8% 27,115 26,828
10% 10.1% 13,558 13,754
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,430
Calibration 2     136,589
Calibration 3     136,301
ssj_ops@calibrated=136,445
100% 100.0% 136,445 136,415
90% 92.5% 122,800 126,204
80% 79.8% 109,156 108,834
70% 69.6% 95,511 94,908
60% 59.9% 81,867 81,772
50% 50.2% 68,222 68,461
40% 39.8% 54,578 54,253
30% 30.4% 40,933 41,444
20% 20.0% 27,289 27,297
10% 10.0% 13,644 13,696
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,825
Calibration 2     134,213
Calibration 3     134,049
ssj_ops@calibrated=134,131
100% 99.3% 134,131 133,183
90% 91.2% 120,718 122,351
80% 80.0% 107,305 107,288
70% 69.6% 93,892 93,388
60% 59.9% 80,479 80,385
50% 49.8% 67,065 66,801
40% 40.2% 53,652 53,866
30% 30.4% 40,239 40,820
20% 20.2% 26,826 27,037
10% 9.9% 13,413 13,333
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,580
Calibration 2     135,021
Calibration 3     134,384
ssj_ops@calibrated=134,703
100% 99.5% 134,703 134,003
90% 90.9% 121,232 122,387
80% 79.7% 107,762 107,410
70% 69.6% 94,292 93,774
60% 60.7% 80,822 81,704
50% 49.8% 67,351 67,040
40% 39.8% 53,881 53,673
30% 29.8% 40,411 40,109
20% 19.6% 26,941 26,449
10% 9.7% 13,470 13,102
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,877
Calibration 2     132,082
Calibration 3     132,030
ssj_ops@calibrated=132,056
100% 99.6% 132,056 131,515
90% 92.7% 118,850 122,424
80% 79.9% 105,645 105,490
70% 69.4% 92,439 91,683
60% 59.8% 79,234 79,016
50% 50.5% 66,028 66,625
40% 39.3% 52,822 51,938
30% 30.0% 39,617 39,599
20% 20.2% 26,411 26,679
10% 10.3% 13,206 13,554
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,940
Calibration 2     133,200
Calibration 3     132,999
ssj_ops@calibrated=133,099
100% 99.9% 133,099 132,936
90% 91.4% 119,790 121,662
80% 80.2% 106,480 106,789
70% 70.1% 93,170 93,344
60% 60.3% 79,860 80,296
50% 50.2% 66,550 66,797
40% 39.7% 53,240 52,814
30% 29.5% 39,930 39,297
20% 20.0% 26,620 26,591
10% 9.8% 13,310 13,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,027
Calibration 2     136,421
Calibration 3     135,899
ssj_ops@calibrated=136,160
100% 99.7% 136,160 135,741
90% 91.7% 122,544 124,792
80% 79.8% 108,928 108,625
70% 69.9% 95,312 95,149
60% 59.8% 81,696 81,404
50% 49.7% 68,080 67,616
40% 40.5% 54,464 55,210
30% 30.0% 40,848 40,808
20% 19.6% 27,232 26,725
10% 9.9% 13,616 13,499
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,080
Calibration 2     131,458
Calibration 3     131,477
ssj_ops@calibrated=131,467
100% 100.3% 131,467 131,810
90% 90.5% 118,321 118,964
80% 80.3% 105,174 105,520
70% 70.1% 92,027 92,148
60% 60.3% 78,880 79,256
50% 50.0% 65,734 65,689
40% 39.8% 52,587 52,283
30% 29.7% 39,440 39,094
20% 20.1% 26,293 26,461
10% 10.1% 13,147 13,303
Active Idle   0 0

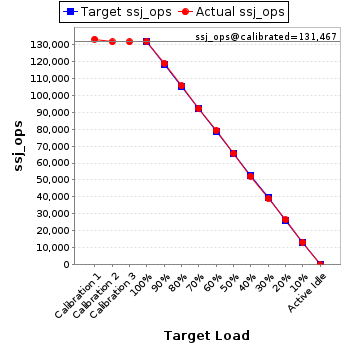

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,206
Calibration 2     132,258
Calibration 3     132,293
ssj_ops@calibrated=132,275
100% 99.6% 132,275 131,805
90% 91.2% 119,048 120,589
80% 79.7% 105,820 105,399
70% 69.9% 92,593 92,425
60% 60.3% 79,365 79,821
50% 50.1% 66,138 66,321
40% 40.4% 52,910 53,454
30% 30.3% 39,683 40,136
20% 20.0% 26,455 26,513
10% 9.9% 13,228 13,100
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,752
Calibration 2     133,056
Calibration 3     132,915
ssj_ops@calibrated=132,985
100% 100.1% 132,985 133,110
90% 92.3% 119,687 122,737
80% 79.5% 106,388 105,737
70% 69.6% 93,090 92,539
60% 60.2% 79,791 80,064
50% 49.7% 66,493 66,136
40% 40.1% 53,194 53,353
30% 29.6% 39,896 39,403
20% 19.9% 26,597 26,469
10% 9.8% 13,299 13,070
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,065
Calibration 2     134,163
Calibration 3     133,942
ssj_ops@calibrated=134,052
100% 99.8% 134,052 133,837
90% 90.9% 120,647 121,789
80% 79.8% 107,242 106,975
70% 69.6% 93,837 93,297
60% 60.3% 80,431 80,820
50% 50.3% 67,026 67,456
40% 39.9% 53,621 53,465
30% 29.8% 40,216 39,946
20% 20.3% 26,810 27,214
10% 9.8% 13,405 13,127
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,982
Calibration 2     134,480
Calibration 3     134,089
ssj_ops@calibrated=134,285
100% 99.4% 134,285 133,516
90% 91.7% 120,856 123,164
80% 79.9% 107,428 107,247
70% 69.9% 93,999 93,805
60% 60.2% 80,571 80,857
50% 49.8% 67,142 66,813
40% 40.1% 53,714 53,873
30% 30.1% 40,285 40,378
20% 19.7% 26,857 26,520
10% 9.9% 13,428 13,337
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,279
Calibration 2     132,325
Calibration 3     132,451
ssj_ops@calibrated=132,388
100% 99.7% 132,388 131,991
90% 91.4% 119,149 120,938
80% 80.1% 105,911 106,090
70% 70.6% 92,672 93,401
60% 60.1% 79,433 79,625
50% 50.1% 66,194 66,305
40% 39.2% 52,955 51,928
30% 29.8% 39,716 39,503
20% 19.7% 26,478 26,018
10% 10.0% 13,239 13,300
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,507
Calibration 2     132,637
Calibration 3     131,983
ssj_ops@calibrated=132,310
100% 100.1% 132,310 132,415
90% 91.5% 119,079 121,090
80% 80.6% 105,848 106,642
70% 70.1% 92,617 92,687
60% 59.8% 79,386 79,163
50% 50.4% 66,155 66,707
40% 40.0% 52,924 52,959
30% 30.8% 39,693 40,730
20% 20.2% 26,462 26,788
10% 10.0% 13,231 13,204
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,338
Calibration 2     132,337
Calibration 3     132,044
ssj_ops@calibrated=132,190
100% 100.3% 132,190 132,560
90% 91.5% 118,971 120,928
80% 79.7% 105,752 105,371
70% 70.5% 92,533 93,199
60% 59.9% 79,314 79,117
50% 50.0% 66,095 66,047
40% 40.1% 52,876 53,019
30% 30.1% 39,657 39,790
20% 20.0% 26,438 26,417
10% 10.1% 13,219 13,299
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,627
Calibration 2     132,949
Calibration 3     132,919
ssj_ops@calibrated=132,934
100% 100.1% 132,934 133,046
90% 90.4% 119,641 120,109
80% 80.7% 106,347 107,241
70% 70.6% 93,054 93,838
60% 59.5% 79,761 79,139
50% 50.1% 66,467 66,610
40% 40.3% 53,174 53,594
30% 30.0% 39,880 39,905
20% 19.8% 26,587 26,348
10% 9.9% 13,293 13,118
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,716
Calibration 2     135,603
Calibration 3     135,522
ssj_ops@calibrated=135,563
100% 99.6% 135,563 134,982
90% 91.3% 122,006 123,774
80% 80.4% 108,450 109,021
70% 69.4% 94,894 94,050
60% 60.3% 81,338 81,759
50% 50.1% 67,781 67,945
40% 40.2% 54,225 54,500
30% 30.3% 40,669 41,020
20% 20.1% 27,113 27,239
10% 10.0% 13,556 13,514
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,209
Calibration 2     134,591
Calibration 3     133,788
ssj_ops@calibrated=134,189
100% 99.6% 134,189 133,655
90% 91.2% 120,770 122,341
80% 79.9% 107,351 107,180
70% 70.3% 93,932 94,280
60% 59.8% 80,514 80,258
50% 49.8% 67,095 66,851
40% 39.8% 53,676 53,398
30% 29.9% 40,257 40,094
20% 20.1% 26,838 26,915
10% 9.8% 13,419 13,172
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,609
Calibration 2     135,367
Calibration 3     135,340
ssj_ops@calibrated=135,354
100% 99.9% 135,354 135,270
90% 92.0% 121,818 124,542
80% 80.0% 108,283 108,305
70% 70.4% 94,748 95,268
60% 59.7% 81,212 80,761
50% 50.0% 67,677 67,710
40% 39.7% 54,141 53,792
30% 30.2% 40,606 40,820
20% 20.2% 27,071 27,287
10% 9.7% 13,535 13,148
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,563
Calibration 2     134,930
Calibration 3     135,082
ssj_ops@calibrated=135,006
100% 99.9% 135,006 134,833
90% 91.1% 121,505 122,997
80% 80.0% 108,005 108,027
70% 70.0% 94,504 94,557
60% 59.9% 81,004 80,841
50% 50.0% 67,503 67,553
40% 40.0% 54,002 53,981
30% 30.0% 40,502 40,565
20% 20.0% 27,001 26,952
10% 10.3% 13,501 13,852
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,477
Calibration 2     133,749
Calibration 3     133,295
ssj_ops@calibrated=133,522
100% 99.5% 133,522 132,829
90% 91.6% 120,170 122,323
80% 80.4% 106,818 107,372
70% 69.9% 93,465 93,358
60% 59.6% 80,113 79,550
50% 50.5% 66,761 67,386
40% 40.2% 53,409 53,694
30% 30.1% 40,057 40,177
20% 20.0% 26,704 26,648
10% 9.8% 13,352 13,115
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,526
Calibration 2     133,591
Calibration 3     133,001
ssj_ops@calibrated=133,296
100% 99.6% 133,296 132,774
90% 92.8% 119,966 123,708
80% 79.9% 106,637 106,551
70% 70.0% 93,307 93,353
60% 59.2% 79,978 78,908
50% 49.4% 66,648 65,914
40% 40.7% 53,318 54,224
30% 29.9% 39,989 39,873
20% 19.8% 26,659 26,434
10% 9.9% 13,330 13,152
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,830
Calibration 2     136,399
Calibration 3     135,351
ssj_ops@calibrated=135,875
100% 99.3% 135,875 134,964
90% 91.0% 122,287 123,653
80% 81.1% 108,700 110,129
70% 69.8% 95,112 94,847
60% 60.1% 81,525 81,707
50% 50.1% 67,937 68,080
40% 40.1% 54,350 54,513
30% 30.0% 40,762 40,788
20% 19.5% 27,175 26,548
10% 9.9% 13,587 13,385
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,826
Calibration 2     134,648
Calibration 3     134,660
ssj_ops@calibrated=134,654
100% 100.3% 134,654 135,033
90% 91.8% 121,189 123,576
80% 80.8% 107,724 108,799
70% 70.5% 94,258 94,930
60% 60.2% 80,793 81,077
50% 50.1% 67,327 67,493
40% 40.2% 53,862 54,129
30% 29.6% 40,396 39,834
20% 19.9% 26,931 26,857
10% 10.0% 13,465 13,505
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,863
Calibration 2     131,603
Calibration 3     131,132
ssj_ops@calibrated=131,368
100% 99.9% 131,368 131,221
90% 92.0% 118,231 120,868
80% 80.7% 105,094 106,028
70% 70.2% 91,957 92,246
60% 60.5% 78,821 79,506
50% 50.4% 65,684 66,178
40% 40.8% 52,547 53,543
30% 30.1% 39,410 39,566
20% 20.1% 26,274 26,419
10% 10.0% 13,137 13,075
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,437
Calibration 2     131,041
Calibration 3     130,781
ssj_ops@calibrated=130,911
100% 99.6% 130,911 130,443
90% 91.5% 117,820 119,756
80% 80.2% 104,729 104,933
70% 70.3% 91,638 92,045
60% 59.8% 78,547 78,327
50% 50.0% 65,456 65,420
40% 39.3% 52,365 51,386
30% 29.9% 39,273 39,128
20% 19.6% 26,182 25,663
10% 9.9% 13,091 12,987
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

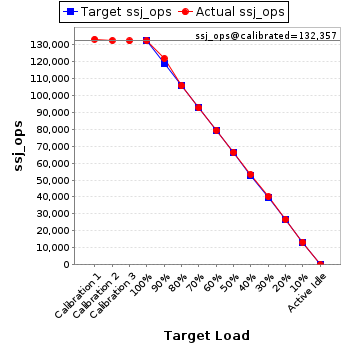

JVM 'WIN-QKBL1DI75TG.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,253
Calibration 2     132,471
Calibration 3     132,243
ssj_ops@calibrated=132,357
100% 100.0% 132,357 132,384
90% 92.1% 119,121 121,873
80% 79.9% 105,885 105,748
70% 70.0% 92,650 92,665
60% 60.0% 79,414 79,379
50% 50.2% 66,178 66,457
40% 40.3% 52,943 53,342
30% 30.4% 39,707 40,191
20% 20.2% 26,471 26,774
10% 10.1% 13,236 13,367
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

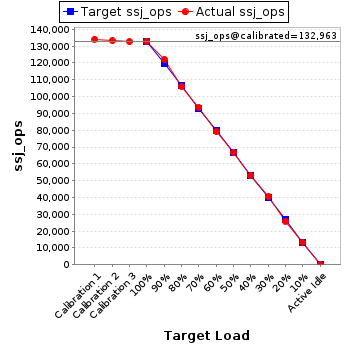

JVM 'WIN-QKBL1DI75TG.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,121
Calibration 2     133,259
Calibration 3     132,668
ssj_ops@calibrated=132,963
100% 100.0% 132,963 132,954
90% 91.9% 119,667 122,166
80% 79.7% 106,371 105,988
70% 70.4% 93,074 93,598
60% 59.6% 79,778 79,216
50% 50.1% 66,482 66,623
40% 39.9% 53,185 53,086
30% 30.5% 39,889 40,549
20% 19.5% 26,593 25,867
10% 10.0% 13,296 13,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,114
Calibration 2     135,336
Calibration 3     134,679
ssj_ops@calibrated=135,007
100% 99.8% 135,007 134,728
90% 91.5% 121,507 123,501
80% 80.6% 108,006 108,779
70% 69.9% 94,505 94,307
60% 59.5% 81,004 80,348
50% 50.5% 67,504 68,244
40% 40.3% 54,003 54,362
30% 29.8% 40,502 40,233
20% 19.7% 27,001 26,632
10% 9.7% 13,501 13,075
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,859
Calibration 2     134,272
Calibration 3     134,186
ssj_ops@calibrated=134,229
100% 99.8% 134,229 133,951
90% 91.8% 120,806 123,186
80% 80.7% 107,383 108,361
70% 69.8% 93,960 93,700
60% 59.8% 80,538 80,227
50% 49.6% 67,115 66,551
40% 40.4% 53,692 54,172
30% 30.4% 40,269 40,839
20% 19.9% 26,846 26,766
10% 10.4% 13,423 13,910
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,274
Calibration 2     134,621
Calibration 3     134,418
ssj_ops@calibrated=134,519
100% 100.0% 134,519 134,504
90% 92.7% 121,067 124,669
80% 80.4% 107,615 108,097
70% 70.3% 94,164 94,500
60% 59.7% 80,712 80,306
50% 50.0% 67,260 67,276
40% 40.3% 53,808 54,243
30% 30.4% 40,356 40,834
20% 20.2% 26,904 27,142
10% 10.0% 13,452 13,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,189
Calibration 2     135,887
Calibration 3     135,413
ssj_ops@calibrated=135,650
100% 99.6% 135,650 135,155
90% 91.8% 122,085 124,475
80% 80.1% 108,520 108,624
70% 70.1% 94,955 95,029
60% 59.6% 81,390 80,842
50% 49.7% 67,825 67,409
40% 40.1% 54,260 54,423
30% 29.3% 40,695 39,794
20% 19.5% 27,130 26,478
10% 10.1% 13,565 13,725
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,464
Calibration 2     134,190
Calibration 3     134,417
ssj_ops@calibrated=134,303
100% 99.7% 134,303 133,967
90% 91.6% 120,873 122,963
80% 79.8% 107,443 107,172
70% 69.2% 94,012 92,892
60% 60.4% 80,582 81,054
50% 49.0% 67,152 65,848
40% 40.1% 53,721 53,920
30% 30.3% 40,291 40,661
20% 20.1% 26,861 26,988
10% 9.9% 13,430 13,346
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,813
Calibration 2     135,720
Calibration 3     135,483
ssj_ops@calibrated=135,602
100% 99.2% 135,602 134,498
90% 91.6% 122,042 124,192
80% 81.1% 108,482 109,932
70% 69.9% 94,921 94,833
60% 59.7% 81,361 80,898
50% 50.3% 67,801 68,154
40% 40.2% 54,241 54,503
30% 29.6% 40,681 40,188
20% 19.8% 27,120 26,896
10% 9.8% 13,560 13,282
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,597
Calibration 2     134,291
Calibration 3     134,628
ssj_ops@calibrated=134,459
100% 99.7% 134,459 134,061
90% 90.1% 121,014 121,180
80% 80.6% 107,568 108,357
70% 70.7% 94,122 95,120
60% 60.3% 80,676 81,077
50% 50.6% 67,230 68,074
40% 39.5% 53,784 53,156
30% 30.2% 40,338 40,572
20% 20.2% 26,892 27,159
10% 10.1% 13,446 13,601
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

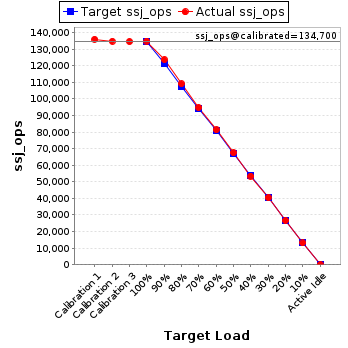

JVM 'WIN-QKBL1DI75TG.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,004
Calibration 2     134,832
Calibration 3     134,567
ssj_ops@calibrated=134,700
100% 100.1% 134,700 134,894
90% 91.8% 121,230 123,709
80% 81.0% 107,760 109,070
70% 70.4% 94,290 94,816
60% 60.5% 80,820 81,434
50% 50.1% 67,350 67,433
40% 39.7% 53,880 53,447
30% 30.0% 40,410 40,403
20% 19.8% 26,940 26,705
10% 9.7% 13,470 13,091
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,362
Calibration 2     136,548
Calibration 3     136,356
ssj_ops@calibrated=136,452
100% 99.8% 136,452 136,193
90% 91.2% 122,807 124,436
80% 81.3% 109,161 110,996
70% 69.2% 95,516 94,440
60% 60.0% 81,871 81,821
50% 50.5% 68,226 68,862
40% 40.2% 54,581 54,862
30% 29.9% 40,936 40,746
20% 20.2% 27,290 27,514
10% 9.7% 13,645 13,249
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,200
Calibration 2     134,896
Calibration 3     134,914
ssj_ops@calibrated=134,905
100% 100.2% 134,905 135,141
90% 92.3% 121,415 124,503
80% 79.6% 107,924 107,387
70% 70.5% 94,434 95,175
60% 60.4% 80,943 81,438
50% 49.9% 67,453 67,277
40% 39.7% 53,962 53,587
30% 29.7% 40,472 40,078
20% 20.3% 26,981 27,320
10% 9.9% 13,491 13,369
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,754
Calibration 2     132,874
Calibration 3     132,854
ssj_ops@calibrated=132,864
100% 99.5% 132,864 132,169
90% 91.1% 119,578 121,037
80% 81.4% 106,291 108,129
70% 70.3% 93,005 93,448
60% 59.4% 79,718 78,888
50% 49.7% 66,432 66,097
40% 40.4% 53,146 53,677
30% 30.5% 39,859 40,548
20% 20.1% 26,573 26,702
10% 10.0% 13,286 13,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,059
Calibration 2     132,824
Calibration 3     132,534
ssj_ops@calibrated=132,679
100% 99.4% 132,679 131,942
90% 90.8% 119,411 120,475
80% 80.0% 106,143 106,127
70% 69.9% 92,875 92,804
60% 60.0% 79,607 79,580
50% 49.9% 66,340 66,230
40% 39.8% 53,072 52,836
30% 30.0% 39,804 39,763
20% 20.1% 26,536 26,675
10% 10.4% 13,268 13,750
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,891
Calibration 2     134,265
Calibration 3     133,633
ssj_ops@calibrated=133,949
100% 100.1% 133,949 134,069
90% 91.0% 120,554 121,843
80% 80.3% 107,159 107,522
70% 69.8% 93,764 93,540
60% 60.1% 80,369 80,472
50% 50.0% 66,974 66,914
40% 39.9% 53,580 53,507
30% 30.5% 40,185 40,891
20% 19.8% 26,790 26,459
10% 10.2% 13,395 13,650
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,993
Calibration 2     134,582
Calibration 3     133,824
ssj_ops@calibrated=134,203
100% 99.5% 134,203 133,514
90% 92.1% 120,783 123,537
80% 80.6% 107,363 108,107
70% 69.4% 93,942 93,116
60% 59.9% 80,522 80,330
50% 50.1% 67,102 67,254
40% 40.0% 53,681 53,691
30% 30.2% 40,261 40,535
20% 19.9% 26,841 26,727
10% 10.0% 13,420 13,435
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,254
Calibration 2     135,746
Calibration 3     135,124
ssj_ops@calibrated=135,435
100% 100.0% 135,435 135,392
90% 92.3% 121,892 124,942
80% 78.9% 108,348 106,918
70% 70.2% 94,805 95,038
60% 60.4% 81,261 81,810
50% 50.0% 67,718 67,704
40% 41.0% 54,174 55,525
30% 29.6% 40,631 40,028
20% 19.8% 27,087 26,786
10% 9.9% 13,544 13,366
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,303
Calibration 2     133,877
Calibration 3     134,012
ssj_ops@calibrated=133,944
100% 100.0% 133,944 133,932
90% 91.7% 120,550 122,805
80% 80.4% 107,155 107,694
70% 69.5% 93,761 93,051
60% 60.5% 80,367 81,092
50% 49.1% 66,972 65,814
40% 39.5% 53,578 52,904
30% 29.8% 40,183 39,975
20% 20.2% 26,789 27,052
10% 10.1% 13,394 13,592
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,607
Calibration 2     133,287
Calibration 3     132,904
ssj_ops@calibrated=133,096
100% 100.0% 133,096 133,096
90% 90.4% 119,786 120,343
80% 79.9% 106,477 106,337
70% 69.7% 93,167 92,777
60% 60.1% 79,858 79,980
50% 50.3% 66,548 66,973
40% 39.2% 53,238 52,135
30% 29.5% 39,929 39,242
20% 19.8% 26,619 26,308
10% 9.9% 13,310 13,221
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,054
Calibration 2     133,530
Calibration 3     133,277
ssj_ops@calibrated=133,404
100% 100.2% 133,404 133,678
90% 90.7% 120,063 120,937
80% 80.2% 106,723 107,005
70% 70.4% 93,383 93,880
60% 59.8% 80,042 79,767
50% 50.8% 66,702 67,806
40% 40.3% 53,361 53,776
30% 30.2% 40,021 40,340
20% 20.0% 26,681 26,622
10% 9.7% 13,340 12,948
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,221
Calibration 2     134,420
Calibration 3     134,477
ssj_ops@calibrated=134,448
100% 99.8% 134,448 134,129
90% 91.4% 121,004 122,854
80% 80.6% 107,559 108,304
70% 69.3% 94,114 93,184
60% 60.9% 80,669 81,873
50% 49.5% 67,224 66,505
40% 40.3% 53,779 54,124
30% 30.0% 40,335 40,315
20% 20.2% 26,890 27,134
10% 9.7% 13,445 13,020
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,625
Calibration 2     136,437
Calibration 3     136,196
ssj_ops@calibrated=136,317
100% 100.2% 136,317 136,552
90% 91.9% 122,685 125,297
80% 81.0% 109,053 110,359
70% 70.3% 95,422 95,774
60% 59.9% 81,790 81,662
50% 50.4% 68,158 68,754
40% 39.3% 54,527 53,569
30% 30.4% 40,895 41,470
20% 19.7% 27,263 26,911
10% 9.9% 13,632 13,454
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,848
Calibration 2     134,892
Calibration 3     134,560
ssj_ops@calibrated=134,726
100% 100.2% 134,726 135,061
90% 92.1% 121,253 124,019
80% 78.8% 107,781 106,198
70% 70.2% 94,308 94,625
60% 59.7% 80,836 80,376
50% 50.2% 67,363 67,634
40% 40.0% 53,890 53,888
30% 29.9% 40,418 40,336
20% 20.3% 26,945 27,413
10% 10.1% 13,473 13,586
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,304
Calibration 2     133,252
Calibration 3     133,590
ssj_ops@calibrated=133,421
100% 99.7% 133,421 132,961
90% 91.5% 120,079 122,116
80% 79.8% 106,737 106,409
70% 69.6% 93,395 92,879
60% 60.1% 80,052 80,166
50% 49.2% 66,710 65,624
40% 40.4% 53,368 53,903
30% 29.6% 40,026 39,446
20% 20.3% 26,684 27,061
10% 10.2% 13,342 13,641
Active Idle   0 0

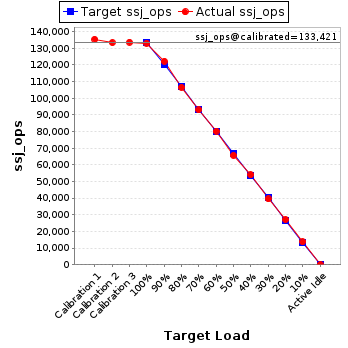

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,761
Calibration 2     137,810
Calibration 3     138,501
ssj_ops@calibrated=138,155
100% 99.8% 138,155 137,844
90% 90.9% 124,340 125,605
80% 79.7% 110,524 110,138
70% 70.0% 96,709 96,663
60% 60.0% 82,893 82,953
50% 49.6% 69,078 68,499
40% 39.8% 55,262 55,012
30% 29.5% 41,447 40,757
20% 19.9% 27,631 27,458
10% 10.1% 13,816 13,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,702
Calibration 2     134,112
Calibration 3     134,294
ssj_ops@calibrated=134,203
100% 100.1% 134,203 134,369
90% 91.3% 120,783 122,472
80% 80.0% 107,362 107,320
70% 70.8% 93,942 95,037
60% 60.0% 80,522 80,562
50% 50.5% 67,101 67,710
40% 40.4% 53,681 54,261
30% 30.2% 40,261 40,472
20% 20.0% 26,841 26,866
10% 9.9% 13,420 13,317
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,870
Calibration 2     137,312
Calibration 3     137,064
ssj_ops@calibrated=137,188
100% 100.0% 137,188 137,237
90% 90.2% 123,469 123,697
80% 80.4% 109,750 110,274
70% 69.7% 96,032 95,687
60% 60.3% 82,313 82,730
50% 49.4% 68,594 67,743
40% 40.7% 54,875 55,785
30% 30.2% 41,156 41,440
20% 20.5% 27,438 28,127
10% 9.9% 13,719 13,632
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,360
Calibration 2     134,486
Calibration 3     134,953
ssj_ops@calibrated=134,720
100% 99.3% 134,720 133,764
90% 91.1% 121,248 122,686
80% 79.8% 107,776 107,488
70% 69.6% 94,304 93,775
60% 60.1% 80,832 80,994
50% 50.1% 67,360 67,478
40% 39.7% 53,888 53,476
30% 30.2% 40,416 40,704
20% 20.2% 26,944 27,189
10% 9.8% 13,472 13,228
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,520
Calibration 2     133,604
Calibration 3     133,511
ssj_ops@calibrated=133,557
100% 100.2% 133,557 133,890
90% 91.4% 120,202 122,099
80% 80.9% 106,846 107,987
70% 69.6% 93,490 92,975
60% 59.8% 80,134 79,915
50% 49.6% 66,779 66,251
40% 39.9% 53,423 53,312
30% 29.8% 40,067 39,799
20% 20.0% 26,711 26,649
10% 10.2% 13,356 13,621
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,677
Calibration 2     133,841
Calibration 3     134,063
ssj_ops@calibrated=133,952
100% 99.6% 133,952 133,413
90% 91.8% 120,557 122,962
80% 79.4% 107,162 106,403
70% 70.3% 93,766 94,218
60% 60.1% 80,371 80,518
50% 49.8% 66,976 66,660
40% 40.3% 53,581 54,017
30% 29.5% 40,186 39,498
20% 20.5% 26,790 27,437
10% 10.2% 13,395 13,676
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,675
Calibration 2     133,205
Calibration 3     132,936
ssj_ops@calibrated=133,071
100% 100.0% 133,071 133,125
90% 91.5% 119,764 121,792
80% 79.9% 106,457 106,305
70% 69.6% 93,149 92,657
60% 60.7% 79,842 80,777
50% 49.2% 66,535 65,534
40% 39.9% 53,228 53,092
30% 30.0% 39,921 39,979
20% 19.8% 26,614 26,307
10% 10.0% 13,307 13,340
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QKBL1DI75TG.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,624
Calibration 2     131,815
Calibration 3     131,312
ssj_ops@calibrated=131,563
100% 100.2% 131,563 131,775
90% 91.1% 118,407 119,904
80% 79.9% 105,250 105,092
70% 70.4% 92,094 92,622
60% 60.7% 78,938 79,872
50% 49.5% 65,782 65,167
40% 39.9% 52,625 52,507
30% 29.8% 39,469 39,263
20% 20.0% 26,313 26,366
10% 10.1% 13,156 13,225
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
