Lenovo Global Technology Think System SR635 V3 SPECpower_ssj2008 = 30,939 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 22, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jul 7, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 12,765,755 341 37,405
90% 90.1% 11,553,276 317 36,476
80% 80.1% 10,274,597 275 37,332
70% 69.6% 8,932,688 242 36,969
60% 59.6% 7,644,056 224 34,161
50% 50.1% 6,420,426 202 31,715
40% 40.0% 5,127,315 185 27,763
30% 29.9% 3,840,997 165 23,342
20% 20.0% 2,564,313 143 17,918
10% 10.0% 1,280,868 120 10,634
Active Idle 0 61.7 0
∑ssj_ops / ∑power = 30,939
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR635 V3
Form Factor: 1U
CPU Name: AMD EPYC 9754 2.25GHz
CPU Characteristics: 128-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 128 cores, 1 chip, 128 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 12 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:4P57A82019
Disk Drive: 1 x 960GB M.2 SSD P/N:4XB7A13999 M.2 Module P/N:4Y37A79663
Disk Controller: Integrated NVME controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 128, physicalCoreId + 129 }
JVM Instances: 64
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: KAE111F
Management Firmware Version: KAX317D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Lenovo System x3650 M5
CPU Description: 2 x Intel Xeon CPU E5-2699A V4
Memory amount (GB): 384
Software
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter - Version 6.3.9600 (Build 9600)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31010E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202210116758A-0004
Date of Calibration: 19-Oct-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 341 22.1
90% 317 21.4
80% 275 21.4
70% 242 21.9
60% 224 22.1
50% 202 22.2
40% 185 22.3
30% 165 22.2
20% 143 22.1
10% 120 22.0
Active Idle 61.7 21.9
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 21.4 43
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,859,993
Calibration 2     12,826,790
Calibration 3     12,826,053
ssj_ops@calibrated=12,826,421
100% 99.5% 12,826,421 12,765,755
90% 90.1% 11,543,779 11,553,276
80% 80.1% 10,261,137 10,274,597
70% 69.6% 8,978,495 8,932,688
60% 59.6% 7,695,853 7,644,056
50% 50.1% 6,413,211 6,420,426
40% 40.0% 5,130,568 5,127,315
30% 29.9% 3,847,926 3,840,997
20% 20.0% 2,565,284 2,564,313
10% 10.0% 1,282,642 1,280,868
Active Idle   0 0

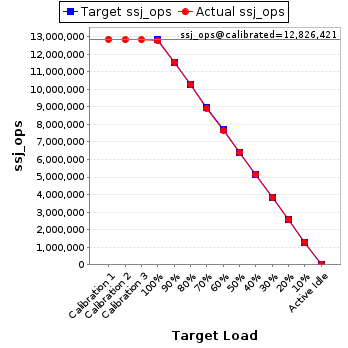

Graph of results
See the Host Performance Report for additional details.
