Lenovo Global Technology Think System SR635 V3 SPECpower_ssj2008 = 30,939 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 22, 2023
Hardware Availability: Aug-2023 Software Availability: Jun-2022 Publication: Jul 7, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 340 23.2
Calibration 2 343 23.2
Calibration 3 343 22.9
100% 341 22.1
90% 317 21.4
80% 275 21.4
70% 242 21.9
60% 224 22.1
50% 202 22.2
40% 185 22.3
30% 165 22.2
20% 143 22.1
10% 120 22.0
Active Idle 61.7 21.9

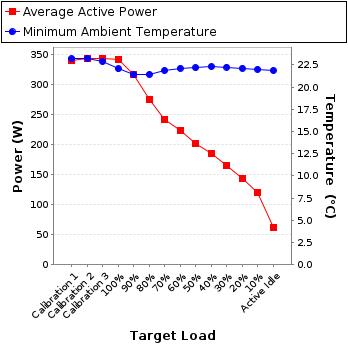

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31010E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202210116758A-0004
Date of Calibration: 19-Oct-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 1.56 5.0 0.989 340 0.4%
Calibration 2 220 300.0 1.58 5.0 0.990 343 0.4%
Calibration 3 220 300.0 1.58 5.0 0.990 343 0.4%
100% 220 300.0 1.57 5.0 0.990 341 0.4%
90% 220 300.0 1.46 5.0 0.989 317 0.4%
80% 220 300.0 1.27 5.0 0.987 275 0.4%
70% 220 300.0 1.12 5.0 0.984 242 0.4%
60% 220 300.0 1.04 5.0 0.982 224 0.5%
50% 220 300.0 0.941 5.0 0.978 202 0.5%
40% 220 300.0 0.862 5.0 0.973 185 0.5%
30% 220 300.0 0.764 5.0 0.979 165 0.6%
20% 220 300.0 0.669 2.0 0.972 143 0.4%
10% 220 300.0 0.570 2.0 0.960 120 0.4%
Active Idle 220 300.0 0.328 2.0 0.859 61.7 0.6%

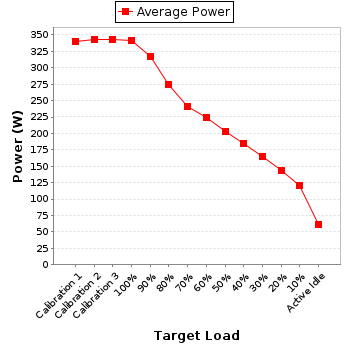

Power details for pwr1
