SPECpower_ssj2008

Lenovo Global Technology Think System SR635 V3			SPECpower_ssj2008 = 25,945 overall ssj_ops/watt
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	Feb 28, 2023
Hardware Availability:	Apr-2023	Software Availability:	Jun-2022	Publication:	Mar 15, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR635 V3
Form Factor:	1U
CPU Name:	AMD EPYC 9654 2.40GHz
CPU Characteristics:	96-Core, 2.40GHz, 384MB L3 Cache
CPU Frequency (MHz):	2400
CPU(s) Enabled:	96 cores, 1 chip, 96 cores/chip
Hardware Threads:	192 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	384 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16384 MB
Memory Details:	12 x 16GB 1Rx8 PC5-4800B-RD0; slots 1 to 12 populated
Power Supply Quantity and Rating (W):	1 x 750
Power Supply Details:	Lenovo P/N:4P57A82019
Disk Drive:	1 x 960GB M.2 SSD P/N:4XB7A13999 M.2 Module P/N:4Y37A79663
Disk Controller:	Integrated NVME controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem Ethernet 1GbE 4-Port Adapter
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP4
OS Version:	5.14.21-150400.22-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.15.1+2-LTS-10, mixed mode), version 11.0.15.1
JVM Command-line Options:	-server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:LargePageSizeInBytes=2m
JVM Affinity:	for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 96, physicalCoreId + 97 }
JVM Instances:	48
JVM Initial Heap (MB):	1995
JVM Maximum Heap (MB):	1995
JVM Address Bits:	64
Boot Firmware Version:	KAE109A
Management Firmware Version:	KAX313A
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

none

Benchmark started via ssh
Each JVM instance was bound to 4 logical processors
cpupower frequency-set -g ondemand
kernal parameter:pcie_aspm=force pcie_aspm.policy=powersupersave
echo -n 98 > /sys/devices/system/cpu/cpufreq/ondemand/up_threshold
echo -n 1600000 > /sys/devices/system/cpu/cpufreq/ondemand/sampling_rate
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
The system ROM used for this result contains AMD AGESA version 0xa101111 for the AMD EPYC 9654 processor

Software
Operating System (OS):	Microsoft Windows Server 2019 DataCenter - Version 1809 (OS Build 17763.1217)
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.4+10-LTS, mixed mode)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	YOKOGAWA, Inc.
Model:	WT310E
Serial Number:	C3UD17025E
Connectivity:	USB
Input Connection:	Default
Metrology Institute:	China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by:	GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label:	J202210116758A-0001
Date of Calibration:	19-Oct-2022
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.10.0-82175bac-20220817
Setup Description:	Connected to PSU 1

SPECpower_ssj.props input.load_level.number_warehouses set to 192 due to a known inconsistency in processor reporting with this Java version.

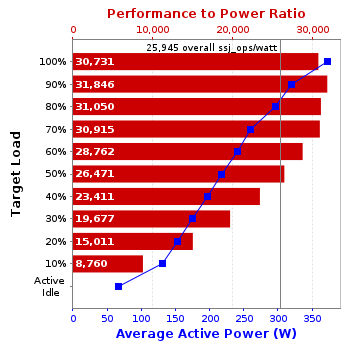

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	372	21.6
90%	319	21.5
80%	296	21.8
70%	260	22.1
60%	240	22.3
50%	217	22.2
40%	197	22.3
30%	175	22.3
20%	153	22.2
10%	131	22.2
Active Idle	66.9	22.2

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 2 wires	21.5	43

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
