Lenovo Global Technology Think System SR635 V3 SPECpower_ssj2008 = 25,945 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Feb 28, 2023
Hardware Availability: Apr-2023 Software Availability: Jun-2022 Publication: Mar 15, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 368 21.9
Calibration 2 373 22.1
Calibration 3 374 21.7
100% 372 21.6
90% 319 21.5
80% 296 21.8
70% 260 22.1
60% 240 22.3
50% 217 22.2
40% 197 22.3
30% 175 22.3
20% 153 22.2
10% 131 22.2
Active Idle 66.9 22.2

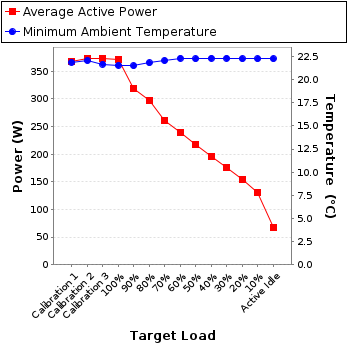

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UD17025E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202210116758A-0001
Date of Calibration: 19-Oct-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 1.70 2.0 0.988 368 0.2%
Calibration 2 219 300.0 1.72 2.0 0.989 373 0.2%
Calibration 3 219 300.0 1.72 2.0 0.989 374 0.2%
100% 219 300.0 1.72 2.0 0.989 372 0.2%
90% 219 300.0 1.48 2.0 0.983 319 0.2%
80% 219 300.0 1.38 2.0 0.982 296 0.2%
70% 219 300.0 1.21 2.0 0.978 260 0.3%
60% 219 300.0 1.12 2.0 0.974 240 0.3%
50% 219 300.0 1.02 2.0 0.970 217 0.3%
40% 220 300.0 0.930 2.0 0.964 197 0.3%
30% 220 300.0 0.836 2.0 0.955 175 0.3%
20% 220 300.0 0.730 1.0 0.956 153 0.3%
10% 220 300.0 0.634 1.0 0.941 131 0.3%
Active Idle 220 300.0 0.371 1.0 0.820 66.9 0.4%
Power details for pwr1
