Lenovo Global Technology ThinkSystem SN550 V2 ssj_ops@100% = 75,968,958
ssj_ops@100% per Host = 5,426,354
ssj_ops@100% per JVM = 84,787
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Apr 20, 2022
Hardware Availability: Jul-2021 Software Availability: Dec-2019 Publication: May 24, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,059,676
Calibration 2     76,267,081
Calibration 3     76,190,404
ssj_ops@calibrated=76,228,743
100% 99.7% 76,228,743 75,968,958
90% 89.9% 68,605,868 68,562,233
80% 79.8% 60,982,994 60,816,744
70% 70.0% 53,360,120 53,363,697
60% 60.0% 45,737,246 45,734,220
50% 50.0% 38,114,371 38,100,171
40% 40.0% 30,491,497 30,501,173
30% 30.0% 22,868,623 22,895,561
20% 20.0% 15,245,749 15,242,271
10% 10.0% 7,622,874 7,628,144
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
14 28 896 1,792 3,584 14 896
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Lenovo Flex System Enterprise Chassis with CMM2 (00FJ669) standard (Model 8721)
Form Factor: 10U
Power Supply Quantity and Rating (W): 6 x 2500
Power Supply Details: Flex System Enterprise Chassis 2500W Power Module (Lenovo P/N:43W9049)
Network Switch: Extreme Summit X670V
Network Switch Details: 48-PORT Extreme Summit X670V
KVM Switch: None
KVM Switch Details: None
Other Hardware: None
Comment: Network switch did not measure for Power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware per Node
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550 V2
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8352M
CPU Characteristics: 32 Core, 2.30GHz, 48MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 48 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16GB 2Rx8 PC4-3200AA-RE2-12-MH1; slots 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15 and 16 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Flex System CN4052S 2-port 10Gb Virtual Fabric Adapter P/N:00AG540
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.5+10-LTS, mixed mode)
JVM Command-line Options: -server -Xss256k -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 64, physicalCoreId + 65 }
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: U8E115M
Management Firmware Version: TGBT29S
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.
Host Instance Summary
Host ssj_ops@100%
linux-node1 5,443,626
linux-node10 5,460,250
linux-node11 5,423,692
linux-node12 5,432,865
linux-node13 5,468,831
linux-node14 5,416,694
linux-node2 5,457,313
linux-node3 5,417,578
linux-node4 5,418,283
linux-node5 5,446,116
linux-node6 5,403,446
linux-node7 5,397,304
linux-node8 5,405,862
linux-node9 5,377,098
ssj_ops@100% 75,968,958
ssj_ops@100% per Host 5,426,354
ssj_ops@100% per JVM 84,787

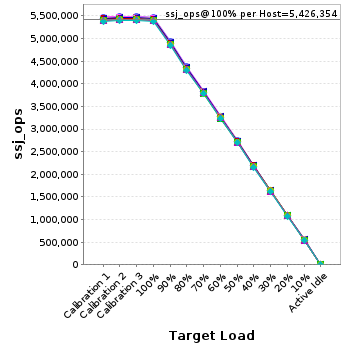

Graph of per-host results
Host 'linux-node1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,447,845
Calibration 2     5,466,496
Calibration 3     5,462,707
ssj_ops@calibrated=5,464,601
100% 99.6% 5,464,601 5,443,626
90% 90.0% 4,918,141 4,916,733
80% 79.9% 4,371,681 4,364,626
70% 69.9% 3,825,221 3,819,873
60% 60.1% 3,278,761 3,286,623
50% 49.9% 2,732,301 2,724,482
40% 40.0% 2,185,841 2,185,662
30% 30.0% 1,639,380 1,638,451
20% 20.0% 1,092,920 1,095,215
10% 10.0% 546,460 547,780
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'linux-node10' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,471,190
Calibration 2     5,484,274
Calibration 3     5,478,251
ssj_ops@calibrated=5,481,263
100% 99.6% 5,481,263 5,460,250
90% 89.9% 4,933,137 4,927,874
80% 79.8% 4,385,010 4,371,582
70% 69.9% 3,836,884 3,833,819
60% 60.0% 3,288,758 3,286,146
50% 50.0% 2,740,631 2,743,362
40% 40.0% 2,192,505 2,195,167
30% 30.0% 1,644,379 1,644,102
20% 20.0% 1,096,253 1,097,241
10% 10.0% 548,126 546,506
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'linux-node11' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,425,207
Calibration 2     5,445,936
Calibration 3     5,439,930
ssj_ops@calibrated=5,442,933
100% 99.6% 5,442,933 5,423,692
90% 90.0% 4,898,640 4,901,185
80% 79.8% 4,354,346 4,343,619
70% 69.9% 3,810,053 3,806,269
60% 60.1% 3,265,760 3,269,076
50% 50.0% 2,721,467 2,723,042
40% 40.0% 2,177,173 2,176,461
30% 30.2% 1,632,880 1,643,060
20% 20.0% 1,088,587 1,089,885
10% 10.0% 544,293 544,270
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'linux-node12' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,447,114
Calibration 2     5,453,916
Calibration 3     5,448,416
ssj_ops@calibrated=5,451,166
100% 99.7% 5,451,166 5,432,865
90% 89.9% 4,906,050 4,898,934
80% 79.8% 4,360,933 4,347,845
70% 70.0% 3,815,817 3,815,832
60% 60.0% 3,270,700 3,272,597
50% 50.0% 2,725,583 2,725,106
40% 40.0% 2,180,467 2,181,228
30% 30.0% 1,635,350 1,637,921
20% 20.0% 1,090,233 1,089,820
10% 10.0% 545,117 545,916
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'linux-node13' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,479,419
Calibration 2     5,490,319
Calibration 3     5,486,286
ssj_ops@calibrated=5,488,303
100% 99.6% 5,488,303 5,468,831
90% 89.9% 4,939,472 4,931,597
80% 79.8% 4,390,642 4,380,035
70% 70.0% 3,841,812 3,843,623
60% 60.0% 3,292,982 3,295,231
50% 50.1% 2,744,151 2,748,800
40% 40.0% 2,195,321 2,197,531
30% 30.0% 1,646,491 1,647,113
20% 19.9% 1,097,661 1,094,639
10% 10.0% 548,830 550,670
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'linux-node14' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,413,672
Calibration 2     5,433,738
Calibration 3     5,428,836
ssj_ops@calibrated=5,431,287
100% 99.7% 5,431,287 5,416,694
90% 90.1% 4,888,158 4,892,939
80% 79.8% 4,345,029 4,335,878
70% 70.0% 3,801,901 3,803,799
60% 60.1% 3,258,772 3,262,074
50% 50.0% 2,715,643 2,717,170
40% 40.0% 2,172,515 2,172,518
30% 30.0% 1,629,386 1,628,407
20% 20.0% 1,086,257 1,085,295
10% 10.0% 543,129 545,045
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'linux-node2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,458,851
Calibration 2     5,477,300
Calibration 3     5,472,066
ssj_ops@calibrated=5,474,683
100% 99.7% 5,474,683 5,457,313
90% 89.9% 4,927,215 4,920,540
80% 79.8% 4,379,746 4,367,969
70% 70.0% 3,832,278 3,834,761
60% 60.0% 3,284,810 3,282,638
50% 50.0% 2,737,342 2,735,455
40% 40.1% 2,189,873 2,194,913
30% 30.0% 1,642,405 1,642,079
20% 20.0% 1,094,937 1,097,539
10% 10.0% 547,468 548,788
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.

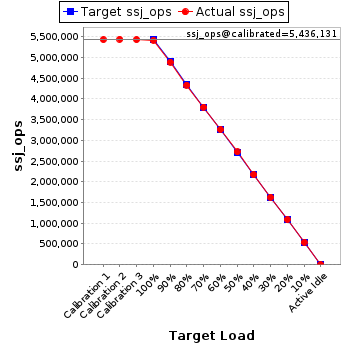

Host 'linux-node3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,431,077
Calibration 2     5,440,753
Calibration 3     5,431,509
ssj_ops@calibrated=5,436,131
100% 99.7% 5,436,131 5,417,578
90% 89.9% 4,892,518 4,888,952
80% 79.8% 4,348,905 4,335,615
70% 70.0% 3,805,292 3,804,107
60% 60.1% 3,261,679 3,264,475
50% 50.0% 2,718,065 2,719,942
40% 39.9% 2,174,452 2,170,434
30% 30.0% 1,630,839 1,630,681
20% 20.0% 1,087,226 1,088,012
10% 9.9% 543,613 540,857
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'linux-node4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,436,405
Calibration 2     5,448,000
Calibration 3     5,443,079
ssj_ops@calibrated=5,445,540
100% 99.5% 5,445,540 5,418,283
90% 90.0% 4,900,986 4,899,504
80% 79.8% 4,356,432 4,342,996
70% 70.0% 3,811,878 3,811,499
60% 59.9% 3,267,324 3,262,656
50% 50.0% 2,722,770 2,720,313
40% 40.1% 2,178,216 2,183,444
30% 30.1% 1,633,662 1,639,431
20% 20.0% 1,089,108 1,087,375
10% 10.0% 544,554 544,491
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'linux-node5' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,453,599
Calibration 2     5,463,995
Calibration 3     5,457,900
ssj_ops@calibrated=5,460,947
100% 99.7% 5,460,947 5,446,116
90% 90.0% 4,914,853 4,915,760
80% 79.8% 4,368,758 4,357,012
70% 70.1% 3,822,663 3,825,595
60% 60.0% 3,276,568 3,276,638
50% 49.9% 2,730,474 2,724,764
40% 40.1% 2,184,379 2,188,007
30% 30.0% 1,638,284 1,639,468
20% 20.0% 1,092,189 1,091,317
10% 10.0% 546,095 545,617
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'linux-node6' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,404,611
Calibration 2     5,420,205
Calibration 3     5,413,086
ssj_ops@calibrated=5,416,645
100% 99.8% 5,416,645 5,403,446
90% 90.0% 4,874,981 4,876,461
80% 79.8% 4,333,316 4,320,771
70% 70.0% 3,791,652 3,793,484
60% 59.9% 3,249,987 3,243,377
50% 50.0% 2,708,323 2,708,611
40% 40.0% 2,166,658 2,166,366
30% 30.0% 1,624,994 1,624,796
20% 20.0% 1,083,329 1,082,757
10% 10.0% 541,665 541,694
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'linux-node7' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,400,717
Calibration 2     5,416,390
Calibration 3     5,411,324
ssj_ops@calibrated=5,413,857
100% 99.7% 5,413,857 5,397,304
90% 89.9% 4,872,471 4,864,974
80% 79.8% 4,331,086 4,319,253
70% 70.0% 3,789,700 3,789,726
60% 60.0% 3,248,314 3,249,335
50% 49.9% 2,706,929 2,701,657
40% 40.1% 2,165,543 2,169,142
30% 30.1% 1,624,157 1,629,816
20% 20.0% 1,082,771 1,080,556
10% 10.0% 541,386 540,711
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'linux-node8' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,406,778
Calibration 2     5,424,446
Calibration 3     5,420,888
ssj_ops@calibrated=5,422,667
100% 99.7% 5,422,667 5,405,862
90% 90.0% 4,880,400 4,877,821
80% 79.8% 4,338,134 4,325,723
70% 70.1% 3,795,867 3,799,477
60% 59.9% 3,253,600 3,248,664
50% 49.9% 2,711,334 2,708,362
40% 39.9% 2,169,067 2,165,928
30% 30.0% 1,626,800 1,628,176
20% 20.0% 1,084,533 1,086,493
10% 10.0% 542,267 543,198
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'linux-node9' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,383,188
Calibration 2     5,401,312
Calibration 3     5,396,126
ssj_ops@calibrated=5,398,719
100% 99.6% 5,398,719 5,377,098
90% 89.8% 4,858,847 4,848,960
80% 79.7% 4,318,975 4,303,818
70% 70.1% 3,779,103 3,781,832
60% 59.9% 3,239,231 3,234,690
50% 50.0% 2,699,360 2,699,105
40% 39.9% 2,159,488 2,154,373
30% 30.0% 1,619,616 1,622,061
20% 19.9% 1,079,744 1,076,126
10% 10.1% 539,872 542,602
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
