Lenovo Global Technology ThinkSystem SN550 V2 ssj_ops@100% = 5,446,116
ssj_ops@100% per JVM = 85,096
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Apr 20, 2022
Hardware Availability: Jul-2021 Software Availability: Dec-2019 Publication: May 24, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,453,599
Calibration 2     5,463,995
Calibration 3     5,457,900
ssj_ops@calibrated=5,460,947
100% 99.7% 5,460,947 5,446,116
90% 90.0% 4,914,853 4,915,760
80% 79.8% 4,368,758 4,357,012
70% 70.1% 3,822,663 3,825,595
60% 60.0% 3,276,568 3,276,638
50% 49.9% 2,730,474 2,724,764
40% 40.1% 2,184,379 2,188,007
30% 30.0% 1,638,284 1,639,468
20% 20.0% 1,092,189 1,091,317
10% 10.0% 546,095 545,617
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550 V2
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8352M
CPU Characteristics: 32 Core, 2.30GHz, 48MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 48 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16GB 2Rx8 PC4-3200AA-RE2-12-MH1; slots 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15 and 16 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Flex System CN4052S 2-port 10Gb Virtual Fabric Adapter P/N:00AG540
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.5+10-LTS, mixed mode)
JVM Command-line Options: -server -Xss256k -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 64, physicalCoreId + 65 }
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: U8E115M
Management Firmware Version: TGBT29S
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
linux-node5.001 87,104
linux-node5.002 80,153
linux-node5.003 87,400
linux-node5.004 80,307
linux-node5.005 88,170
linux-node5.006 90,756
linux-node5.007 89,127
linux-node5.008 89,144
linux-node5.009 78,997
linux-node5.010 79,769
linux-node5.011 83,315
linux-node5.012 88,210
linux-node5.013 88,590
linux-node5.014 81,179
linux-node5.015 87,840
linux-node5.016 86,496
linux-node5.017 87,307
linux-node5.018 86,247
linux-node5.019 86,252
linux-node5.020 85,935
linux-node5.021 88,862
linux-node5.022 83,950
linux-node5.023 80,657
linux-node5.024 83,240
linux-node5.025 81,662
linux-node5.026 89,245
linux-node5.027 81,986
linux-node5.028 86,467
linux-node5.029 82,996
linux-node5.030 88,075
linux-node5.031 87,150
linux-node5.032 87,958
linux-node5.033 81,478
linux-node5.034 88,396
linux-node5.035 85,871
linux-node5.036 88,302
linux-node5.037 83,037
linux-node5.038 88,620
linux-node5.039 89,121
linux-node5.040 88,042
linux-node5.041 85,932
linux-node5.042 81,967
linux-node5.043 78,814
linux-node5.044 81,695
linux-node5.045 88,332
linux-node5.046 87,325
linux-node5.047 87,555
linux-node5.048 80,814
linux-node5.049 87,475
linux-node5.050 88,292
linux-node5.051 87,549
linux-node5.052 82,989
linux-node5.053 85,439
linux-node5.054 84,344
linux-node5.055 81,817
linux-node5.056 89,576
linux-node5.057 83,590
linux-node5.058 86,231
linux-node5.059 81,088
linux-node5.060 80,985
linux-node5.061 84,595
linux-node5.062 83,188
linux-node5.063 79,579
linux-node5.064 79,535
ssj_ops@100% 5,446,116
ssj_ops@100% per JVM 85,096

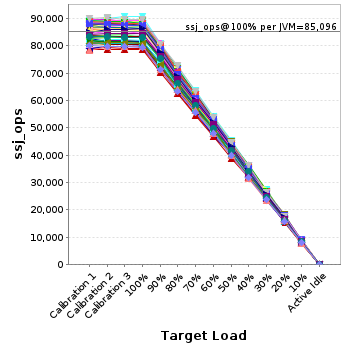

Graph of per-instance results
JVM 'linux-node5.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,661
Calibration 2     87,910
Calibration 3     87,588
ssj_ops@calibrated=87,749
100% 99.3% 87,749 87,104
90% 90.7% 78,974 79,587
80% 79.3% 70,199 69,608
70% 70.8% 61,424 62,098
60% 60.4% 52,649 52,962
50% 48.9% 43,875 42,891
40% 39.8% 35,100 34,922
30% 30.5% 26,325 26,758
20% 20.0% 17,550 17,549
10% 10.1% 8,775 8,874
Active Idle   0 0
Graph of results
JVM 'linux-node5.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,397
Calibration 2     80,721
Calibration 3     80,391
ssj_ops@calibrated=80,556
100% 99.5% 80,556 80,153
90% 89.1% 72,501 71,806
80% 79.8% 64,445 64,263
70% 70.6% 56,389 56,911
60% 60.7% 48,334 48,879
50% 50.3% 40,278 40,526
40% 39.3% 32,222 31,690
30% 30.0% 24,167 24,196
20% 19.9% 16,111 16,067
10% 10.3% 8,056 8,279
Active Idle   0 0
Graph of results
JVM 'linux-node5.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,137
Calibration 2     87,605
Calibration 3     87,446
ssj_ops@calibrated=87,525
100% 99.9% 87,525 87,400
90% 89.9% 78,773 78,672
80% 79.6% 70,020 69,696
70% 71.3% 61,268 62,369
60% 60.3% 52,515 52,768
50% 49.7% 43,763 43,496
40% 39.5% 35,010 34,564
30% 29.6% 26,258 25,912
20% 20.3% 17,505 17,737
10% 9.8% 8,753 8,593
Active Idle   0 0
Graph of results
JVM 'linux-node5.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,981
Calibration 2     80,502
Calibration 3     80,515
ssj_ops@calibrated=80,509
100% 99.7% 80,509 80,307
90% 90.1% 72,458 72,503
80% 79.0% 64,407 63,607
70% 70.3% 56,356 56,609
60% 59.4% 48,305 47,851
50% 51.8% 40,254 41,670
40% 40.4% 32,203 32,564
30% 29.9% 24,153 24,068
20% 20.0% 16,102 16,095
10% 9.8% 8,051 7,858
Active Idle   0 0
Graph of results

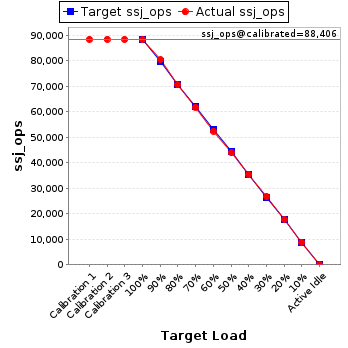

JVM 'linux-node5.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,423
Calibration 2     88,431
Calibration 3     88,380
ssj_ops@calibrated=88,406
100% 99.7% 88,406 88,170
90% 90.9% 79,565 80,381
80% 79.9% 70,725 70,643
70% 69.9% 61,884 61,830
60% 59.3% 53,043 52,412
50% 49.6% 44,203 43,866
40% 40.1% 35,362 35,490
30% 30.3% 26,522 26,762
20% 20.1% 17,681 17,799
10% 10.0% 8,841 8,803
Active Idle   0 0
Graph of results
JVM 'linux-node5.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,350
Calibration 2     89,866
Calibration 3     90,609
ssj_ops@calibrated=90,238
100% 100.6% 90,238 90,756
90% 89.8% 81,214 80,998
80% 79.8% 72,190 72,018
70% 70.5% 63,166 63,612
60% 60.0% 54,143 54,141
50% 50.2% 45,119 45,284
40% 40.1% 36,095 36,228
30% 30.0% 27,071 27,105
20% 19.9% 18,048 17,989
10% 9.9% 9,024 8,971
Active Idle   0 0
Graph of results
JVM 'linux-node5.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,061
Calibration 2     89,225
Calibration 3     89,200
ssj_ops@calibrated=89,212
100% 99.9% 89,212 89,127
90% 90.7% 80,291 80,942
80% 79.6% 71,370 71,006
70% 70.0% 62,449 62,465
60% 59.9% 53,527 53,412
50% 49.0% 44,606 43,703
40% 39.9% 35,685 35,563
30% 29.9% 26,764 26,650
20% 20.1% 17,842 17,928
10% 10.4% 8,921 9,306
Active Idle   0 0
Graph of results
JVM 'linux-node5.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,095
Calibration 2     89,053
Calibration 3     88,601
ssj_ops@calibrated=88,827
100% 100.4% 88,827 89,144
90% 89.2% 79,944 79,256
80% 79.5% 71,062 70,647
70% 70.4% 62,179 62,560
60% 59.3% 53,296 52,673
50% 50.2% 44,414 44,579
40% 40.5% 35,531 35,964
30% 30.7% 26,648 27,234
20% 20.0% 17,765 17,790
10% 10.1% 8,883 8,977
Active Idle   0 0
Graph of results
JVM 'linux-node5.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,151
Calibration 2     79,256
Calibration 3     79,105
ssj_ops@calibrated=79,180
100% 99.8% 79,180 78,997
90% 89.9% 71,262 71,196
80% 79.7% 63,344 63,091
70% 69.3% 55,426 54,846
60% 60.3% 47,508 47,736
50% 50.4% 39,590 39,873
40% 40.5% 31,672 32,030
30% 30.7% 23,754 24,287
20% 19.5% 15,836 15,450
10% 9.7% 7,918 7,719
Active Idle   0 0
Graph of results
JVM 'linux-node5.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,967
Calibration 2     79,691
Calibration 3     79,879
ssj_ops@calibrated=79,785
100% 100.0% 79,785 79,769
90% 89.8% 71,807 71,637
80% 79.7% 63,828 63,572
70% 70.2% 55,850 55,972
60% 58.6% 47,871 46,748
50% 50.9% 39,893 40,574
40% 40.0% 31,914 31,896
30% 30.2% 23,936 24,124
20% 19.9% 15,957 15,891
10% 10.2% 7,979 8,126
Active Idle   0 0
Graph of results
JVM 'linux-node5.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,493
Calibration 2     83,417
Calibration 3     83,420
ssj_ops@calibrated=83,419
100% 99.9% 83,419 83,315
90% 90.3% 75,077 75,341
80% 78.7% 66,735 65,666
70% 70.4% 58,393 58,760
60% 60.4% 50,051 50,403
50% 49.6% 41,709 41,349
40% 39.9% 33,368 33,265
30% 30.2% 25,026 25,182
20% 20.3% 16,684 16,970
10% 9.9% 8,342 8,279
Active Idle   0 0
Graph of results
JVM 'linux-node5.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,765
Calibration 2     88,471
Calibration 3     88,770
ssj_ops@calibrated=88,621
100% 99.5% 88,621 88,210
90% 90.0% 79,758 79,791
80% 80.1% 70,896 70,969
70% 68.8% 62,034 60,973
60% 60.3% 53,172 53,466
50% 49.9% 44,310 44,190
40% 40.3% 35,448 35,679
30% 30.2% 26,586 26,804
20% 20.4% 17,724 18,100
10% 9.9% 8,862 8,758
Active Idle   0 0
Graph of results
JVM 'linux-node5.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,509
Calibration 2     89,546
Calibration 3     89,052
ssj_ops@calibrated=89,299
100% 99.2% 89,299 88,590
90% 89.2% 80,369 79,635
80% 79.2% 71,439 70,721
70% 70.4% 62,509 62,891
60% 60.2% 53,579 53,802
50% 50.2% 44,649 44,834
40% 40.4% 35,719 36,107
30% 30.0% 26,790 26,805
20% 19.9% 17,860 17,738
10% 9.9% 8,930 8,883
Active Idle   0 0
Graph of results
JVM 'linux-node5.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,966
Calibration 2     82,129
Calibration 3     81,931
ssj_ops@calibrated=82,030
100% 99.0% 82,030 81,179
90% 90.5% 73,827 74,224
80% 80.1% 65,624 65,678
70% 69.7% 57,421 57,201
60% 59.8% 49,218 49,068
50% 49.6% 41,015 40,695
40% 40.6% 32,812 33,292
30% 30.2% 24,609 24,758
20% 19.8% 16,406 16,275
10% 9.8% 8,203 8,079
Active Idle   0 0
Graph of results
JVM 'linux-node5.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,366
Calibration 2     88,252
Calibration 3     88,291
ssj_ops@calibrated=88,272
100% 99.5% 88,272 87,840
90% 89.9% 79,444 79,319
80% 79.8% 70,617 70,437
70% 70.2% 61,790 61,933
60% 58.8% 52,963 51,861
50% 49.6% 44,136 43,813
40% 40.0% 35,309 35,347
30% 29.8% 26,481 26,327
20% 20.2% 17,654 17,839
10% 9.8% 8,827 8,629
Active Idle   0 0
Graph of results
JVM 'linux-node5.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,864
Calibration 2     86,858
Calibration 3     86,415
ssj_ops@calibrated=86,636
100% 99.8% 86,636 86,496
90% 89.6% 77,973 77,656
80% 80.1% 69,309 69,431
70% 69.5% 60,645 60,242
60% 60.3% 51,982 52,262
50% 49.5% 43,318 42,920
40% 39.9% 34,655 34,537
30% 29.8% 25,991 25,810
20% 19.6% 17,327 16,994
10% 10.3% 8,664 8,950
Active Idle   0 0
Graph of results
JVM 'linux-node5.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,781
Calibration 2     87,666
Calibration 3     87,502
ssj_ops@calibrated=87,584
100% 99.7% 87,584 87,307
90% 90.4% 78,825 79,138
80% 79.4% 70,067 69,547
70% 70.4% 61,309 61,620
60% 60.5% 52,550 52,982
50% 49.6% 43,792 43,448
40% 39.9% 35,034 34,972
30% 29.1% 26,275 25,462
20% 19.9% 17,517 17,387
10% 9.9% 8,758 8,654
Active Idle   0 0
Graph of results
JVM 'linux-node5.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,982
Calibration 2     86,602
Calibration 3     86,536
ssj_ops@calibrated=86,569
100% 99.6% 86,569 86,247
90% 90.3% 77,912 78,162
80% 80.2% 69,255 69,393
70% 70.7% 60,598 61,198
60% 59.3% 51,941 51,326
50% 49.6% 43,285 42,917
40% 39.9% 34,628 34,523
30% 30.2% 25,971 26,125
20% 20.6% 17,314 17,824
10% 10.3% 8,657 8,883
Active Idle   0 0
Graph of results
JVM 'linux-node5.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,157
Calibration 2     86,556
Calibration 3     86,455
ssj_ops@calibrated=86,505
100% 99.7% 86,505 86,252
90% 89.9% 77,855 77,740
80% 79.3% 69,204 68,625
70% 69.5% 60,554 60,096
60% 58.6% 51,903 50,721
50% 50.4% 43,253 43,558
40% 39.3% 34,602 34,028
30% 30.5% 25,952 26,369
20% 20.3% 17,301 17,577
10% 9.9% 8,651 8,602
Active Idle   0 0
Graph of results
JVM 'linux-node5.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,418
Calibration 2     86,891
Calibration 3     86,523
ssj_ops@calibrated=86,707
100% 99.1% 86,707 85,935
90% 90.2% 78,036 78,209
80% 80.5% 69,366 69,808
70% 69.2% 60,695 60,024
60% 59.3% 52,024 51,439
50% 49.9% 43,354 43,310
40% 40.3% 34,683 34,941
30% 30.2% 26,012 26,204
20% 20.4% 17,341 17,679
10% 10.0% 8,671 8,700
Active Idle   0 0
Graph of results
JVM 'linux-node5.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,343
Calibration 2     89,290
Calibration 3     89,086
ssj_ops@calibrated=89,188
100% 99.6% 89,188 88,862
90% 90.3% 80,269 80,571
80% 80.4% 71,350 71,669
70% 70.2% 62,432 62,623
60% 59.7% 53,513 53,226
50% 50.1% 44,594 44,671
40% 39.8% 35,675 35,500
30% 30.6% 26,756 27,325
20% 19.8% 17,838 17,633
10% 10.0% 8,919 8,904
Active Idle   0 0
Graph of results
JVM 'linux-node5.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,555
Calibration 2     84,049
Calibration 3     84,085
ssj_ops@calibrated=84,067
100% 99.9% 84,067 83,950
90% 90.7% 75,660 76,258
80% 79.8% 67,254 67,047
70% 70.3% 58,847 59,111
60% 59.7% 50,440 50,218
50% 49.5% 42,034 41,602
40% 40.1% 33,627 33,742
30% 30.0% 25,220 25,246
20% 19.9% 16,813 16,766
10% 10.2% 8,407 8,571
Active Idle   0 0
Graph of results
JVM 'linux-node5.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,124
Calibration 2     80,530
Calibration 3     80,598
ssj_ops@calibrated=80,564
100% 100.1% 80,564 80,657
90% 89.4% 72,508 72,045
80% 79.5% 64,451 64,068
70% 70.1% 56,395 56,478
60% 60.9% 48,338 49,049
50% 50.0% 40,282 40,303
40% 39.7% 32,226 31,956
30% 30.3% 24,169 24,430
20% 20.4% 16,113 16,465
10% 9.9% 8,056 7,954
Active Idle   0 0
Graph of results
JVM 'linux-node5.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,165
Calibration 2     83,414
Calibration 3     83,208
ssj_ops@calibrated=83,311
100% 99.9% 83,311 83,240
90% 90.7% 74,980 75,597
80% 79.0% 66,649 65,802
70% 70.7% 58,318 58,927
60% 61.0% 49,987 50,824
50% 49.1% 41,655 40,872
40% 40.4% 33,324 33,665
30% 30.1% 24,993 25,084
20% 19.9% 16,662 16,558
10% 9.6% 8,331 7,992
Active Idle   0 0
Graph of results
JVM 'linux-node5.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,492
Calibration 2     81,514
Calibration 3     81,542
ssj_ops@calibrated=81,528
100% 100.2% 81,528 81,662
90% 90.0% 73,375 73,342
80% 80.1% 65,222 65,318
70% 70.3% 57,070 57,337
60% 59.2% 48,917 48,274
50% 49.9% 40,764 40,689
40% 40.4% 32,611 32,969
30% 30.4% 24,458 24,769
20% 20.2% 16,306 16,458
10% 9.9% 8,153 8,041
Active Idle   0 0
Graph of results
JVM 'linux-node5.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,898
Calibration 2     89,256
Calibration 3     89,365
ssj_ops@calibrated=89,310
100% 99.9% 89,310 89,245
90% 90.1% 80,379 80,477
80% 80.1% 71,448 71,551
70% 69.7% 62,517 62,215
60% 60.0% 53,586 53,570
50% 50.3% 44,655 44,893
40% 39.8% 35,724 35,568
30% 30.1% 26,793 26,894
20% 20.4% 17,862 18,234
10% 10.1% 8,931 9,013
Active Idle   0 0
Graph of results
JVM 'linux-node5.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,773
Calibration 2     81,907
Calibration 3     81,864
ssj_ops@calibrated=81,886
100% 100.1% 81,886 81,986
90% 89.9% 73,697 73,597
80% 80.0% 65,509 65,525
70% 70.1% 57,320 57,373
60% 60.8% 49,131 49,775
50% 50.0% 40,943 40,960
40% 39.8% 32,754 32,557
30% 29.8% 24,566 24,385
20% 19.9% 16,377 16,322
10% 10.3% 8,189 8,448
Active Idle   0 0
Graph of results
JVM 'linux-node5.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,988
Calibration 2     86,717
Calibration 3     86,541
ssj_ops@calibrated=86,629
100% 99.8% 86,629 86,467
90% 90.2% 77,966 78,103
80% 80.7% 69,304 69,922
70% 70.0% 60,641 60,637
60% 61.4% 51,978 53,154
50% 49.0% 43,315 42,480
40% 39.8% 34,652 34,495
30% 29.1% 25,989 25,241
20% 20.3% 17,326 17,617
10% 10.0% 8,663 8,650
Active Idle   0 0
Graph of results
JVM 'linux-node5.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,745
Calibration 2     83,143
Calibration 3     83,082
ssj_ops@calibrated=83,113
100% 99.9% 83,113 82,996
90% 90.5% 74,801 75,199
80% 80.8% 66,490 67,165
70% 70.2% 58,179 58,325
60% 59.6% 49,868 49,513
50% 50.6% 41,556 42,046
40% 40.8% 33,245 33,902
30% 29.4% 24,934 24,442
20% 19.6% 16,623 16,325
10% 10.1% 8,311 8,393
Active Idle   0 0
Graph of results
JVM 'linux-node5.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,493
Calibration 2     88,191
Calibration 3     88,138
ssj_ops@calibrated=88,165
100% 99.9% 88,165 88,075
90% 89.5% 79,348 78,950
80% 79.8% 70,532 70,332
70% 70.1% 61,715 61,761
60% 58.8% 52,899 51,829
50% 49.5% 44,082 43,634
40% 40.6% 35,266 35,799
30% 30.2% 26,449 26,603
20% 20.0% 17,633 17,620
10% 9.6% 8,816 8,508
Active Idle   0 0
Graph of results
JVM 'linux-node5.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,222
Calibration 2     87,634
Calibration 3     87,310
ssj_ops@calibrated=87,472
100% 99.6% 87,472 87,150
90% 89.7% 78,725 78,466
80% 79.3% 69,978 69,388
70% 69.6% 61,230 60,924
60% 60.1% 52,483 52,597
50% 49.5% 43,736 43,282
40% 40.1% 34,989 35,085
30% 30.7% 26,242 26,864
20% 19.9% 17,494 17,420
10% 9.9% 8,747 8,679
Active Idle   0 0
Graph of results
JVM 'linux-node5.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,063
Calibration 2     87,946
Calibration 3     88,031
ssj_ops@calibrated=87,989
100% 100.0% 87,989 87,958
90% 90.0% 79,190 79,190
80% 79.9% 70,391 70,285
70% 70.2% 61,592 61,787
60% 60.0% 52,793 52,834
50% 50.6% 43,994 44,529
40% 39.5% 35,195 34,788
30% 29.8% 26,397 26,215
20% 19.7% 17,598 17,346
10% 10.3% 8,799 9,079
Active Idle   0 0
Graph of results
JVM 'linux-node5.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,331
Calibration 2     81,254
Calibration 3     81,297
ssj_ops@calibrated=81,276
100% 100.2% 81,276 81,478
90% 89.1% 73,148 72,417
80% 80.0% 65,020 65,017
70% 70.6% 56,893 57,408
60% 61.4% 48,765 49,870
50% 49.1% 40,638 39,882
40% 40.3% 32,510 32,721
30% 29.6% 24,383 24,044
20% 19.9% 16,255 16,178
10% 10.3% 8,128 8,345
Active Idle   0 0
Graph of results
JVM 'linux-node5.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,552
Calibration 2     88,401
Calibration 3     88,277
ssj_ops@calibrated=88,339
100% 100.1% 88,339 88,396
90% 91.1% 79,505 80,467
80% 80.3% 70,671 70,950
70% 70.0% 61,838 61,851
60% 60.5% 53,004 53,480
50% 50.3% 44,170 44,399
40% 40.3% 35,336 35,602
30% 29.4% 26,502 25,995
20% 19.6% 17,668 17,292
10% 9.8% 8,834 8,687
Active Idle   0 0
Graph of results
JVM 'linux-node5.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,941
Calibration 2     86,112
Calibration 3     85,963
ssj_ops@calibrated=86,037
100% 99.8% 86,037 85,871
90% 91.1% 77,434 78,382
80% 79.6% 68,830 68,451
70% 70.0% 60,226 60,207
60% 60.5% 51,622 52,016
50% 50.3% 43,019 43,235
40% 39.5% 34,415 33,950
30% 29.6% 25,811 25,440
20% 20.3% 17,207 17,508
10% 10.3% 8,604 8,871
Active Idle   0 0
Graph of results
JVM 'linux-node5.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,632
Calibration 2     88,783
Calibration 3     88,727
ssj_ops@calibrated=88,755
100% 99.5% 88,755 88,302
90% 90.7% 79,880 80,483
80% 80.5% 71,004 71,439
70% 69.9% 62,129 62,060
60% 60.6% 53,253 53,741
50% 49.8% 44,378 44,219
40% 40.8% 35,502 36,180
30% 29.9% 26,627 26,570
20% 19.9% 17,751 17,681
10% 10.3% 8,876 9,129
Active Idle   0 0
Graph of results
JVM 'linux-node5.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,942
Calibration 2     83,910
Calibration 3     84,090
ssj_ops@calibrated=84,000
100% 98.9% 84,000 83,037
90% 89.5% 75,600 75,176
80% 80.0% 67,200 67,177
70% 70.1% 58,800 58,911
60% 60.1% 50,400 50,492
50% 50.7% 42,000 42,568
40% 39.7% 33,600 33,389
30% 30.2% 25,200 25,345
20% 20.2% 16,800 16,945
10% 10.0% 8,400 8,392
Active Idle   0 0
Graph of results
JVM 'linux-node5.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,443
Calibration 2     89,335
Calibration 3     89,399
ssj_ops@calibrated=89,367
100% 99.2% 89,367 88,620
90% 89.8% 80,430 80,294
80% 79.9% 71,494 71,361
70% 68.9% 62,557 61,598
60% 60.4% 53,620 53,992
50% 49.8% 44,684 44,496
40% 40.3% 35,747 36,013
30% 30.6% 26,810 27,327
20% 19.9% 17,873 17,766
10% 9.8% 8,937 8,729
Active Idle   0 0
Graph of results
JVM 'linux-node5.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,482
Calibration 2     89,237
Calibration 3     89,316
ssj_ops@calibrated=89,277
100% 99.8% 89,277 89,121
90% 90.4% 80,349 80,727
80% 78.9% 71,421 70,410
70% 70.4% 62,494 62,853
60% 59.2% 53,566 52,849
50% 49.6% 44,638 44,272
40% 40.7% 35,711 36,375
30% 30.0% 26,783 26,827
20% 20.1% 17,855 17,914
10% 10.0% 8,928 8,887
Active Idle   0 0
Graph of results
JVM 'linux-node5.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,280
Calibration 2     89,007
Calibration 3     88,858
ssj_ops@calibrated=88,932
100% 99.0% 88,932 88,042
90% 89.9% 80,039 79,994
80% 79.3% 71,146 70,508
70% 70.0% 62,253 62,211
60% 60.8% 53,359 54,090
50% 50.1% 44,466 44,568
40% 40.0% 35,573 35,539
30% 30.3% 26,680 26,979
20% 19.7% 17,786 17,534
10% 10.0% 8,893 8,898
Active Idle   0 0
Graph of results
JVM 'linux-node5.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,473
Calibration 2     85,975
Calibration 3     85,935
ssj_ops@calibrated=85,955
100% 100.0% 85,955 85,932
90% 89.2% 77,360 76,707
80% 80.0% 68,764 68,773
70% 69.5% 60,169 59,746
60% 59.4% 51,573 51,051
50% 49.6% 42,978 42,598
40% 40.8% 34,382 35,037
30% 30.0% 25,787 25,789
20% 19.9% 17,191 17,147
10% 10.4% 8,596 8,929
Active Idle   0 0
Graph of results
JVM 'linux-node5.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,028
Calibration 2     81,730
Calibration 3     81,636
ssj_ops@calibrated=81,683
100% 100.3% 81,683 81,967
90% 89.5% 73,514 73,094
80% 79.9% 65,346 65,241
70% 70.1% 57,178 57,283
60% 59.7% 49,010 48,753
50% 49.9% 40,841 40,773
40% 39.5% 32,673 32,280
30% 30.1% 24,505 24,605
20% 20.0% 16,337 16,358
10% 10.3% 8,168 8,392
Active Idle   0 0
Graph of results
JVM 'linux-node5.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,516
Calibration 2     78,608
Calibration 3     78,603
ssj_ops@calibrated=78,606
100% 100.3% 78,606 78,814
90% 89.4% 70,745 70,300
80% 79.7% 62,884 62,632
70% 69.6% 55,024 54,683
60% 59.4% 47,163 46,693
50% 49.3% 39,303 38,727
40% 40.8% 31,442 32,035
30% 30.5% 23,582 24,013
20% 20.1% 15,721 15,777
10% 10.0% 7,861 7,879
Active Idle   0 0
Graph of results
JVM 'linux-node5.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,807
Calibration 2     81,613
Calibration 3     81,427
ssj_ops@calibrated=81,520
100% 100.2% 81,520 81,695
90% 90.1% 73,368 73,444
80% 80.0% 65,216 65,250
70% 71.0% 57,064 57,861
60% 60.3% 48,912 49,140
50% 50.4% 40,760 41,077
40% 39.5% 32,608 32,223
30% 28.9% 24,456 23,600
20% 19.2% 16,304 15,692
10% 9.9% 8,152 8,050
Active Idle   0 0
Graph of results
JVM 'linux-node5.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,307
Calibration 2     89,065
Calibration 3     88,933
ssj_ops@calibrated=88,999
100% 99.3% 88,999 88,332
90% 89.3% 80,099 79,433
80% 80.0% 71,199 71,208
70% 70.1% 62,299 62,397
60% 59.8% 53,399 53,202
50% 49.7% 44,499 44,219
40% 41.0% 35,600 36,492
30% 30.6% 26,700 27,226
20% 19.7% 17,800 17,574
10% 9.8% 8,900 8,725
Active Idle   0 0
Graph of results
JVM 'linux-node5.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,280
Calibration 2     87,942
Calibration 3     87,855
ssj_ops@calibrated=87,899
100% 99.3% 87,899 87,325
90% 89.9% 79,109 78,984
80% 79.8% 70,319 70,168
70% 70.6% 61,529 62,056
60% 59.5% 52,739 52,331
50% 50.3% 43,949 44,197
40% 39.8% 35,159 35,018
30% 30.1% 26,370 26,414
20% 20.1% 17,580 17,642
10% 9.7% 8,790 8,487
Active Idle   0 0
Graph of results

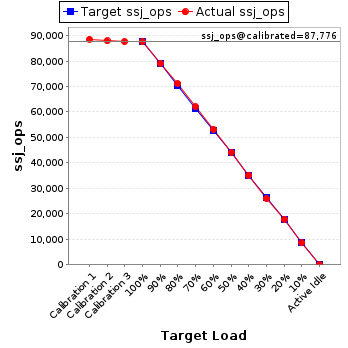

JVM 'linux-node5.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,568
Calibration 2     87,925
Calibration 3     87,627
ssj_ops@calibrated=87,776
100% 99.7% 87,776 87,555
90% 90.2% 78,999 79,156
80% 81.0% 70,221 71,088
70% 70.6% 61,443 61,992
60% 60.5% 52,666 53,139
50% 50.3% 43,888 44,114
40% 40.1% 35,111 35,210
30% 29.5% 26,333 25,916
20% 20.4% 17,555 17,924
10% 9.7% 8,778 8,533
Active Idle   0 0
Graph of results
JVM 'linux-node5.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,903
Calibration 2     80,859
Calibration 3     80,820
ssj_ops@calibrated=80,839
100% 100.0% 80,839 80,814
90% 90.3% 72,755 73,036
80% 79.5% 64,671 64,238
70% 70.2% 56,587 56,743
60% 60.1% 48,504 48,613
50% 49.7% 40,420 40,208
40% 40.6% 32,336 32,835
30% 30.6% 24,252 24,760
20% 19.7% 16,168 15,960
10% 9.8% 8,084 7,933
Active Idle   0 0
Graph of results
JVM 'linux-node5.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,385
Calibration 2     88,242
Calibration 3     88,120
ssj_ops@calibrated=88,181
100% 99.2% 88,181 87,475
90% 89.8% 79,363 79,225
80% 79.3% 70,545 69,901
70% 70.8% 61,727 62,446
60% 60.0% 52,908 52,933
50% 50.1% 44,090 44,148
40% 39.5% 35,272 34,871
30% 29.9% 26,454 26,385
20% 20.0% 17,636 17,603
10% 9.6% 8,818 8,431
Active Idle   0 0
Graph of results
JVM 'linux-node5.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,853
Calibration 2     88,508
Calibration 3     88,089
ssj_ops@calibrated=88,298
100% 100.0% 88,298 88,292
90% 91.3% 79,468 80,635
80% 80.0% 70,639 70,655
70% 70.3% 61,809 62,113
60% 59.4% 52,979 52,440
50% 49.6% 44,149 43,776
40% 40.6% 35,319 35,810
30% 30.5% 26,489 26,904
20% 19.9% 17,660 17,579
10% 9.9% 8,830 8,754
Active Idle   0 0
Graph of results
JVM 'linux-node5.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,002
Calibration 2     87,939
Calibration 3     87,593
ssj_ops@calibrated=87,766
100% 99.8% 87,766 87,549
90% 89.8% 78,990 78,800
80% 79.4% 70,213 69,702
70% 69.2% 61,436 60,713
60% 60.4% 52,660 53,009
50% 49.5% 43,883 43,402
40% 40.0% 35,106 35,124
30% 30.1% 26,330 26,420
20% 20.6% 17,553 18,037
10% 10.2% 8,777 8,942
Active Idle   0 0
Graph of results

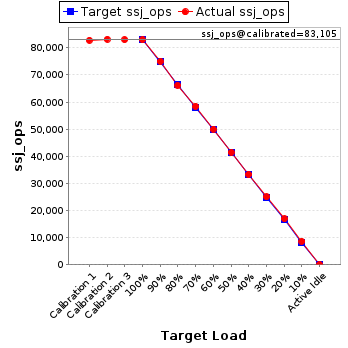

JVM 'linux-node5.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,835
Calibration 2     83,194
Calibration 3     83,016
ssj_ops@calibrated=83,105
100% 99.9% 83,105 82,989
90% 90.3% 74,794 75,062
80% 79.6% 66,484 66,179
70% 70.4% 58,173 58,488
60% 60.2% 49,863 50,033
50% 49.9% 41,552 41,473
40% 40.1% 33,242 33,312
30% 30.1% 24,931 25,009
20% 20.4% 16,621 16,932
10% 10.4% 8,310 8,632
Active Idle   0 0
Graph of results
JVM 'linux-node5.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,703
Calibration 2     85,959
Calibration 3     85,893
ssj_ops@calibrated=85,926
100% 99.4% 85,926 85,439
90% 90.4% 77,333 77,696
80% 79.6% 68,741 68,364
70% 68.5% 60,148 58,870
60% 59.2% 51,556 50,865
50% 50.6% 42,963 43,488
40% 39.7% 34,370 34,146
30% 30.6% 25,778 26,261
20% 19.9% 17,185 17,090
10% 10.1% 8,593 8,703
Active Idle   0 0
Graph of results
JVM 'linux-node5.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,617
Calibration 2     85,192
Calibration 3     85,208
ssj_ops@calibrated=85,200
100% 99.0% 85,200 84,344
90% 90.4% 76,680 76,996
80% 79.3% 68,160 67,583
70% 70.2% 59,640 59,848
60% 60.6% 51,120 51,632
50% 49.7% 42,600 42,329
40% 39.9% 34,080 33,977
30% 30.6% 25,560 26,104
20% 20.8% 17,040 17,687
10% 10.2% 8,520 8,688
Active Idle   0 0
Graph of results
JVM 'linux-node5.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,481
Calibration 2     82,380
Calibration 3     82,215
ssj_ops@calibrated=82,298
100% 99.4% 82,298 81,817
90% 89.6% 74,068 73,753
80% 79.2% 65,838 65,218
70% 69.5% 57,608 57,208
60% 59.8% 49,379 49,232
50% 50.4% 41,149 41,462
40% 40.3% 32,919 33,126
30% 29.4% 24,689 24,221
20% 19.4% 16,460 16,003
10% 10.0% 8,230 8,229
Active Idle   0 0
Graph of results
JVM 'linux-node5.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,890
Calibration 2     90,342
Calibration 3     89,719
ssj_ops@calibrated=90,031
100% 99.5% 90,031 89,576
90% 89.5% 81,028 80,580
80% 80.7% 72,025 72,671
70% 70.1% 63,022 63,140
60% 59.7% 54,018 53,709
50% 49.4% 45,015 44,481
40% 40.3% 36,012 36,280
30% 29.4% 27,009 26,489
20% 19.4% 18,006 17,499
10% 9.4% 9,003 8,499
Active Idle   0 0
Graph of results

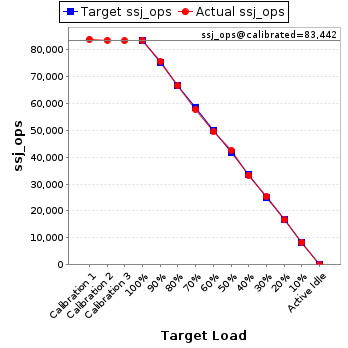

JVM 'linux-node5.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,906
Calibration 2     83,495
Calibration 3     83,389
ssj_ops@calibrated=83,442
100% 100.2% 83,442 83,590
90% 90.6% 75,098 75,579
80% 79.9% 66,754 66,631
70% 69.4% 58,410 57,897
60% 59.4% 50,065 49,550
50% 51.0% 41,721 42,534
40% 39.9% 33,377 33,329
30% 30.3% 25,033 25,287
20% 19.9% 16,688 16,631
10% 9.9% 8,344 8,229
Active Idle   0 0
Graph of results
JVM 'linux-node5.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,004
Calibration 2     86,141
Calibration 3     86,123
ssj_ops@calibrated=86,132
100% 100.1% 86,132 86,231
90% 90.2% 77,519 77,684
80% 79.9% 68,905 68,784
70% 69.7% 60,292 59,994
60% 60.2% 51,679 51,822
50% 50.1% 43,066 43,130
40% 39.5% 34,453 34,046
30% 29.9% 25,840 25,760
20% 20.1% 17,226 17,353
10% 9.5% 8,613 8,141
Active Idle   0 0
Graph of results
JVM 'linux-node5.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,896
Calibration 2     81,752
Calibration 3     81,715
ssj_ops@calibrated=81,733
100% 99.2% 81,733 81,088
90% 88.7% 73,560 72,459
80% 79.7% 65,386 65,161
70% 69.6% 57,213 56,850
60% 60.9% 49,040 49,751
50% 49.5% 40,867 40,450
40% 39.6% 32,693 32,333
30% 29.5% 24,520 24,149
20% 20.2% 16,347 16,518
10% 10.1% 8,173 8,217
Active Idle   0 0
Graph of results
JVM 'linux-node5.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,002
Calibration 2     81,339
Calibration 3     81,213
ssj_ops@calibrated=81,276
100% 99.6% 81,276 80,985
90% 89.9% 73,148 73,084
80% 79.1% 65,021 64,319
70% 70.3% 56,893 57,137
60% 60.7% 48,766 49,359
50% 49.4% 40,638 40,137
40% 39.8% 32,510 32,322
30% 30.0% 24,383 24,387
20% 19.4% 16,255 15,787
10% 10.0% 8,128 8,158
Active Idle   0 0
Graph of results
JVM 'linux-node5.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,311
Calibration 2     84,540
Calibration 3     84,636
ssj_ops@calibrated=84,588
100% 100.0% 84,588 84,595
90% 90.0% 76,129 76,090
80% 80.1% 67,671 67,756
70% 70.0% 59,212 59,251
60% 60.4% 50,753 51,089
50% 49.3% 42,294 41,697
40% 39.5% 33,835 33,402
30% 29.3% 25,376 24,768
20% 19.4% 16,918 16,430
10% 10.2% 8,459 8,600
Active Idle   0 0
Graph of results
JVM 'linux-node5.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,369
Calibration 2     83,240
Calibration 3     83,216
ssj_ops@calibrated=83,228
100% 100.0% 83,228 83,188
90% 90.5% 74,905 75,297
80% 79.7% 66,583 66,358
70% 70.0% 58,260 58,296
60% 59.9% 49,937 49,859
50% 49.9% 41,614 41,559
40% 41.1% 33,291 34,170
30% 29.6% 24,968 24,596
20% 19.4% 16,646 16,148
10% 10.3% 8,323 8,564
Active Idle   0 0
Graph of results
JVM 'linux-node5.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,323
Calibration 2     79,901
Calibration 3     79,873
ssj_ops@calibrated=79,887
100% 99.6% 79,887 79,579
90% 89.4% 71,898 71,438
80% 80.0% 63,910 63,940
70% 70.4% 55,921 56,262
60% 60.1% 47,932 48,007
50% 49.9% 39,944 39,825
40% 39.3% 31,955 31,413
30% 29.6% 23,966 23,619
20% 20.0% 15,977 16,016
10% 9.7% 7,989 7,742
Active Idle   0 0
Graph of results
JVM 'linux-node5.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,151
Calibration 2     79,836
Calibration 3     79,658
ssj_ops@calibrated=79,747
100% 99.7% 79,747 79,535
90% 89.4% 71,772 71,297
80% 79.5% 63,798 63,377
70% 69.6% 55,823 55,515
60% 60.3% 47,848 48,118
50% 50.0% 39,874 39,861
40% 39.9% 31,899 31,818
30% 29.9% 23,924 23,817
20% 19.7% 15,949 15,671
10% 10.1% 7,975 8,062
Active Idle   0 0
Graph of results
