SPECpower_ssj2008

Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module			SPECpower_ssj2008 = 11,754 overall ssj_ops/watt
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 26, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	May 8, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

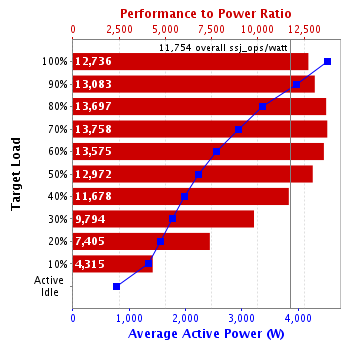

Performance			Power	Performance to Power Ratio
Target Load	Actual Load	ssj_ops	Average Active Power (W)	Performance to Power Ratio
100%	99.7%	57,553,033	4,519	12,736
90%	90.0%	51,973,112	3,973	13,083
80%	80.0%	46,194,421	3,373	13,697
70%	70.0%	40,392,143	2,936	13,758
60%	60.0%	34,644,863	2,552	13,575
50%	50.0%	28,856,605	2,224	12,972
40%	40.0%	23,087,130	1,977	11,678
30%	30.0%	17,306,768	1,767	9,794
20%	20.0%	11,559,498	1,561	7,405
10%	10.0%	5,778,754	1,339	4,315
Active Idle		0	779	0
∑ssj_ops / ∑power =				11,754

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
10	20	560	1,120	1,920	10	40

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	HPE Synergy 12000 Frame
Form Factor:	12U
Power Supply Quantity and Rating (W):	6 x 2650
Power Supply Details:	HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch:	1 x H3C S5820X-28S (JD373A)
Network Switch Details:	10 Gb Fibre 24 ports
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	1 x HPE Synergy 10/40Gb Pass Thru Module (799330-B21), 1 x Synergy Composer (804353-B21), 1 x Synergy Frame Link Module (804942-B21)
Comment:	Network switch not measured for power

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	10
Comment:	SUT

Hardware per Node
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 480 Gen10 Compute Module
Form Factor:	7U
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16384 MB
Memory Details:	12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	H/S: Standard

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn21000m -Xms24000m -Xmx24000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	4
JVM Initial Heap (MB):	24000
JVM Maximum Heap (MB):	24000
JVM Address Bits:	64
Boot Firmware Version:	I42 v2.00 (02/02/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Controller System

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	ProLiant DL360 Gen9
CPU Description:	2 x Intel Xeon E5-2660 v3
Memory amount (GB):	128

Software
Operating System (OS):	Microsoft Windows Server 2012 R2
JVM Vendor:	Oracle Corporation
JVM Version:	1.8.0_144-b01 (build 25.144-b01, mixed mode)
CCS Version:	1.2.6

Measurement Devices

Power Analyzer pwr1
Hardware Vendor:	Yokogawa
Model:	WT210
Serial Number:	91GB53024
Connectivity:	GPIB vi NI GPIB-USB-HS
Input Connection:	Default
Metrology Institute:	NIST
Accredited by:	TRANSCAT
Calibration Label:	5-EM5Y4-80-1
Date of Calibration:	21-Jun-2018
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	SUT Power Supplies 1 and 4

Power Analyzer pwr2
Hardware Vendor:	Yokogawa
Model:	WT210
Serial Number:	91GB47168
Connectivity:	GPIB vi NI GPIB-USB-HS
Input Connection:	Default
Metrology Institute:	NIST
Accredited by:	TRANSCAT
Calibration Label:	5-EM5Y4-60-1
Date of Calibration:	21-Jun-2018
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	SUT Power Supplies 2 and 5

Power Analyzer pwr3
Hardware Vendor:	Yokogawa
Model:	WT210
Serial Number:	91GC21887
Connectivity:	GPIB vi NI GPIB-USB-HS
Input Connection:	Default
Metrology Institute:	NIST
Accredited by:	TRANSCAT
Calibration Label:	5-EM5Y4-20-1
Date of Calibration:	21-Jun-2018
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	SUT Power Supplies 3 and 6

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	5 mm in front of SUT main intake

Notes

None

Aggregate Electrical and Environmental Data

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	4,519	23.6
90%	3,973	23.1
80%	3,373	22.8
70%	2,936	22.7
60%	2,552	22.5
50%	2,224	22.4
40%	1,977	22.4
30%	1,767	22.4
20%	1,561	22.3
10%	1,339	22.2
Active Idle	779	22.2

Line Standard	Minimum Temperature (°C)	Elevation (m)
208V / 60 Hz / 1 phase / 2 wires	22.2	132

See the Power/Temperature Details Report for additional details.

Aggregate Performance Data

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			57,725,322
Calibration 2			57,679,059
Calibration 3			57,756,235
ssj_ops@calibrated=57,717,647
100%	99.7%	57,717,647	57,553,033
90%	90.0%	51,945,883	51,973,112
80%	80.0%	46,174,118	46,194,421
70%	70.0%	40,402,353	40,392,143
60%	60.0%	34,630,588	34,644,863
50%	50.0%	28,858,824	28,856,605
40%	40.0%	23,087,059	23,087,130
30%	30.0%	17,315,294	17,306,768
20%	20.0%	11,543,529	11,559,498
10%	10.0%	5,771,765	5,778,754
Active Idle		0	0

See the Aggregate Performance Report for additional details.
