Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 11,754 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 26, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 4,514 23.8
Calibration 2 4,521 23.7
Calibration 3 4,532 23.6
100% 4,519 23.6
90% 3,973 23.1
80% 3,373 22.8
70% 2,936 22.7
60% 2,552 22.5
50% 2,224 22.4
40% 1,977 22.4
30% 1,767 22.4
20% 1,561 22.3
10% 1,339 22.2
Active Idle 779 22.2
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 4
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 2 and 5
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 3 and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 5.39 10.0 0.993 1,128 0.4%
Calibration 2 211 300.0 5.41 10.0 0.993 1,131 0.4%
Calibration 3 210 300.0 5.41 10.0 0.993 1,131 0.4%
100% 210 300.0 5.39 10.0 0.993 1,126 0.4%
90% 210 300.0 4.79 10.0 0.992 999 0.5%
80% 211 300.0 4.03 10.0 0.990 840 0.5%
70% 211 300.0 3.50 5.0 0.986 726 0.4%
60% 211 300.0 3.04 5.0 0.982 629 0.4%
50% 211 300.0 2.65 5.0 0.976 546 0.5%
40% 211 300.0 2.37 5.0 0.970 485 0.5%
30% 211 300.0 2.14 5.0 0.964 435 0.5%
20% 211 300.0 1.92 5.0 0.955 387 0.6%
10% 211 300.0 1.68 2.0 0.942 333 0.4%
Active Idle 211 300.0 1.10 2.0 0.835 193 0.6%

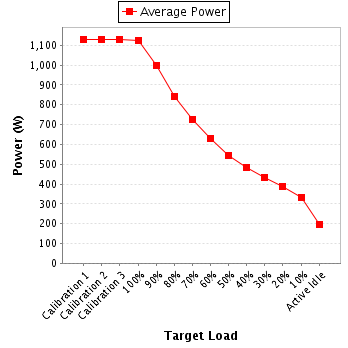

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 5.07 10.0 0.996 1,076 0.4%
Calibration 2 213 300.0 5.06 10.0 0.996 1,075 0.4%
Calibration 3 213 300.0 5.09 10.0 0.996 1,079 0.4%
100% 213 300.0 5.07 10.0 0.996 1,076 0.4%
90% 213 300.0 4.37 10.0 0.994 926 0.5%
80% 213 300.0 3.78 10.0 0.993 800 0.5%
70% 213 300.0 3.32 5.0 0.992 702 0.4%
60% 213 300.0 2.93 5.0 0.988 618 0.4%
50% 214 300.0 2.57 5.0 0.985 540 0.5%
40% 214 300.0 2.27 5.0 0.981 476 0.5%
30% 214 300.0 2.00 5.0 0.975 417 0.6%
20% 214 300.0 1.73 5.0 0.968 358 0.6%
10% 214 300.0 1.45 2.0 0.954 296 0.4%
Active Idle 214 300.0 0.931 2.0 0.857 171 0.6%

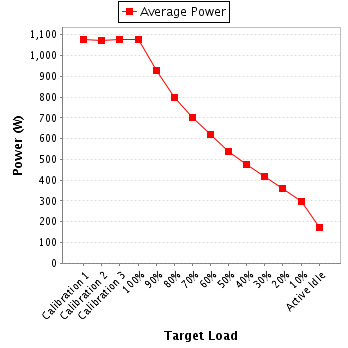

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 210 300.0 11.1 10.0 0.995 2,309 0.4%
Calibration 2 209 300.0 11.1 10.0 0.995 2,316 0.4%
Calibration 3 209 300.0 11.2 10.0 0.995 2,323 0.4%
100% 209 300.0 11.1 10.0 0.996 2,317 0.4%
90% 209 300.0 9.82 10.0 0.996 2,047 0.3%
80% 210 300.0 8.31 10.0 0.994 1,733 0.3%
70% 210 300.0 7.24 10.0 0.992 1,508 0.4%
60% 210 300.0 6.27 10.0 0.990 1,305 0.4%
50% 210 300.0 5.49 10.0 0.987 1,139 0.4%
40% 210 300.0 4.91 10.0 0.984 1,016 0.5%
30% 211 300.0 4.43 10.0 0.980 914 0.5%
20% 211 300.0 3.97 5.0 0.976 816 0.4%
10% 211 300.0 3.48 5.0 0.968 710 0.4%
Active Idle 211 300.0 2.17 5.0 0.908 415 0.6%
Power details for pwr3
