Inspur Corporation Inspur NF5180M5 SPECpower_ssj2008 = 12,167 overall ssj_ops/watt
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: May 29, 2018
Hardware Availability: Mar-2018 Software Availability: Jan-2015 Publication: Aug 1, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 5,802,662 458 12,656
90% 90.0% 5,235,248 406 12,897
80% 80.0% 4,656,565 342 13,607
70% 69.9% 4,068,712 283 14,388
60% 59.9% 3,485,289 249 13,977
50% 50.0% 2,910,350 216 13,478
40% 40.1% 2,330,889 193 12,068
30% 29.9% 1,742,179 169 10,292
20% 20.0% 1,164,312 141 8,261
10% 10.1% 585,602 119 4,911
Active Idle 0 51.3 0
∑ssj_ops / ∑power = 12,167

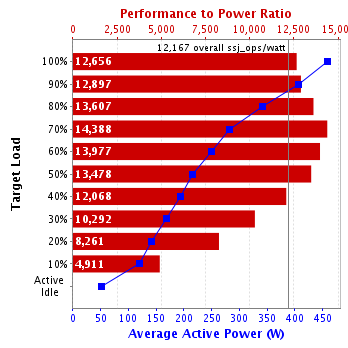

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node.
Hardware
Hardware Vendor: Inspur Corporation
Model: Inspur NF5180M5
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8176 CPU 2.10 GHz (Intel Turbo Boost Technology up to 2.80 GHz)
CPU Characteristics: 28-Core, 2.1GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per chip
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 2Rx8 PC4-2666V ECC RDIMM;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Delta DPS-800AB-9X P/N:V07LP0400000000F
Disk Drive: Intel SSD DC S3500 Series 6Gb/s 80G PN:ZMHD1000018
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Balanced Power" power plan)
Operating System (OS): Microsoft Windows Servers 2012 R2 Standard
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM)64-Bit Server VM(build 24.80-b11,mixed mode),version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2] /AFFINITY [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE [1,3] /AFFINITY [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 4.0.2
Management Firmware Version: 3.3.0
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Applied the OS patches: KB4056898, update system FW by:http://en.inspur.com/inspur/495255/494903/2412331/index.html
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Inspur Corporation
Model: Inspur VIT P3400
CPU Description: Intel Core i5-4210m
Memory amount (GB): 4
Software
Operating System (OS): Windows 7
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11,mixed mode), version 1.7.0_80
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C3TA11005E
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: QDCT170324337-28
Date of Calibration: 27-Jul-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 0
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 458 21.3
90% 406 22.1
80% 342 22.3
70% 283 22.3
60% 249 22.1
50% 216 22.0
40% 193 22.1
30% 169 22.2
20% 141 22.3
10% 119 22.5
Active Idle 51.3 22.6
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 21.3 57
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,879,599
Calibration 2     5,809,926
Calibration 3     5,826,444
ssj_ops@calibrated=5,818,185
100% 99.7% 5,818,185 5,802,662
90% 90.0% 5,236,367 5,235,248
80% 80.0% 4,654,548 4,656,565
70% 69.9% 4,072,730 4,068,712
60% 59.9% 3,490,911 3,485,289
50% 50.0% 2,909,093 2,910,350
40% 40.1% 2,327,274 2,330,889
30% 29.9% 1,745,456 1,742,179
20% 20.0% 1,163,637 1,164,312
10% 10.1% 581,819 585,602
Active Idle   0 0
