Inspur Corporation Inspur NF5180M5 ssj_ops@100% = 5,802,662
ssj_ops@100% per JVM = 103,619
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: May 29, 2018
Hardware Availability: Mar-2018 Software Availability: Jan-2015 Publication: Aug 1, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,879,599
Calibration 2     5,809,926
Calibration 3     5,826,444
ssj_ops@calibrated=5,818,185
100% 99.7% 5,818,185 5,802,662
90% 90.0% 5,236,367 5,235,248
80% 80.0% 4,654,548 4,656,565
70% 69.9% 4,072,730 4,068,712
60% 59.9% 3,490,911 3,485,289
50% 50.0% 2,909,093 2,910,350
40% 40.1% 2,327,274 2,330,889
30% 29.9% 1,745,456 1,742,179
20% 20.0% 1,163,637 1,164,312
10% 10.1% 581,819 585,602
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node.
Hardware
Hardware Vendor: Inspur Corporation
Model: Inspur NF5180M5
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8176 CPU 2.10 GHz (Intel Turbo Boost Technology up to 2.80 GHz)
CPU Characteristics: 28-Core, 2.1GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per chip
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 2Rx8 PC4-2666V ECC RDIMM;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Delta DPS-800AB-9X P/N:V07LP0400000000F
Disk Drive: Intel SSD DC S3500 Series 6Gb/s 80G PN:ZMHD1000018
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Balanced Power" power plan)
Operating System (OS): Microsoft Windows Servers 2012 R2 Standard
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM)64-Bit Server VM(build 24.80-b11,mixed mode),version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2] /AFFINITY [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE [1,3] /AFFINITY [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 4.0.2
Management Firmware Version: 3.3.0
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Applied the OS patches: KB4056898, update system FW by:http://en.inspur.com/inspur/495255/494903/2412331/index.html
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-6MS7P2M15GR.001 103,268
WIN-6MS7P2M15GR.002 101,074
WIN-6MS7P2M15GR.003 105,839
WIN-6MS7P2M15GR.004 97,108
WIN-6MS7P2M15GR.005 104,714
WIN-6MS7P2M15GR.006 107,386
WIN-6MS7P2M15GR.007 103,173
WIN-6MS7P2M15GR.008 102,803
WIN-6MS7P2M15GR.009 101,984
WIN-6MS7P2M15GR.010 101,849
WIN-6MS7P2M15GR.011 96,935
WIN-6MS7P2M15GR.012 103,677
WIN-6MS7P2M15GR.013 103,754
WIN-6MS7P2M15GR.014 101,953
WIN-6MS7P2M15GR.015 102,670
WIN-6MS7P2M15GR.016 102,163
WIN-6MS7P2M15GR.017 103,840
WIN-6MS7P2M15GR.018 91,877
WIN-6MS7P2M15GR.019 101,621
WIN-6MS7P2M15GR.020 106,796
WIN-6MS7P2M15GR.021 101,633
WIN-6MS7P2M15GR.022 100,853
WIN-6MS7P2M15GR.023 105,095
WIN-6MS7P2M15GR.024 104,131

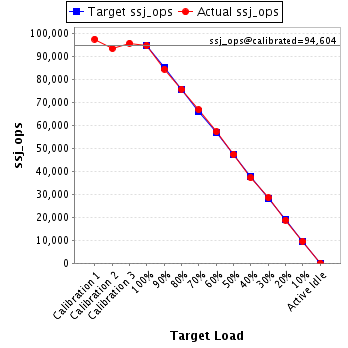

WIN-6MS7P2M15GR.025 94,707
WIN-6MS7P2M15GR.026 104,451
WIN-6MS7P2M15GR.027 102,922
WIN-6MS7P2M15GR.028 103,623
WIN-6MS7P2M15GR.029 105,175
WIN-6MS7P2M15GR.030 103,397
WIN-6MS7P2M15GR.031 105,572
WIN-6MS7P2M15GR.032 96,459
WIN-6MS7P2M15GR.033 108,442
WIN-6MS7P2M15GR.034 107,040
WIN-6MS7P2M15GR.035 109,445
WIN-6MS7P2M15GR.036 109,298
WIN-6MS7P2M15GR.037 107,771
WIN-6MS7P2M15GR.038 106,496
WIN-6MS7P2M15GR.039 94,795
WIN-6MS7P2M15GR.040 105,945
WIN-6MS7P2M15GR.041 107,061

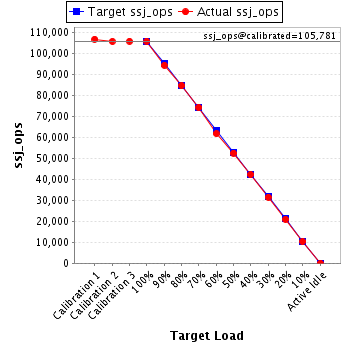

WIN-6MS7P2M15GR.042 105,781
WIN-6MS7P2M15GR.043 105,048
WIN-6MS7P2M15GR.044 107,388
WIN-6MS7P2M15GR.045 105,296
WIN-6MS7P2M15GR.046 96,946
WIN-6MS7P2M15GR.047 105,841
WIN-6MS7P2M15GR.048 107,563
WIN-6MS7P2M15GR.049 107,510

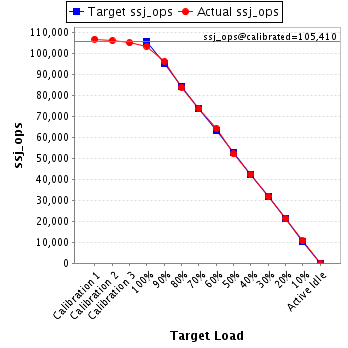

WIN-6MS7P2M15GR.050 103,321
WIN-6MS7P2M15GR.051 106,342
WIN-6MS7P2M15GR.052 106,905

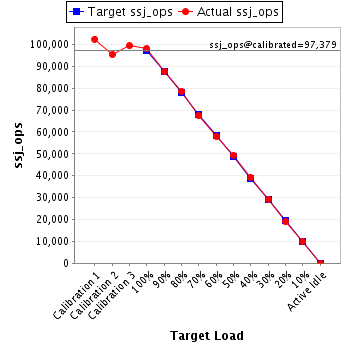

WIN-6MS7P2M15GR.053 98,075
WIN-6MS7P2M15GR.054 106,235
WIN-6MS7P2M15GR.055 106,507
WIN-6MS7P2M15GR.056 105,111
ssj_ops@100% 5,802,662
ssj_ops@100% per JVM 103,619
Graph of per-instance results
JVM 'WIN-6MS7P2M15GR.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,333
Calibration 2     103,448
Calibration 3     102,647
ssj_ops@calibrated=103,047
100% 100.2% 103,047 103,268
90% 89.8% 92,743 92,485
80% 80.2% 82,438 82,648
70% 69.8% 72,133 71,968
60% 58.7% 61,828 60,537
50% 50.4% 51,524 51,904
40% 39.5% 41,219 40,732
30% 29.7% 30,914 30,641
20% 20.1% 20,609 20,661
10% 10.2% 10,305 10,513
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,057
Calibration 2     103,332
Calibration 3     102,322
ssj_ops@calibrated=102,827
100% 98.3% 102,827 101,074
90% 89.5% 92,544 92,036
80% 80.5% 82,262 82,729
70% 70.2% 71,979 72,164
60% 58.6% 61,696 60,268
50% 50.0% 51,413 51,452
40% 39.8% 41,131 40,952
30% 30.9% 30,848 31,787
20% 19.9% 20,565 20,432
10% 9.8% 10,283 10,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,731
Calibration 2     105,185
Calibration 3     104,844
ssj_ops@calibrated=105,014
100% 100.8% 105,014 105,839
90% 90.2% 94,513 94,677
80% 81.2% 84,011 85,238
70% 70.3% 73,510 73,808
60% 59.9% 63,009 62,940
50% 50.8% 52,507 53,393
40% 40.9% 42,006 42,943
30% 29.9% 31,504 31,432
20% 19.8% 21,003 20,795
10% 10.0% 10,501 10,524
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,644
Calibration 2     97,045
Calibration 3     97,773
ssj_ops@calibrated=97,409
100% 99.7% 97,409 97,108
90% 89.6% 87,668 87,298
80% 80.2% 77,927 78,091
70% 68.6% 68,186 66,829
60% 59.5% 58,445 57,989
50% 49.6% 48,705 48,335
40% 39.7% 38,964 38,705
30% 29.7% 29,223 28,967
20% 20.1% 19,482 19,558
10% 9.7% 9,741 9,477
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,542
Calibration 2     104,536
Calibration 3     104,773
ssj_ops@calibrated=104,655
100% 100.1% 104,655 104,714
90% 89.8% 94,189 93,983
80% 79.8% 83,724 83,478
70% 69.8% 73,258 73,036
60% 59.9% 62,793 62,722
50% 49.6% 52,327 51,858
40% 39.5% 41,862 41,307
30% 30.0% 31,396 31,362
20% 20.2% 20,931 21,149
10% 10.1% 10,465 10,609
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,738
Calibration 2     107,023
Calibration 3     107,621
ssj_ops@calibrated=107,322
100% 100.1% 107,322 107,386
90% 89.4% 96,590 95,969
80% 80.3% 85,857 86,229
70% 70.7% 75,125 75,842
60% 59.5% 64,393 63,905
50% 49.6% 53,661 53,282
40% 40.2% 42,929 43,137
30% 29.5% 32,197 31,663
20% 20.2% 21,464 21,637
10% 10.4% 10,732 11,195
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,405
Calibration 2     102,090
Calibration 3     102,486
ssj_ops@calibrated=102,288
100% 100.9% 102,288 103,173
90% 89.4% 92,059 91,481
80% 79.5% 81,831 81,346
70% 69.9% 71,602 71,531
60% 59.6% 61,373 60,972
50% 49.9% 51,144 51,017
40% 39.8% 40,915 40,699
30% 30.2% 30,686 30,903
20% 20.0% 20,458 20,413
10% 10.1% 10,229 10,364
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,410
Calibration 2     104,804
Calibration 3     103,814
ssj_ops@calibrated=104,309
100% 98.6% 104,309 102,803
90% 89.4% 93,878 93,243
80% 78.9% 83,447 82,322
70% 69.2% 73,016 72,137
60% 59.7% 62,586 62,256
50% 49.6% 52,155 51,731
40% 40.2% 41,724 41,887
30% 29.9% 31,293 31,219
20% 20.3% 20,862 21,161
10% 10.2% 10,431 10,635
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,693
Calibration 2     103,322
Calibration 3     102,304
ssj_ops@calibrated=102,813
100% 99.2% 102,813 101,984
90% 90.0% 92,532 92,536
80% 81.3% 82,251 83,614
70% 69.7% 71,969 71,629
60% 60.0% 61,688 61,667
50% 49.7% 51,407 51,119
40% 39.9% 41,125 40,995
30% 29.7% 30,844 30,489
20% 20.0% 20,563 20,606
10% 10.2% 10,281 10,487
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,824
Calibration 2     101,648
Calibration 3     102,396
ssj_ops@calibrated=102,022
100% 99.8% 102,022 101,849
90% 90.1% 91,820 91,895
80% 80.8% 81,617 82,396
70% 70.4% 71,415 71,806
60% 60.6% 61,213 61,867
50% 50.4% 51,011 51,423
40% 40.0% 40,809 40,809
30% 30.2% 30,607 30,796
20% 19.7% 20,404 20,091
10% 10.2% 10,202 10,420
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,559
Calibration 2     98,242
Calibration 3     98,240
ssj_ops@calibrated=98,241
100% 98.7% 98,241 96,935
90% 89.7% 88,417 88,128
80% 79.1% 78,593 77,740
70% 70.0% 68,769 68,720
60% 59.9% 58,945 58,888
50% 49.5% 49,120 48,621
40% 40.0% 39,296 39,338
30% 30.2% 29,472 29,674
20% 19.8% 19,648 19,447
10% 9.8% 9,824 9,625
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,731
Calibration 2     104,099
Calibration 3     103,852
ssj_ops@calibrated=103,976
100% 99.7% 103,976 103,677
90% 90.5% 93,578 94,067
80% 80.1% 83,180 83,290
70% 70.1% 72,783 72,872
60% 59.4% 62,385 61,737
50% 50.6% 51,988 52,619
40% 40.2% 41,590 41,753
30% 29.9% 31,193 31,082
20% 19.9% 20,795 20,742
10% 10.4% 10,398 10,791
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,031
Calibration 2     104,438
Calibration 3     104,987
ssj_ops@calibrated=104,712
100% 99.1% 104,712 103,754
90% 90.2% 94,241 94,491
80% 80.6% 83,770 84,354
70% 70.5% 73,299 73,789
60% 59.9% 62,827 62,736
50% 50.9% 52,356 53,314
40% 40.1% 41,885 41,974
30% 30.2% 31,414 31,667
20% 20.4% 20,942 21,315
10% 10.0% 10,471 10,486
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,318
Calibration 2     101,881
Calibration 3     103,152
ssj_ops@calibrated=102,516
100% 99.5% 102,516 101,953
90% 91.5% 92,265 93,758
80% 80.8% 82,013 82,787
70% 69.3% 71,762 70,995
60% 59.4% 61,510 60,913
50% 49.2% 51,258 50,437
40% 40.0% 41,007 40,979
30% 30.2% 30,755 30,918
20% 19.7% 20,503 20,178
10% 10.0% 10,252 10,256
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,889
Calibration 2     103,409
Calibration 3     102,592
ssj_ops@calibrated=103,001
100% 99.7% 103,001 102,670
90% 89.8% 92,701 92,462
80% 79.2% 82,401 81,619
70% 69.2% 72,100 71,241
60% 60.2% 61,800 61,959
50% 50.1% 51,500 51,570
40% 40.0% 41,200 41,150
30% 29.5% 30,900 30,349
20% 19.6% 20,600 20,157
10% 10.1% 10,300 10,404
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,491
Calibration 2     103,046
Calibration 3     101,723
ssj_ops@calibrated=102,385
100% 99.8% 102,385 102,163
90% 90.4% 92,146 92,572
80% 79.3% 81,908 81,161
70% 70.5% 71,669 72,187
60% 60.7% 61,431 62,132
50% 50.7% 51,192 51,890
40% 40.6% 40,954 41,590
30% 29.7% 30,715 30,402
20% 20.6% 20,477 21,116
10% 10.0% 10,238 10,216
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,461
Calibration 2     103,659
Calibration 3     104,028
ssj_ops@calibrated=103,843
100% 100.0% 103,843 103,840
90% 89.5% 93,459 92,989
80% 80.3% 83,075 83,417
70% 70.2% 72,690 72,927
60% 60.1% 62,306 62,384
50% 49.8% 51,922 51,689
40% 39.8% 41,537 41,303
30% 30.4% 31,153 31,577
20% 20.1% 20,769 20,905
10% 10.3% 10,384 10,679
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,066
Calibration 2     91,777
Calibration 3     93,719
ssj_ops@calibrated=92,748
100% 99.1% 92,748 91,877
90% 90.6% 83,473 84,013
80% 79.8% 74,198 74,010
70% 69.5% 64,924 64,419
60% 60.7% 55,649 56,330
50% 50.6% 46,374 46,944
40% 39.4% 37,099 36,526
30% 29.8% 27,824 27,631
20% 20.3% 18,550 18,797
10% 10.4% 9,275 9,629
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,378
Calibration 2     102,637
Calibration 3     103,325
ssj_ops@calibrated=102,981
100% 98.7% 102,981 101,621
90% 90.1% 92,683 92,738
80% 81.3% 82,385 83,721
70% 70.6% 72,087 72,725
60% 61.0% 61,789 62,870
50% 50.2% 51,491 51,727
40% 39.6% 41,193 40,762
30% 29.8% 30,894 30,707
20% 20.0% 20,596 20,641
10% 10.1% 10,298 10,441
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,999
Calibration 2     105,863
Calibration 3     107,315
ssj_ops@calibrated=106,589
100% 100.2% 106,589 106,796
90% 90.3% 95,930 96,261
80% 79.8% 85,271 85,093
70% 70.1% 74,613 74,731
60% 59.8% 63,954 63,731
50% 50.3% 53,295 53,588
40% 40.4% 42,636 43,073
30% 30.1% 31,977 32,073
20% 19.9% 21,318 21,191
10% 10.0% 10,659 10,616
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,987
Calibration 2     99,975
Calibration 3     102,461
ssj_ops@calibrated=101,218
100% 100.4% 101,218 101,633
90% 89.5% 91,096 90,614
80% 79.8% 80,974 80,739
70% 70.7% 70,853 71,516
60% 59.5% 60,731 60,179
50% 49.5% 50,609 50,101
40% 39.5% 40,487 40,021
30% 29.7% 30,365 30,036
20% 20.4% 20,244 20,653
10% 10.1% 10,122 10,237
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,697
Calibration 2     103,036
Calibration 3     102,527
ssj_ops@calibrated=102,781
100% 98.1% 102,781 100,853
90% 89.7% 92,503 92,158
80% 80.3% 82,225 82,544
70% 69.0% 71,947 70,870
60% 59.7% 61,669 61,368
50% 49.6% 51,391 50,954
40% 39.8% 41,113 40,903
30% 29.9% 30,834 30,693
20% 20.4% 20,556 20,924
10% 10.0% 10,278 10,275
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,767
Calibration 2     106,248
Calibration 3     104,883
ssj_ops@calibrated=105,565
100% 99.6% 105,565 105,095
90% 90.5% 95,009 95,539
80% 79.1% 84,452 83,512
70% 69.5% 73,896 73,411
60% 60.1% 63,339 63,463
50% 49.6% 52,783 52,370
40% 39.2% 42,226 41,384
30% 29.7% 31,670 31,307
20% 20.1% 21,113 21,199
10% 10.1% 10,557 10,690
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,886
Calibration 2     104,112
Calibration 3     104,323
ssj_ops@calibrated=104,217
100% 99.9% 104,217 104,131
90% 89.0% 93,796 92,733
80% 79.8% 83,374 83,164
70% 70.1% 72,952 73,051
60% 59.6% 62,530 62,114
50% 49.2% 52,109 51,240
40% 40.9% 41,687 42,605
30% 29.7% 31,265 30,929
20% 20.0% 20,843 20,851
10% 9.7% 10,422 10,158
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,478
Calibration 2     93,424
Calibration 3     95,783
ssj_ops@calibrated=94,604
100% 100.1% 94,604 94,707
90% 89.3% 85,143 84,455
80% 80.1% 75,683 75,758
70% 70.6% 66,223 66,775
60% 60.5% 56,762 57,211
50% 50.1% 47,302 47,374
40% 39.4% 37,841 37,254
30% 30.1% 28,381 28,487
20% 19.9% 18,921 18,799
10% 10.1% 9,460 9,553
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,804
Calibration 2     104,390
Calibration 3     104,336
ssj_ops@calibrated=104,363
100% 100.1% 104,363 104,451
90% 90.0% 93,926 93,894
80% 80.4% 83,490 83,879
70% 69.4% 73,054 72,478
60% 59.5% 62,618 62,057
50% 49.2% 52,181 51,360
40% 39.5% 41,745 41,245
30% 30.3% 31,309 31,634
20% 19.4% 20,873 20,212
10% 10.0% 10,436 10,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,305
Calibration 2     102,317
Calibration 3     103,970
ssj_ops@calibrated=103,144
100% 99.8% 103,144 102,922
90% 89.5% 92,829 92,324
80% 79.4% 82,515 81,846
70% 68.6% 72,201 70,806
60% 59.5% 61,886 61,373
50% 49.7% 51,572 51,224
40% 40.2% 41,258 41,439
30% 29.8% 30,943 30,719
20% 19.6% 20,629 20,228
10% 10.0% 10,314 10,281
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,796
Calibration 2     103,009
Calibration 3     103,775
ssj_ops@calibrated=103,392
100% 100.2% 103,392 103,623
90% 90.8% 93,053 93,892
80% 79.6% 82,713 82,263
70% 71.0% 72,374 73,452
60% 60.4% 62,035 62,425
50% 50.3% 51,696 52,006
40% 39.8% 41,357 41,105
30% 30.4% 31,018 31,381
20% 20.3% 20,678 20,970
10% 9.6% 10,339 9,977
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,226
Calibration 2     105,597
Calibration 3     104,266
ssj_ops@calibrated=104,932
100% 100.2% 104,932 105,175
90% 90.7% 94,438 95,142
80% 80.0% 83,945 83,895
70% 70.6% 73,452 74,072
60% 59.8% 62,959 62,705
50% 50.2% 52,466 52,651
40% 39.6% 41,973 41,510
30% 30.1% 31,479 31,567
20% 20.6% 20,986 21,574
10% 9.9% 10,493 10,385
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,277
Calibration 2     105,978
Calibration 3     103,549
ssj_ops@calibrated=104,763
100% 98.7% 104,763 103,397
90% 88.4% 94,287 92,564
80% 80.3% 83,810 84,122
70% 70.6% 73,334 73,911
60% 60.0% 62,858 62,886
50% 50.4% 52,382 52,767
40% 40.2% 41,905 42,115
30% 30.2% 31,429 31,668
20% 19.9% 20,953 20,866
10% 10.3% 10,476 10,795
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,697
Calibration 2     106,434
Calibration 3     105,993
ssj_ops@calibrated=106,213
100% 99.4% 106,213 105,572
90% 90.7% 95,592 96,299
80% 80.6% 84,971 85,559
70% 70.5% 74,349 74,906
60% 60.5% 63,728 64,233
50% 49.7% 53,107 52,791
40% 40.8% 42,485 43,386
30% 29.6% 31,864 31,452
20% 19.7% 21,243 20,923
10% 9.8% 10,621 10,450
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,809
Calibration 2     94,057
Calibration 3     98,887
ssj_ops@calibrated=96,472
100% 100.0% 96,472 96,459
90% 89.9% 86,825 86,743
80% 80.8% 77,178 77,941
70% 70.1% 67,530 67,618
60% 60.1% 57,883 57,976
50% 51.6% 48,236 49,772
40% 40.3% 38,589 38,912
30% 29.5% 28,942 28,472
20% 19.8% 19,294 19,116
10% 10.3% 9,647 9,922
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,270
Calibration 2     107,793
Calibration 3     107,691
ssj_ops@calibrated=107,742
100% 100.7% 107,742 108,442
90% 89.9% 96,968 96,858
80% 80.0% 86,194 86,196
70% 70.8% 75,419 76,256
60% 60.1% 64,645 64,756
50% 49.9% 53,871 53,726
40% 40.3% 43,097 43,366
30% 30.0% 32,323 32,296
20% 19.8% 21,548 21,291
10% 10.2% 10,774 10,948
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,614
Calibration 2     107,136
Calibration 3     107,592
ssj_ops@calibrated=107,364
100% 99.7% 107,364 107,040
90% 91.2% 96,627 97,876
80% 79.4% 85,891 85,277
70% 70.1% 75,155 75,221
60% 60.8% 64,418 65,285
50% 50.6% 53,682 54,313
40% 40.6% 42,946 43,634
30% 29.4% 32,209 31,523
20% 20.6% 21,473 22,082
10% 10.2% 10,736 10,999
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,885
Calibration 2     108,955
Calibration 3     109,294
ssj_ops@calibrated=109,124
100% 100.3% 109,124 109,445
90% 88.9% 98,212 97,015
80% 79.2% 87,299 86,382
70% 70.2% 76,387 76,636
60% 59.7% 65,474 65,093
50% 50.0% 54,562 54,529
40% 40.9% 43,650 44,684
30% 30.1% 32,737 32,821
20% 19.9% 21,825 21,667
10% 10.1% 10,912 11,020
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,979
Calibration 2     108,384
Calibration 3     107,211
ssj_ops@calibrated=107,797
100% 101.4% 107,797 109,298
90% 90.0% 97,018 97,025
80% 80.2% 86,238 86,471
70% 69.2% 75,458 74,577
60% 60.0% 64,678 64,649
50% 50.9% 53,899 54,876
40% 40.8% 43,119 43,954
30% 29.5% 32,339 31,840
20% 20.2% 21,559 21,816
10% 10.1% 10,780 10,883
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,005
Calibration 2     109,152
Calibration 3     107,408
ssj_ops@calibrated=108,280
100% 99.5% 108,280 107,771
90% 90.4% 97,452 97,853
80% 80.6% 86,624 87,300
70% 69.1% 75,796 74,778
60% 60.1% 64,968 65,128
50% 49.9% 54,140 54,034
40% 39.9% 43,312 43,196
30% 30.0% 32,484 32,466
20% 20.2% 21,656 21,897
10% 10.3% 10,828 11,163
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,505
Calibration 2     106,803
Calibration 3     106,025
ssj_ops@calibrated=106,414
100% 100.1% 106,414 106,496
90% 90.5% 95,772 96,336
80% 79.7% 85,131 84,787
70% 69.7% 74,490 74,143
60% 60.0% 63,848 63,833
50% 50.0% 53,207 53,205
40% 39.8% 42,565 42,382
30% 29.2% 31,924 31,056
20% 19.9% 21,283 21,128
10% 10.1% 10,641 10,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,427
Calibration 2     93,192
Calibration 3     96,792
ssj_ops@calibrated=94,992
100% 99.8% 94,992 94,795
90% 90.7% 85,493 86,198
80% 79.4% 75,994 75,384
70% 70.4% 66,495 66,833
60% 60.3% 56,995 57,242
50% 50.2% 47,496 47,712
40% 40.5% 37,997 38,490
30% 30.3% 28,498 28,788
20% 19.9% 18,998 18,935
10% 10.2% 9,499 9,733
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,918
Calibration 2     106,553
Calibration 3     106,531
ssj_ops@calibrated=106,542
100% 99.4% 106,542 105,945
90% 90.7% 95,888 96,621
80% 80.7% 85,234 85,999
70% 69.5% 74,579 74,048
60% 59.8% 63,925 63,738
50% 50.5% 53,271 53,785
40% 40.2% 42,617 42,840
30% 30.0% 31,963 31,965
20% 19.9% 21,308 21,232
10% 10.2% 10,654 10,816
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,535
Calibration 2     107,084
Calibration 3     108,271
ssj_ops@calibrated=107,678
100% 99.4% 107,678 107,061
90% 90.0% 96,910 96,929
80% 79.4% 86,142 85,492
70% 70.2% 75,374 75,617
60% 60.7% 64,607 65,379
50% 49.7% 53,839 53,553
40% 40.3% 43,071 43,408
30% 30.2% 32,303 32,561
20% 20.1% 21,536 21,590
10% 9.8% 10,768 10,537
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,761
Calibration 2     105,738
Calibration 3     105,824
ssj_ops@calibrated=105,781
100% 100.0% 105,781 105,781
90% 89.2% 95,203 94,332
80% 80.0% 84,625 84,585
70% 70.2% 74,047 74,223
60% 58.4% 63,469 61,763
50% 49.6% 52,890 52,514
40% 39.9% 42,312 42,216
30% 29.8% 31,734 31,532
20% 19.8% 21,156 20,945
10% 9.8% 10,578 10,365
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,792
Calibration 2     106,649
Calibration 3     104,431
ssj_ops@calibrated=105,540
100% 99.5% 105,540 105,048
90% 90.3% 94,986 95,267
80% 79.2% 84,432 83,591
70% 69.7% 73,878 73,520
60% 59.9% 63,324 63,171
50% 49.6% 52,770 52,322
40% 40.4% 42,216 42,615
30% 29.9% 31,662 31,566
20% 20.3% 21,108 21,437
10% 10.2% 10,554 10,795
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,683
Calibration 2     108,155
Calibration 3     107,446
ssj_ops@calibrated=107,800
100% 99.6% 107,800 107,388
90% 90.6% 97,020 97,715
80% 80.7% 86,240 86,995
70% 69.8% 75,460 75,202
60% 59.9% 64,680 64,558
50% 50.1% 53,900 54,043
40% 40.0% 43,120 43,171
30% 30.4% 32,340 32,731
20% 20.2% 21,560 21,749
10% 9.9% 10,780 10,679
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,826
Calibration 2     105,936
Calibration 3     105,849
ssj_ops@calibrated=105,893
100% 99.4% 105,893 105,296
90% 89.6% 95,303 94,929
80% 79.6% 84,714 84,262
70% 70.4% 74,125 74,534
60% 59.8% 63,536 63,318
50% 50.0% 52,946 52,901
40% 40.1% 42,357 42,494
30% 29.8% 31,768 31,561
20% 19.9% 21,179 21,054
10% 10.3% 10,589 10,858
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,080
Calibration 2     94,907
Calibration 3     98,870
ssj_ops@calibrated=96,888
100% 100.1% 96,888 96,946
90% 90.2% 87,200 87,404
80% 79.9% 77,511 77,375
70% 70.3% 67,822 68,125
60% 59.5% 58,133 57,624
50% 50.0% 48,444 48,476
40% 40.2% 38,755 38,977
30% 30.0% 29,067 29,071
20% 20.4% 19,378 19,718
10% 9.9% 9,689 9,636
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,466
Calibration 2     106,207
Calibration 3     106,316
ssj_ops@calibrated=106,262
100% 99.6% 106,262 105,841
90% 89.9% 95,636 95,566
80% 81.3% 85,009 86,405
70% 69.5% 74,383 73,878
60% 60.2% 63,757 63,926
50% 50.0% 53,131 53,162
40% 39.4% 42,505 41,860
30% 29.7% 31,879 31,526
20% 19.8% 21,252 21,062
10% 10.3% 10,626 10,912
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,018
Calibration 2     106,902
Calibration 3     107,654
ssj_ops@calibrated=107,278
100% 100.3% 107,278 107,563
90% 89.9% 96,550 96,399
80% 80.0% 85,822 85,858
70% 68.6% 75,094 73,609
60% 59.2% 64,367 63,506
50% 50.3% 53,639 53,973
40% 40.0% 42,911 42,933
30% 29.7% 32,183 31,908
20% 20.5% 21,456 22,037
10% 10.1% 10,728 10,874
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,606
Calibration 2     106,113
Calibration 3     107,566
ssj_ops@calibrated=106,839
100% 100.6% 106,839 107,510
90% 89.7% 96,155 95,825
80% 79.7% 85,472 85,169
70% 69.3% 74,788 74,016
60% 60.4% 64,104 64,544
50% 49.4% 53,420 52,730
40% 40.6% 42,736 43,360
30% 30.3% 32,052 32,333
20% 19.9% 21,368 21,290
10% 9.9% 10,684 10,606
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,640
Calibration 2     105,917
Calibration 3     104,903
ssj_ops@calibrated=105,410
100% 98.0% 105,410 103,321
90% 91.1% 94,869 96,041
80% 79.4% 84,328 83,748
70% 69.9% 73,787 73,678
60% 60.9% 63,246 64,204
50% 49.4% 52,705 52,034
40% 40.2% 42,164 42,335
30% 30.1% 31,623 31,765
20% 20.1% 21,082 21,147
10% 10.1% 10,541 10,667
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,023
Calibration 2     107,770
Calibration 3     106,842
ssj_ops@calibrated=107,306
100% 99.1% 107,306 106,342
90% 89.4% 96,576 95,956
80% 79.7% 85,845 85,489
70% 70.9% 75,114 76,039
60% 59.9% 64,384 64,303
50% 49.9% 53,653 53,535
40% 40.3% 42,922 43,240
30% 30.2% 32,192 32,397
20% 20.1% 21,461 21,607
10% 10.1% 10,731 10,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,456
Calibration 2     107,765
Calibration 3     107,644
ssj_ops@calibrated=107,704
100% 99.3% 107,704 106,905
90% 89.5% 96,934 96,440
80% 80.2% 86,163 86,354
70% 69.8% 75,393 75,190
60% 59.5% 64,623 64,041
50% 49.8% 53,852 53,637
40% 39.6% 43,082 42,602
30% 30.2% 32,311 32,511
20% 19.8% 21,541 21,284
10% 10.0% 10,770 10,770
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,406
Calibration 2     95,419
Calibration 3     99,339
ssj_ops@calibrated=97,379
100% 100.7% 97,379 98,075
90% 89.9% 87,641 87,517
80% 80.7% 77,903 78,616
70% 69.5% 68,165 67,661
60% 59.7% 58,427 58,091
50% 50.7% 48,690 49,389
40% 40.2% 38,952 39,127
30% 30.1% 29,214 29,295
20% 19.5% 19,476 18,964
10% 10.2% 9,738 9,954
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,054
Calibration 2     105,877
Calibration 3     106,294
ssj_ops@calibrated=106,085
100% 100.1% 106,085 106,235
90% 90.4% 95,477 95,858
80% 80.0% 84,868 84,897
70% 70.2% 74,260 74,425
60% 60.0% 63,651 63,656
50% 50.0% 53,043 52,996
40% 40.7% 42,434 43,157
30% 29.9% 31,826 31,761
20% 19.8% 21,217 20,995
10% 9.6% 10,609 10,195
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,271
Calibration 2     105,906
Calibration 3     106,263
ssj_ops@calibrated=106,084
100% 100.4% 106,084 106,507
90% 90.2% 95,476 95,645
80% 79.7% 84,868 84,546
70% 69.9% 74,259 74,156
60% 59.7% 63,651 63,301
50% 50.2% 53,042 53,213
40% 40.3% 42,434 42,738
30% 30.0% 31,825 31,869
20% 19.9% 21,217 21,120
10% 10.2% 10,608 10,774
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6MS7P2M15GR.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,352
Calibration 2     105,555
Calibration 3     105,722
ssj_ops@calibrated=105,638
100% 99.5% 105,638 105,111
90% 89.2% 95,074 94,201
80% 80.3% 84,510 84,878
70% 70.2% 73,947 74,125
60% 60.0% 63,383 63,390
50% 50.3% 52,819 53,165
40% 39.4% 42,255 41,613
30% 29.7% 31,691 31,359
20% 19.8% 21,128 20,962
10% 9.7% 10,564 10,291
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
