Huawei Technologies Co., Ltd Fusion Server XH620 V3 SPECpower_ssj2008 = 10,653 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Apr 11, 2016
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Apr 27, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.0% 15,938,684 1,419 11,229
90% 89.5% 14,262,247 1,213 11,758
80% 80.9% 12,892,901 1,042 12,367
70% 70.0% 11,149,796 863 12,919
60% 60.0% 9,564,286 787 12,158
50% 50.0% 7,964,190 668 11,924
40% 40.0% 6,378,951 598 10,676
30% 29.9% 4,770,999 553 8,625
20% 20.0% 3,192,686 476 6,700
10% 10.0% 1,590,602 396 4,012
Active Idle 0 217 0
∑ssj_ops / ∑power = 10,653

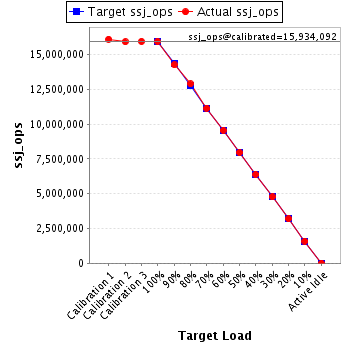

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 160 320 256 4 80
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Huawei FusionServer X6800
Form Factor: 4U
Power Supply Quantity and Rating (W): 4 x 750
Power Supply Details: Huawei P/N 02131167
Network Switch: Huawei Quidway S5348TP-SI
Network Switch Details: 48-PORT Quidway S5348TP-SI
KVM Switch: None
KVM Switch Details: None
Other Hardware: None
Comment: Network switch not measured for Power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Fusion Server XH620 V3
Form Factor: 4U
CPU Name: Intel Xeon E5-2698 V4
CPU Characteristics: 20-Core, 2.2GHz, 50MB L3 Cache (Intel Turbo Boost Technology up to 3.6GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 40 cores, 2 chips, 20 cores/chip
Hardware Threads: 80 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 50 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8 GB
Memory Details: 8GB 2Rx8 PC4-2400T ECC RDIMM;slots DIMM000, DIMM010, DIMM020, DIMM030,DIMM100, DIMM110, DIMM120, and DIMM130 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB SATADOM Huawei P/N 06010249
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel i350 Gigabit Ethernet controller Huawei P/N 02311HDL
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx1575m -Xms1575m -Xmn1420m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=4 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [F,F0,F00,F000,F0000]
JVM Instances: 20
JVM Initial Heap (MB): 1575
JVM Maximum Heap (MB): 1575
JVM Address Bits: 64
Boot Firmware Version: 3.16
Management Firmware Version: 2.02
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: FusionServer RH2288 V3
CPU Description: 2 x E5-2698 V4
Memory amount (GB): 128
Software
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 25.25-b02, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91L704197
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: A15012323-0014
Date of Calibration: 9-Dec-2015
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: Connected to PSU 1,PSU2,PSU3,PSU4
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: Unknown
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
.
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 1,419 22.1
90% 1,213 22.3
80% 1,042 22.3
70% 863 22.4
60% 787 22.6
50% 668 22.5
40% 598 22.4
30% 553 22.4
20% 476 22.4
10% 396 22.6
Active Idle 217 22.4
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 22.1 101
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     16,111,885
Calibration 2     15,917,904
Calibration 3     15,950,280
ssj_ops@calibrated=15,934,092
100% 100.0% 15,934,092 15,938,684
90% 89.5% 14,340,683 14,262,247
80% 80.9% 12,747,274 12,892,901
70% 70.0% 11,153,865 11,149,796
60% 60.0% 9,560,455 9,564,286
50% 50.0% 7,967,046 7,964,190
40% 40.0% 6,373,637 6,378,951
30% 29.9% 4,780,228 4,770,999
20% 20.0% 3,186,818 3,192,686
10% 10.0% 1,593,409 1,590,602
Active Idle   0 0

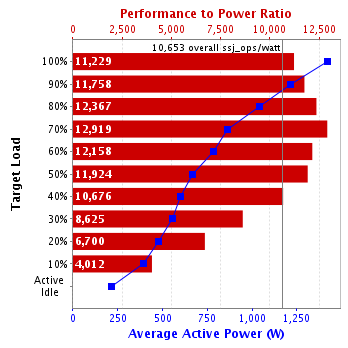

Graph of results
