Acer Incorporated Acer AW2000h-AW170h F1 ssj_ops@100% = 3,719,937
ssj_ops@100% per Host = 929,984
ssj_ops@100% per JVM = 154,997
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Various
Hardware Availability: Feb-2011 Software Availability: Dec-2009 Publication: Apr 7, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,732,149
Calibration 2     3,737,032
Calibration 3     3,732,640
ssj_ops@calibrated=3,734,836
100% 99.6% 3,734,836 3,719,937
90% 89.9% 3,361,352 3,356,241
80% 80.1% 2,987,869 2,991,178
70% 70.0% 2,614,385 2,614,290
60% 60.0% 2,240,901 2,242,718
50% 50.1% 1,867,418 1,871,046
40% 40.0% 1,493,934 1,495,531
30% 29.9% 1,120,451 1,117,336
20% 20.0% 746,967 745,742
10% 10.0% 373,484 373,653
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 48 96 96.0 4 24
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Acer AW2000h
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: PWS-1K41P-1R
Network Switch: 16-PORT Gigabit Switch
Network Switch Details: D-Link DGS-1016T
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch is a standalone device and is not included in the measured power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: Acer Incorporated
Model: Acer AW2000h-AW170h F1
Form Factor: 2U
CPU Name: Intel Xeon X5675
CPU Characteristics: Six-Core, 3.07 GHz, 12 MB L3 cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3-10600E; slots 1A, 2A, and 3A populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB SATA 3.5" HDD, Acer part #KH.500W8.019
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: USB
Mouse: USB
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1550m -Xms1950m -Xmx1950m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: P08
Management Firmware Version: 1.20
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
WIN-8T20LUSKNOV 927,129
WIN-R61MSQUQQU7 933,885
WIN-TDM3C83C35P 925,700
WIN-ULK8O9BFFGJ 933,223
ssj_ops@100% 3,719,937
ssj_ops@100% per Host 929,984
ssj_ops@100% per JVM 154,997

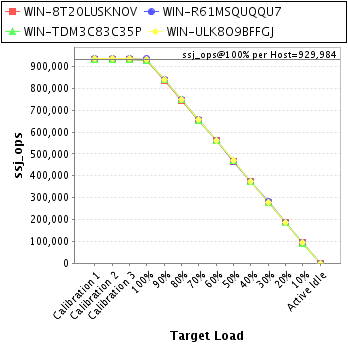

Graph of per-host results
Host 'WIN-8T20LUSKNOV' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     932,122
Calibration 2     930,880
Calibration 3     930,325
ssj_ops@calibrated=930,603
100% 99.6% 930,603 927,129
90% 90.0% 837,543 837,798
80% 79.9% 744,482 743,732
70% 70.0% 651,422 651,139
60% 60.2% 558,362 560,378
50% 50.2% 465,301 466,953
40% 40.1% 372,241 372,937
30% 30.0% 279,181 278,748
20% 19.8% 186,121 184,651
10% 10.0% 93,060 93,337
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-R61MSQUQQU7' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     935,769
Calibration 2     936,245
Calibration 3     935,384
ssj_ops@calibrated=935,814
100% 99.8% 935,814 933,885
90% 89.7% 842,233 839,862
80% 80.1% 748,651 749,417
70% 70.1% 655,070 656,129
60% 60.0% 561,488 561,526
50% 49.8% 467,907 466,224
40% 39.9% 374,326 373,653
30% 30.1% 280,744 281,227
20% 20.1% 187,163 187,791
10% 9.9% 93,581 93,037
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-TDM3C83C35P' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     929,821
Calibration 2     932,275
Calibration 3     931,461
ssj_ops@calibrated=931,868
100% 99.3% 931,868 925,700
90% 90.1% 838,681 839,942
80% 80.3% 745,495 748,677
70% 69.9% 652,308 651,695
60% 60.0% 559,121 559,211
50% 50.2% 465,934 468,253
40% 40.1% 372,747 373,588
30% 29.8% 279,560 277,325
20% 19.9% 186,374 185,346
10% 9.9% 93,187 92,517
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-ULK8O9BFFGJ' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     934,437
Calibration 2     937,631
Calibration 3     935,470
ssj_ops@calibrated=936,551
100% 99.6% 936,551 933,223
90% 89.5% 842,895 838,639
80% 80.0% 749,240 749,352
70% 70.0% 655,585 655,327
60% 60.0% 561,930 561,604
50% 50.1% 468,275 469,616
40% 40.1% 374,620 375,353
30% 29.9% 280,965 280,037
20% 20.1% 187,310 187,954
10% 10.1% 93,655 94,762
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
