Acer Incorporated Acer AW2000h-AW170h F1 ssj_ops@100% = 933,885
ssj_ops@100% per JVM = 155,647
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Mar 8, 2011
Hardware Availability: Feb-2011 Software Availability: Dec-2009 Publication: Apr 7, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     935,769
Calibration 2     936,245
Calibration 3     935,384
ssj_ops@calibrated=935,814
100% 99.8% 935,814 933,885
90% 89.7% 842,233 839,862
80% 80.1% 748,651 749,417
70% 70.1% 655,070 656,129
60% 60.0% 561,488 561,526
50% 49.8% 467,907 466,224
40% 39.9% 374,326 373,653
30% 30.1% 280,744 281,227
20% 20.1% 187,163 187,791
10% 9.9% 93,581 93,037
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AW2000h-AW170h F1
Form Factor: 2U
CPU Name: Intel Xeon X5675
CPU Characteristics: Six-Core, 3.07 GHz, 12 MB L3 cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3-10600E; slots 1A, 2A, and 3A populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB SATA 3.5" HDD, Acer part #KH.500W8.019
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: USB
Mouse: USB
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1550m -Xms1950m -Xmx1950m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: P08
Management Firmware Version: 1.20
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-R61MSQUQQU7.001 158,539
WIN-R61MSQUQQU7.002 153,587
WIN-R61MSQUQQU7.003 155,667
WIN-R61MSQUQQU7.004 155,884
WIN-R61MSQUQQU7.005 155,042
WIN-R61MSQUQQU7.006 155,166
ssj_ops@100% 933,885
ssj_ops@100% per JVM 155,647

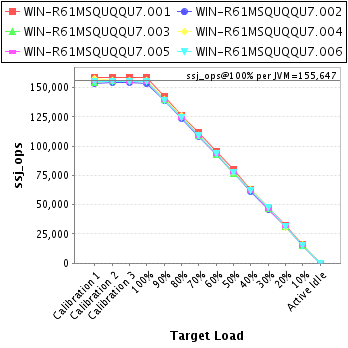

Graph of per-instance results
JVM 'WIN-R61MSQUQQU7.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     158,495
Calibration 2     158,715
Calibration 3     158,892
ssj_ops@calibrated=158,804
100% 99.8% 158,804 158,539
90% 89.9% 142,923 142,732
80% 79.2% 127,043 125,796
70% 70.2% 111,163 111,483
60% 60.1% 95,282 95,394
50% 50.4% 79,402 79,989
40% 39.5% 63,521 62,755
30% 30.1% 47,641 47,827
20% 20.2% 31,761 32,131
10% 10.1% 15,880 15,963
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R61MSQUQQU7.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,878
Calibration 2     154,436
Calibration 3     154,552
ssj_ops@calibrated=154,494
100% 99.4% 154,494 153,587
90% 89.9% 139,045 138,857
80% 80.1% 123,595 123,792
70% 70.3% 108,146 108,633
60% 59.9% 92,696 92,490
50% 50.2% 77,247 77,516
40% 39.9% 61,798 61,634
30% 29.9% 46,348 46,132
20% 20.1% 30,899 31,047
10% 9.8% 15,449 15,143
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R61MSQUQQU7.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,668
Calibration 2     155,842
Calibration 3     155,811
ssj_ops@calibrated=155,827
100% 99.9% 155,827 155,667
90% 89.7% 140,244 139,776
80% 80.3% 124,661 125,055
70% 70.1% 109,079 109,295
60% 59.8% 93,496 93,232
50% 49.0% 77,913 76,384
40% 40.2% 62,331 62,615
30% 29.7% 46,748 46,353
20% 20.0% 31,165 31,127
10% 9.7% 15,583 15,123
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R61MSQUQQU7.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,541
Calibration 2     156,224
Calibration 3     156,283
ssj_ops@calibrated=156,254
100% 99.8% 156,254 155,884
90% 89.7% 140,628 140,084
80% 80.6% 125,003 125,865
70% 69.8% 109,378 108,992
60% 60.0% 93,752 93,794
50% 49.6% 78,127 77,510
40% 40.2% 62,502 62,795
30% 30.3% 46,876 47,388
20% 19.7% 31,251 30,711
10% 10.1% 15,625 15,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R61MSQUQQU7.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,872
Calibration 2     155,532
Calibration 3     154,854
ssj_ops@calibrated=155,193
100% 99.9% 155,193 155,042
90% 89.6% 139,674 139,065
80% 80.2% 124,154 124,441
70% 70.1% 108,635 108,749
60% 60.0% 93,116 93,122
50% 50.0% 77,596 77,604
40% 40.0% 62,077 62,025
30% 29.8% 46,558 46,228
20% 20.4% 31,039 31,732
10% 10.0% 15,519 15,525
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R61MSQUQQU7.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,315
Calibration 2     155,495
Calibration 3     154,991
ssj_ops@calibrated=155,243
100% 100.0% 155,243 155,166
90% 89.8% 139,719 139,349
80% 80.2% 124,194 124,467
70% 70.2% 108,670 108,977
60% 60.2% 93,146 93,494
50% 49.7% 77,622 77,220
40% 39.8% 62,097 61,829
30% 30.5% 46,573 47,297
20% 20.0% 31,049 31,042
10% 10.0% 15,524 15,524
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
