Fujitsu Siemens Computers PRIMERGY TX120 (Intel Xeon 3070) SPECpower_ssj2008 = 454 overall ssj_ops/watt
Test Sponsor: Fujitsu Siemens Computers SPEC License #: 22 Test Method: Single Node
Tested By: Fujitsu Siemens Computers Test Location: Paderborn, Germany Test Date: Nov 27, 2007
Hardware Availability: May-2007 Software Availability: Nov-2007 Publication: Dec 11, 2007
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.3% 79,171 109 725
90% 90.0% 71,723 106 674
80% 80.4% 64,132 102 627
70% 69.9% 55,755 97.6 571
60% 60.1% 47,891 92.7 516
50% 50.1% 39,915 87.3 457
40% 40.0% 31,901 82.2 388
30% 30.0% 23,888 77.2 310
20% 19.8% 15,775 73.2 216
10% 9.9% 7,881 69.9 113
Active Idle 0 66.8 0
∑ssj_ops / ∑power = 454

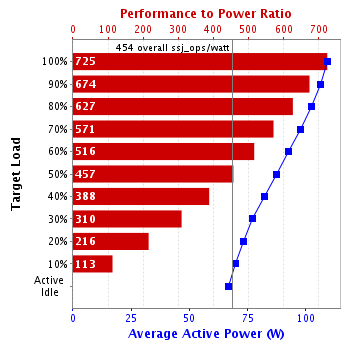

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PRIMERGY TX120 (Intel Xeon 3070)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Fujitsu Siemens Computers
Model: PRIMERGY TX120 (Intel Xeon 3070)
Form Factor: --
CPU Name: Intel Xeon 3070
CPU Characteristics: 2.66GHz, 4MB L2C shared, 1066MHz system bus
CPU Frequency (MHz): 2666
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 2 (1 / core)
CPU(s) Orderable: 1
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 4
# and size of DIMM: 2x2048MB
Memory Details: PC2-5300E CAS 5-5-5 2Rx8
Power Supply Quantity and Rating (W): 1 x 250
Power Supply Details: Fujitsu Siemens Computers DPS-250AB-8 C
Disk Drive: 1 x 73GB 10K RPM SAS (2.5")
Disk Controller: LSI Logic integrated SAS 3000 series
# and type of Network Interface Cards (NICs) Installed: Broadcom 5754 NetXtreme Gigabit Ethernet (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: Yes
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Server Balanced Power and Performance)
Operating System (OS): Microsoft(R) Windows(R) Server 2003 Enterprise x64 Edition
OS Version: 5.2.3790 Service Pack 1 Build 3790
Filesystem: NTFS
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (P27.4.0-3-86647-1.6.0_02-20070801-1931-windows-x86_64)
JVM Command-line Options: -Xms3400m -Xns3000m -Xmx3400m -Xlargepages -XXaggressive -XXthroughputcompaction -XXlazyunlocking -XXcallprofiling -Xgc:genpar -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k
JVM Affinity: None
JVM Instances: 2
JVM Initial Heap (MB): 3400
JVM Maximum Heap (MB): 3400
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 0.23
Director Location: SUT
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu Siemens Computers
Model: PRIMERGY RX100 S3
CPU Description: Pentium D 920
Memory amount (GB): 2
Software
Operating System (OS): Microsoft(R) Windows(R) Server 2003 Enterprise Edition SP1
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (build R27.3.1-1-85830-1.6.0_01-20070716-1248-windows-ia32)
CCS Version: 0.21
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Christ-Elektronik GmbH
Model: CLM3000
Serial Number: 200707-0044
Connectivity: RS-232
Input Connection: --
Calibration Institute: PTB (Physikalisch-Technische Bundesanstalt)
Accredited by: DKD (Deutscher Kalibrierdienst)
Calibration Label: 00715-07 DKD-K-23801 07-02
Date of Calibration: Feb-13-07
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 0.21-2f7044de
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 109 22.3
90% 106 22.3
80% 102 22.3
70% 97.6 22.3
60% 92.7 22.3
50% 87.3 22.3
40% 82.2 22.3
30% 77.2 22.3
20% 73.2 22.3
10% 69.9 22.3
Active Idle 66.8 22.3
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 22.3 117
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,641
Calibration 2     79,731
Calibration 3     79,708
ssj_ops@calibrated=79,720
100% 99.3% 79,720 79,171
90% 90.0% 71,748 71,723
80% 80.4% 63,776 64,132
70% 69.9% 55,804 55,755
60% 60.1% 47,832 47,891
50% 50.1% 39,860 39,915
40% 40.0% 31,888 31,901
30% 30.0% 23,916 23,888
20% 19.8% 15,944 15,775
10% 9.9% 7,972 7,881
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
