IEIT Systems Co., Ltd. meta brain NF5280G8 SPECpower_ssj2008 = 24,301 overall ssj_ops/watt
Test Sponsor: IEIT Systems Co., Ltd. SPEC License #: 3358 Test Method: Single Node
Tested By: IEIT Systems Co., Ltd. Test Location: JINAN, CHINA Test Date: Jan 24, 2025
Hardware Availability: Feb-2025 Software Availability: Jun-2024 Publication: Feb 25, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.9% 18,215,782 656 27,759
90% 91.7% 16,712,100 580 28,837
80% 80.5% 14,680,602 480 30,614
70% 70.1% 12,771,387 433 29,525
60% 60.0% 10,937,757 386 28,345
50% 50.0% 9,122,329 355 25,693
40% 40.1% 7,301,221 324 22,523
30% 30.0% 5,461,323 285 19,191
20% 20.0% 3,643,927 244 14,916
10% 10.0% 1,822,842 217 8,394
Active Idle 0 184 0
∑ssj_ops / ∑power = 24,301

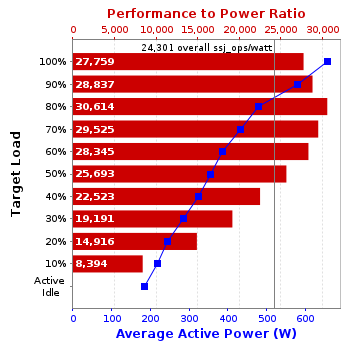

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: IEIT Systems Co., Ltd.
Model: meta brain NF5280G8
Form Factor: 2U
CPU Name: Intel Xeon 6780E 2.2 GHz
CPU Characteristics: 144 core, 2.2GHz, 108MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 288 cores, 2 chips, 144 cores/chip
Hardware Threads: 576 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
Tertiary Cache: 108 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 16 x SK_32G_DDR5-6400ER_2R8_A20_ES, IEIT PN:ZMMY1001010;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU0_C6D0, CPU0_C7D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0, CPU1_C6D0, CPU1_C7D0 populated
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: 1 x 1600w Great Wall Power; G_M_GW-CRPS1600D2W_1600W_1U_P; IEIT PN:ZMPS1000775
Disk Drive: 1 x 960G PM963_MZQLW960HMJP-00003_NVME;IEIT PN:ZMHD1000265
Disk Controller: Integrated NVME controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel_W_I350-T2V2_RJ_PCI-E4X_1KM
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.587)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing)
JVM Command-line Options: -server -Xmn1825m -Xms1995m -Xmx1995m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:InlineSmallCode=1500 -XX:UseAVX=0 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: start /NODE [0,1,2,3,4,5] /AFFINITY [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000]
JVM Instances: 72
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: 00.17.04
Management Firmware Version: 2.07.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows (KB5039227)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: IEIT Systems Co., Ltd.
Model: IEIT NF5280M5
CPU Description: Intel Xeon Silver 4214
Memory amount (GB): 32
Software
Operating System (OS): Windows Server 2022
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C3TA11005E
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: C2406041730287
Date of Calibration: 19-Jun-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 0
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 288 to detect the full number of available processors on the SUT
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 656 23.6
90% 580 23.6
80% 480 23.6
70% 433 23.6
60% 386 23.6
50% 355 23.5
40% 324 23.5
30% 285 23.4
20% 244 23.4
10% 217 23.4
Active Idle 184 23.3
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 1 wire 23.3 57
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     18,271,686
Calibration 2     18,226,909
Calibration 3     18,226,365
ssj_ops@calibrated=18,226,637
100% 99.9% 18,226,637 18,215,782
90% 91.7% 16,403,973 16,712,100
80% 80.5% 14,581,310 14,680,602
70% 70.1% 12,758,646 12,771,387
60% 60.0% 10,935,982 10,937,757
50% 50.0% 9,113,319 9,122,329
40% 40.1% 7,290,655 7,301,221
30% 30.0% 5,467,991 5,461,323
20% 20.0% 3,645,327 3,643,927
10% 10.0% 1,822,664 1,822,842
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
