IEIT Systems Co., Ltd. meta brain NF5280G8 SPECpower_ssj2008 = 24,301 overall ssj_ops/watt
Test Sponsor: IEIT Systems Co., Ltd. SPEC License #: 3358 Test Method: Single Node
Tested By: IEIT Systems Co., Ltd. Test Location: JINAN, CHINA Test Date: Jan 24, 2025
Hardware Availability: Feb-2025 Software Availability: Jun-2024 Publication: Feb 25, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 653 24.1
Calibration 2 656 23.7
Calibration 3 656 23.6
100% 656 23.6
90% 580 23.6
80% 480 23.6
70% 433 23.6
60% 386 23.6
50% 355 23.5
40% 324 23.5
30% 285 23.4
20% 244 23.4
10% 217 23.4
Active Idle 184 23.3

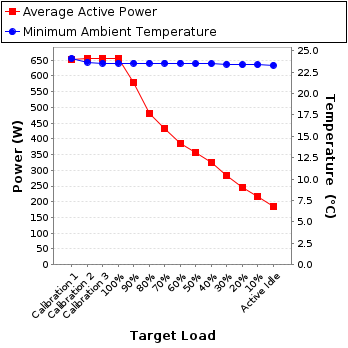

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C3TA11005E
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: C2406041730287
Date of Calibration: 19-Jun-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 0
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 288 to detect the full number of available processors on the SUT
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 230 300.0 2.88 10.0 0.985 653 0.4%
Calibration 2 230 300.0 2.89 10.0 0.985 656 0.4%
Calibration 3 230 300.0 2.89 10.0 0.985 656 0.4%
100% 230 300.0 2.89 10.0 0.985 656 0.4%
90% 231 300.0 2.59 10.0 0.981 580 0.4%
80% 231 300.0 2.13 10.0 0.975 480 0.5%
70% 231 300.0 1.93 10.0 0.970 433 0.5%
60% 231 300.0 1.74 10.0 0.963 386 0.5%
50% 231 300.0 1.61 10.0 0.958 355 0.6%
40% 231 300.0 1.49 10.0 0.948 324 0.6%
30% 231 300.0 1.31 10.0 0.939 285 0.7%
20% 231 300.0 1.15 5.0 0.920 244 0.5%
10% 232 300.0 1.05 5.0 0.888 217 0.5%
Active Idle 232 300.0 0.930 5.0 0.852 184 0.6%

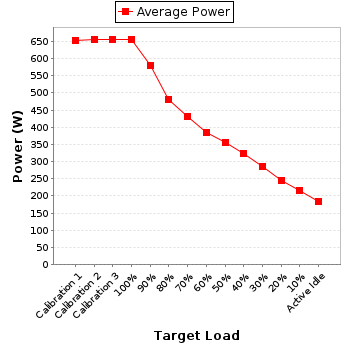

Power details for pwr1
