Hewlett Packard Enterprise ProLiant Compute DL360 Gen12 SPECpower_ssj2008 = 17,085 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 7, 2025
Hardware Availability: Mar-2025 Software Availability: Oct-2024 Publication: Feb 25, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.1% 16,169,742 833 19,409
90% 89.8% 14,654,309 795 18,422
80% 79.7% 13,013,587 672 19,357
70% 69.8% 11,395,069 547 20,821
60% 59.8% 9,761,802 468 20,849
50% 49.9% 8,150,811 416 19,583
40% 39.9% 6,513,241 374 17,399
30% 30.0% 4,899,298 339 14,468
20% 20.0% 3,267,879 301 10,844
10% 10.0% 1,632,355 261 6,249
Active Idle 0 228 0
∑ssj_ops / ∑power = 17,085

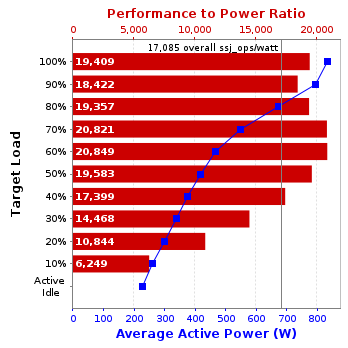

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant Compute DL360 Gen12
Form Factor: 1U
CPU Name: Intel Xeon 6787P Processor 2.0 GHz
CPU Characteristics: 86 core, 2.0 GHz, 336 MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 172 cores, 2 chips, 86 cores/chip
Hardware Threads: 344 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 336 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 1Rx8 PC5-6400B-R; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): 1 x 1000
Power Supply Details: HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit 96% (P03178-B21)
Disk Drive: 1 x HPE 1.6tb Nvme High Performance Mixed Use Sff Sc U.3 Tlc SSD
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x BCM 5719 1Gb 4p BASE-T OCP Adptr (P51178-B21)
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP6
OS Version: 6.4.0-150600.21-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.13+10-LTS-268, mixed mode)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseBiasedLocking -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210
JVM Affinity: numactl -C $((physicalCoreId + 0)),$((physicalCoreId + 1)),$((physicalCoreId + 172)),$((physicalCoreId + 173))
JVM Instances: 86
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: U68 v1.20 (02/04/2025)
Management Firmware Version: 1.01.00 Jan 01 2025
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings

BIOS Platform Configuration (RBSU):

Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2019
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_144-b01 (build 25.144-b01, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310E
Serial Number: C2SF14002V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-H48PA-200-1
Date of Calibration: 01-Aug-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.1-462c978e-20240907
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 833 26.5
90% 795 27.1
80% 672 27.5
70% 547 27.6
60% 468 27.9
50% 416 28.1
40% 374 28.4
30% 339 28.2
20% 301 27.9
10% 261 27.6
Active Idle 228 27.2
Line Standard Minimum Temperature (°C) Elevation (m)
210V / 60 Hz / 1 phase / 2 wires 26.5 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     13,934,309
Calibration 2     16,371,710
Calibration 3     16,265,200
ssj_ops@calibrated=16,318,455
100% 99.1% 16,318,455 16,169,742
90% 89.8% 14,686,610 14,654,309
80% 79.7% 13,054,764 13,013,587
70% 69.8% 11,422,919 11,395,069
60% 59.8% 9,791,073 9,761,802
50% 49.9% 8,159,228 8,150,811
40% 39.9% 6,527,382 6,513,241
30% 30.0% 4,895,537 4,899,298
20% 20.0% 3,263,691 3,267,879
10% 10.0% 1,631,846 1,632,355
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
