SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant Compute DL360 Gen12 | SPECpower_ssj2008 = 17,085 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Feb 7, 2025 |
| Hardware Availability: | Mar-2025 | Software Availability: | Oct-2024 | Publication: | Feb 25, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

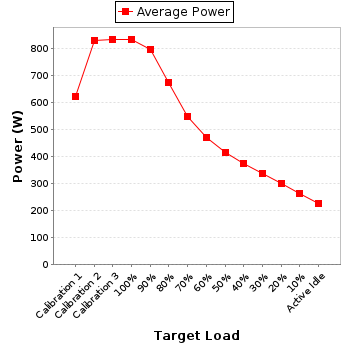

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 621 | 24.1 |
| Calibration 2 | 828 | 24.5 |
| Calibration 3 | 832 | 25.5 |
| 100% | 833 | 26.5 |
| 90% | 795 | 27.1 |
| 80% | 672 | 27.5 |
| 70% | 547 | 27.6 |
| 60% | 468 | 27.9 |
| 50% | 416 | 28.1 |
| 40% | 374 | 28.4 |
| 30% | 339 | 28.2 |
| 20% | 301 | 27.9 |
| 10% | 261 | 27.6 |
| Active Idle | 228 | 27.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310E |
| Serial Number: | C2SF14002V |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-H48PA-200-1 |
| Date of Calibration: | 01-Aug-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 3.18 | 5.0 | 0.981 | 621 | 0.3% |
| Calibration 2 | 207 | 300.0 | 4.02 | 5.0 | 0.996 | 828 | 0.2% |
| Calibration 3 | 207 | 300.0 | 4.04 | 5.0 | 0.996 | 832 | 0.2% |
| 100% | 207 | 300.0 | 4.05 | 5.0 | 0.996 | 833 | 0.2% |
| 90% | 207 | 300.0 | 3.86 | 5.0 | 0.996 | 795 | 0.2% |
| 80% | 207 | 300.0 | 3.27 | 5.0 | 0.993 | 672 | 0.2% |
| 70% | 207 | 300.0 | 2.67 | 5.0 | 0.992 | 547 | 0.3% |
| 60% | 207 | 300.0 | 2.29 | 5.0 | 0.989 | 468 | 0.3% |
| 50% | 207 | 300.0 | 2.10 | 5.0 | 0.959 | 416 | 0.3% |
| 40% | 207 | 300.0 | 1.89 | 5.0 | 0.956 | 374 | 0.4% |
| 30% | 207 | 300.0 | 1.74 | 5.0 | 0.942 | 339 | 0.4% |
| 20% | 207 | 300.0 | 1.54 | 2.0 | 0.945 | 301 | 0.3% |
| 10% | 207 | 300.0 | 1.34 | 2.0 | 0.940 | 261 | 0.3% |
| Active Idle | 207 | 300.0 | 1.19 | 2.0 | 0.930 | 228 | 0.3% |
