Lenovo Global Technology Think System SR665 V3 SPECpower_ssj2008 = 41,526 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Nov 4, 2024
Hardware Availability: Feb-2025 Software Availability: Jun-2024 Publication: Nov 19, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.4% 36,705,730 714 51,401
90% 90.0% 33,212,916 668 49,751
80% 80.0% 29,535,487 591 50,002
70% 70.0% 25,846,293 546 47,320
60% 60.0% 22,160,091 500 44,348
50% 50.0% 18,457,386 453 40,782
40% 40.0% 14,760,227 404 36,510
30% 30.0% 11,070,166 351 31,496
20% 20.0% 7,381,600 296 24,961
10% 10.0% 3,691,282 238 15,495
Active Idle 0 124 0
∑ssj_ops / ∑power = 41,526

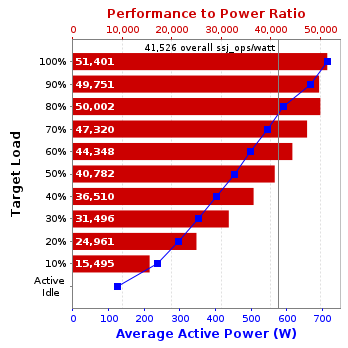

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665 V3
Form Factor: 2U
CPU Name: AMD EPYC 9845 2.1 GHz
CPU Characteristics: 160-Core,2.10GHz 320MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 320 cores, 2 chips, 160 cores/chip
Hardware Threads: 640 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16 GB
Memory Details: 24 x 16GB 1Rx8 PC5-6400-RD1; slots 1 to 24 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A72666
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A82286 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10/25GbE 2-Port Ethernet Adapter P/N:4XC7A08238
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP6
OS Version: 6.4.0-150600.21-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:InlineSmallCode=1500 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210
JVM Affinity: for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 320, physicalCoreId + 321}
JVM Instances: 160
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: KAE131A
Management Firmware Version: KAX343I
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Thinksystem SR665
CPU Description: 2 x AMD EPYC 7773X
Memory amount (GB): 512
Software
Operating System (OS): Microsoft Windows Server 2022 DataCenter - Version 21H2 (OS Build 20348.1249)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UD17023E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: CHINA CEPEREI LABORATORY CALIBRATION & TESTING CENTRE
Calibration Label: 1GA24011968-0002
Date of Calibration: 10-Oct-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 2
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 714 22.6
90% 668 22.5
80% 591 22.4
70% 546 22.3
60% 500 22.2
50% 453 22.2
40% 404 22.1
30% 351 22.1
20% 296 21.9
10% 238 21.9
Active Idle 124 21.9
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 21.9 43
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     34,298,301
Calibration 2     36,914,237
Calibration 3     36,906,019
ssj_ops@calibrated=36,910,128
100% 99.4% 36,910,128 36,705,730
90% 90.0% 33,219,115 33,212,916
80% 80.0% 29,528,103 29,535,487
70% 70.0% 25,837,090 25,846,293
60% 60.0% 22,146,077 22,160,091
50% 50.0% 18,455,064 18,457,386
40% 40.0% 14,764,051 14,760,227
30% 30.0% 11,073,038 11,070,166
20% 20.0% 7,382,026 7,381,600
10% 10.0% 3,691,013 3,691,282
Active Idle   0 0

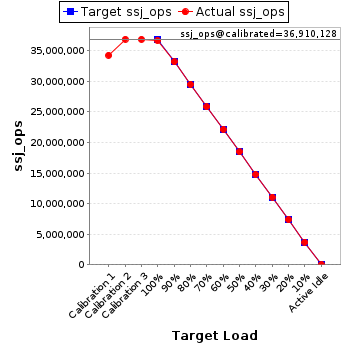

Graph of results
See the Host Performance Report for additional details.
