SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Lenovo Global Technology Think System SR665 V3 | SPECpower_ssj2008 = 41,526 overall ssj_ops/watt | ||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
| Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Nov 4, 2024 |
| Hardware Availability: | Feb-2025 | Software Availability: | Jun-2024 | Publication: | Nov 19, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

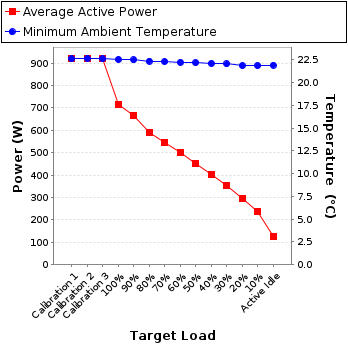

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 922 | 22.6 |
| Calibration 2 | 921 | 22.7 |
| Calibration 3 | 921 | 22.6 |
| 100% | 714 | 22.6 |
| 90% | 668 | 22.5 |
| 80% | 591 | 22.4 |
| 70% | 546 | 22.3 |
| 60% | 500 | 22.2 |
| 50% | 453 | 22.2 |
| 40% | 404 | 22.1 |
| 30% | 351 | 22.1 |
| 20% | 296 | 21.9 |
| 10% | 238 | 21.9 |
| Active Idle | 124 | 21.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C3UD17023E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | China National Accreditation Service for Conformity Assessment (CNAS) |
| Accredited by: | CHINA CEPEREI LABORATORY CALIBRATION & TESTING CENTRE |
| Calibration Label: | 1GA24011968-0002 |
| Date of Calibration: | 10-Oct-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to PSU 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 219 | 300.0 | 4.24 | 10.0 | 0.994 | 922 | 0.3% |
| Calibration 2 | 219 | 300.0 | 4.24 | 10.0 | 0.994 | 921 | 0.3% |
| Calibration 3 | 219 | 300.0 | 4.24 | 10.0 | 0.994 | 921 | 0.3% |
| 100% | 219 | 300.0 | 3.29 | 10.0 | 0.990 | 714 | 0.3% |
| 90% | 219 | 300.0 | 3.08 | 10.0 | 0.988 | 668 | 0.4% |
| 80% | 219 | 300.0 | 2.73 | 10.0 | 0.985 | 591 | 0.4% |
| 70% | 219 | 300.0 | 2.53 | 5.0 | 0.982 | 546 | 0.3% |
| 60% | 219 | 300.0 | 2.33 | 5.0 | 0.979 | 500 | 0.3% |
| 50% | 220 | 300.0 | 2.12 | 5.0 | 0.974 | 453 | 0.3% |
| 40% | 220 | 300.0 | 1.90 | 5.0 | 0.969 | 404 | 0.3% |
| 30% | 220 | 300.0 | 1.67 | 5.0 | 0.959 | 351 | 0.4% |
| 20% | 220 | 300.0 | 1.43 | 5.0 | 0.941 | 296 | 0.4% |
| 10% | 220 | 300.0 | 1.16 | 5.0 | 0.936 | 238 | 0.5% |
| Active Idle | 220 | 300.0 | 0.673 | 5.0 | 0.837 | 124 | 0.7% |
