Acer Incorporated Acer AR585 F1 SPECpower_ssj2008 = 2,362 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: May 29, 2012
Hardware Availability: Jun-2012 Software Availability: Jun-2011 Publication: Jun 21, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 2,296,333 713 3,222
90% 89.8% 2,072,655 676 3,065
80% 80.1% 1,848,545 637 2,901
70% 70.1% 1,615,949 599 2,699
60% 59.9% 1,382,301 556 2,487
50% 50.1% 1,156,280 504 2,293
40% 40.0% 922,836 452 2,041
30% 29.8% 686,700 400 1,715
20% 20.0% 460,934 351 1,313
10% 10.0% 231,095 300 770
Active Idle 0 176 0
∑ssj_ops / ∑power = 2,362

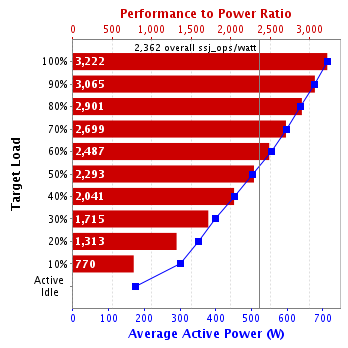

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR585 F1
Form Factor: 2U
CPU Name: AMD Opteron 6278
CPU Characteristics: 16 cores, 2.40 GHz (AMD Turbo CORE technology up to 3.30 GHz)
CPU Frequency (MHz): 2400
CPU(s) Enabled: 64 cores, 4 chips, 16 cores/chip
Hardware Threads: 64 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 512 KB I + 256 KB D on chip per chip
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 32 x 8192 MB
Memory Details: 8GB 2Rx4 PC3L-10600R; slots 1A, 1B, 2A, 2B, 3A, 3B, 4A and 4B populated on each processor
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: PWS-1K41F-1R
Disk Drive: 2 x 300GB 15K RPM SAS 3.5" HDD, Acer part #KH.300W1.025
Disk Controller: Flex IO USAS2H8iR add-on SAS RAID controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr9-20110619_85080 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1500m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -Xlp
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: P6T0
Management Firmware Version: 1.00
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GR160 F1
CPU Description: Intel L5520
Memory amount (GB): 3
Software
Operating System (OS): Windows Server 2003 R2, Enterprise Edition SP2
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-ia32, compiled mode)
CCS Version: 1.2.5
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 12-05-BAC-113-01
Date of Calibration: 10-May-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 713 24.8
90% 676 24.9
80% 637 24.3
70% 599 24.4
60% 556 24.9
50% 504 24.8
40% 452 24.6
30% 400 24.8
20% 351 25.2
10% 300 24.4
Active Idle 176 24.4
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 24.3 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,278,812
Calibration 2     2,305,441
Calibration 3     2,308,168
ssj_ops@calibrated=2,306,804
100% 99.5% 2,306,804 2,296,333
90% 89.8% 2,076,124 2,072,655
80% 80.1% 1,845,444 1,848,545
70% 70.1% 1,614,763 1,615,949
60% 59.9% 1,384,083 1,382,301
50% 50.1% 1,153,402 1,156,280
40% 40.0% 922,722 922,836
30% 29.8% 692,041 686,700
20% 20.0% 461,361 460,934
10% 10.0% 230,680 231,095
Active Idle   0 0
Graph of results
