Acer Incorporated Acer AR585 F1 | SPECpower_ssj2008 = 2,362 overall ssj_ops/watt | ||||
Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | May 29, 2012 |
Hardware Availability: | Jun-2012 | Software Availability: | Jun-2011 | Publication: | Jun 21, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

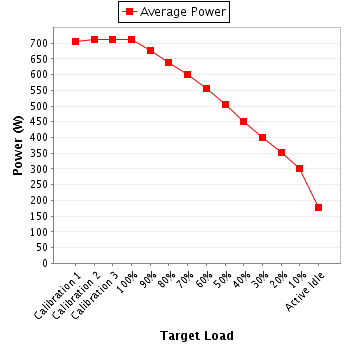

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 706 | 24.6 |
Calibration 2 | 712 | 24.7 |
Calibration 3 | 712 | 24.4 |
100% | 713 | 24.8 |
90% | 676 | 24.9 |
80% | 637 | 24.3 |
70% | 599 | 24.4 |
60% | 556 | 24.9 |
50% | 504 | 24.8 |
40% | 452 | 24.6 |
30% | 400 | 24.8 |
20% | 351 | 25.2 |
10% | 300 | 24.4 |
Active Idle | 176 | 24.4 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91H534921 |
Connectivity: | RS232 |
Input Connection: | Default |
Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
Accredited by: | ETC, Taiwan |
Calibration Label: | 12-05-BAC-113-01 |
Date of Calibration: | 10-May-2012 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.1-1271fb18-20110728 |
Setup Description: | None |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.0.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | None |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 216 | 300.0 | 3.37 | 5.0 | 0.970 | 706 | 0.4% |
Calibration 2 | 216 | 300.0 | 3.39 | 5.0 | 0.970 | 712 | 0.4% |
Calibration 3 | 216 | 300.0 | 3.39 | 5.0 | 0.970 | 712 | 0.4% |
100% | 217 | 300.0 | 3.39 | 5.0 | 0.970 | 713 | 0.4% |
90% | 216 | 300.0 | 3.23 | 5.0 | 0.969 | 676 | 0.4% |
80% | 216 | 300.0 | 3.05 | 5.0 | 0.967 | 637 | 0.4% |
70% | 215 | 300.0 | 2.88 | 5.0 | 0.966 | 599 | 0.4% |
60% | 216 | 300.0 | 2.68 | 5.0 | 0.964 | 556 | 0.4% |
50% | 216 | 300.0 | 2.43 | 5.0 | 0.961 | 504 | 0.5% |
40% | 216 | 300.0 | 2.18 | 2.0 | 0.957 | 452 | 0.3% |
30% | 216 | 300.0 | 1.95 | 2.0 | 0.952 | 400 | 0.3% |
20% | 216 | 300.0 | 1.72 | 2.0 | 0.945 | 351 | 0.3% |
10% | 216 | 300.0 | 1.48 | 2.0 | 0.936 | 300 | 0.4% |
Active Idle | 216 | 300.0 | 0.923 | 1.0 | 0.884 | 176 | 0.4% |
