Huawei Technologies Co., Ltd RH2288 V2 SPECpower_ssj2008 = 4,846 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Apr 25, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: May 16, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 1,007,084 161 6,249
90% 89.8% 908,075 146 6,231
80% 80.2% 811,266 131 6,203
70% 70.1% 709,076 117 6,063
60% 59.9% 606,148 106 5,719
50% 49.9% 504,305 100 5,033
40% 40.2% 406,185 94.2 4,314
30% 30.1% 304,096 87.3 3,484
20% 20.0% 202,298 80.2 2,522
10% 10.0% 100,821 72.5 1,391
Active Idle 0 52.2 0
∑ssj_ops / ∑power = 4,846
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2288 V2
Form Factor: 2U
CPU Name: Intel Xeon E5-2650L
CPU Characteristics: 8-Core, 1.80 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 2.3 GHz)
CPU Frequency (MHz): 1800
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Huawei P/N PW98080438
Disk Drive: 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -Xmx1500m -Xms1500m -Xmn1100m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [0x0F,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: V014
Management Firmware Version: 3.02
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Tecal RH2280 Rack Server
CPU Description: Intel Xeon E5642 2.8 GHz
Memory amount (GB): 4
Software
Operating System (OS): Microsoft Windows Server 2003 SP2
JVM Vendor: Oracle
JVM Version: Oracle Java R27.6.0-jre1.6.0_07-ia32
CCS Version: 1.2.5
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91F522082
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: 2GB11003462-0020
Date of Calibration: 4-May-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: none
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 161 21.6
90% 146 21.6
80% 131 21.6
70% 117 21.7
60% 106 21.8
50% 100 21.8
40% 94.2 21.8
30% 87.3 21.8
20% 80.2 21.9
10% 72.5 21.9
Active Idle 52.2 21.9
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 21.6 101
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,016,581
Calibration 2     1,012,870
Calibration 3     1,010,315
ssj_ops@calibrated=1,011,593
100% 99.6% 1,011,593 1,007,084
90% 89.8% 910,433 908,075
80% 80.2% 809,274 811,266
70% 70.1% 708,115 709,076
60% 59.9% 606,956 606,148
50% 49.9% 505,796 504,305
40% 40.2% 404,637 406,185
30% 30.1% 303,478 304,096
20% 20.0% 202,319 202,298
10% 10.0% 101,159 100,821
Active Idle   0 0

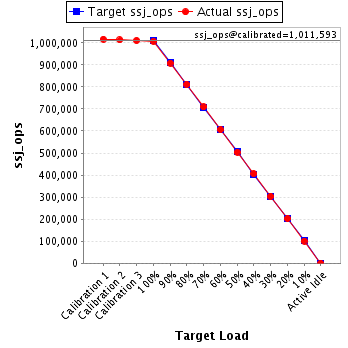

Graph of results
