SPECpower_ssj2008 Host 'WIN-PA1G5JJORI3' Performance Report

SPECpower_ssj2008

Host 'WIN-PA1G5JJORI3' Performance Report

Huawei Technologies Co., Ltd RH2288 V2			ssj_ops@100% = 1,007,084 ssj_ops@100% per JVM = 125,885
Test Sponsor:	Huawei Technologies Co., Ltd	SPEC License #:	3175	Test Method:	Single Node
Tested By:	Huawei Technologies Co., Ltd	Test Location:	Shenzhen, Guangdong, China	Test Date:	Apr 25, 2012
Hardware Availability:	Mar-2012	Software Availability:	Dec-2011	Publication:	May 16, 2012
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,016,581
Calibration 2			1,012,870
Calibration 3			1,010,315
ssj_ops@calibrated=1,011,593
100%	99.6%	1,011,593	1,007,084
90%	89.8%	910,433	908,075
80%	80.2%	809,274	811,266
70%	70.1%	708,115	709,076
60%	59.9%	606,956	606,148
50%	49.9%	505,796	504,305
40%	40.2%	404,637	406,185
30%	30.1%	303,478	304,096
20%	20.0%	202,319	202,298
10%	10.0%	101,159	100,821
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	None

Hardware
Hardware Vendor:	Huawei Technologies Co., Ltd
Model:	RH2288 V2
Form Factor:	2U
CPU Name:	Intel Xeon E5-2650L
CPU Characteristics:	8-Core, 1.80 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 2.3 GHz)
CPU Frequency (MHz):	1800
CPU(s) Enabled:	16 cores, 2 chips, 8 cores/chip
Hardware Threads:	32 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	20 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	16
# and size of DIMM:	4 x 4 GB
Memory Details:	4GB 2Rx8 PC3L-10600R ECC
Power Supply Quantity and Rating (W):	1 x 460
Power Supply Details:	Huawei P/N PW98080438
Disk Drive:	1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Saver enabled in OS
Operating System (OS):	Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version:	R2 SP1
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options:	-server -Xmx1500m -Xms1500m -Xmn1100m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /affinity [0x0F,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000]
JVM Instances:	8
JVM Initial Heap (MB):	1500
JVM Maximum Heap (MB):	1500
JVM Address Bits:	64
Boot Firmware Version:	V014
Management Firmware Version:	3.02
Workload Version:	SSJ 1.2.9
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Hardware prefetcher -disabled.
Adjacent Cache Line Prefetch -disabled.
DCU Streamer Prefetcher -disabled.
Intel HT Technology -enabled.
Turbo mode -enabled.
C-state -enabled.
Power Mode -Efficiency.
QPI Link Speed -6.4GT/s.
Memory Frequency Limit -1333MHz.
Demand Scrubbing -disabled.
USB configuration EHCI 2 -disabled.

Management Firmware Settings

none

System Under Test Notes

The test was started via Remote Desktop.
Minimum Processor State: 0%.
Maximum Processor State: 100%.
Turn off hard disk after 1 minute .
Each JVM instance was affinitized to two logical processors.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-PA1G5JJORI3.001	126,344
WIN-PA1G5JJORI3.002	125,388
WIN-PA1G5JJORI3.003	125,597
WIN-PA1G5JJORI3.004	125,849
WIN-PA1G5JJORI3.005	125,711
WIN-PA1G5JJORI3.006	125,477
WIN-PA1G5JJORI3.007	126,240
WIN-PA1G5JJORI3.008	126,478
ssj_ops@100%	1,007,084
ssj_ops@100% per JVM	125,885

JVM 'WIN-PA1G5JJORI3.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			127,421
Calibration 2			126,960
Calibration 3			126,586
ssj_ops@calibrated=126,773
100%	99.7%	126,773	126,344
90%	89.9%	114,096	113,932
80%	79.8%	101,418	101,134
70%	70.2%	88,741	89,028
60%	58.9%	76,064	74,667
50%	49.9%	63,386	63,258
40%	39.9%	50,709	50,639
30%	30.1%	38,032	38,122
20%	19.9%	25,355	25,257
10%	10.1%	12,677	12,749
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-PA1G5JJORI3.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			126,447
Calibration 2			126,403
Calibration 3			125,889
ssj_ops@calibrated=126,146
100%	99.4%	126,146	125,388
90%	89.7%	113,531	113,124
80%	80.3%	100,917	101,254
70%	69.9%	88,302	88,197
60%	60.2%	75,688	75,959
50%	50.3%	63,073	63,417
40%	40.2%	50,458	50,733
30%	30.0%	37,844	37,841
20%	20.2%	25,229	25,503
10%	9.9%	12,615	12,508
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-PA1G5JJORI3.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			126,558
Calibration 2			126,256
Calibration 3			125,714
ssj_ops@calibrated=125,985
100%	99.7%	125,985	125,597
90%	89.4%	113,387	112,657
80%	80.5%	100,788	101,453
70%	69.9%	88,190	88,044
60%	59.8%	75,591	75,351
50%	49.9%	62,993	62,856
40%	40.1%	50,394	50,489
30%	29.5%	37,796	37,175
20%	20.4%	25,197	25,681
10%	10.3%	12,599	12,937
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-PA1G5JJORI3.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			126,077
Calibration 2			126,961
Calibration 3			126,508
ssj_ops@calibrated=126,734
100%	99.3%	126,734	125,849
90%	89.4%	114,061	113,362
80%	80.0%	101,388	101,414
70%	70.3%	88,714	89,058
60%	60.6%	76,041	76,789
50%	50.4%	63,367	63,832
40%	40.1%	50,694	50,815
30%	29.8%	38,020	37,806
20%	19.7%	25,347	24,907
10%	10.3%	12,673	13,012
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-PA1G5JJORI3.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			128,052
Calibration 2			126,998
Calibration 3			126,646
ssj_ops@calibrated=126,822
100%	99.1%	126,822	125,711
90%	90.1%	114,140	114,228
80%	79.5%	101,458	100,864
70%	70.2%	88,776	89,022
60%	59.9%	76,093	75,928
50%	49.7%	63,411	63,091
40%	39.6%	50,729	50,232
30%	30.3%	38,047	38,454
20%	19.9%	25,364	25,240
10%	9.7%	12,682	12,358
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-PA1G5JJORI3.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			126,894
Calibration 2			125,944
Calibration 3			125,484
ssj_ops@calibrated=125,714
100%	99.8%	125,714	125,477
90%	89.0%	113,142	111,856
80%	80.4%	100,571	101,027
70%	70.4%	88,000	88,535
60%	60.0%	75,428	75,416
50%	49.4%	62,857	62,150
40%	40.5%	50,286	50,886
30%	30.2%	37,714	37,924
20%	20.0%	25,143	25,126
10%	9.8%	12,571	12,266
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-PA1G5JJORI3.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			127,787
Calibration 2			126,748
Calibration 3			126,835
ssj_ops@calibrated=126,792
100%	99.6%	126,792	126,240
90%	90.3%	114,112	114,507
80%	79.9%	101,433	101,347
70%	70.1%	88,754	88,851
60%	60.4%	76,075	76,597
50%	49.9%	63,396	63,250
40%	40.8%	50,717	51,736
30%	30.7%	38,037	38,922
20%	19.9%	25,358	25,269
10%	9.9%	12,679	12,562
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

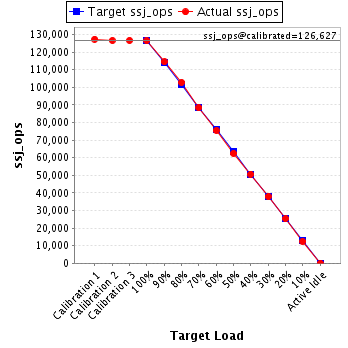

JVM 'WIN-PA1G5JJORI3.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			127,345
Calibration 2			126,600
Calibration 3			126,653
ssj_ops@calibrated=126,627
100%	99.9%	126,627	126,478
90%	90.3%	113,964	114,407
80%	81.2%	101,301	102,774
70%	69.8%	88,639	88,341
60%	59.6%	75,976	75,440
50%	49.3%	63,313	62,450
40%	40.0%	50,651	50,655
30%	29.9%	37,988	37,852
20%	20.0%	25,325	25,316
10%	9.8%	12,663	12,431
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
