SPECpower_ssj2008
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Hitachi, Ltd. HA8000/RS110 (DL) | SPECpower_ssj2008 = 2,876 overall ssj_ops/watt | ||||
| Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Single Node |
| Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Aug 3, 2011 |
| Hardware Availability: | Jun-2011 | Software Availability: | Feb-2011 | Publication: | Aug 24, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

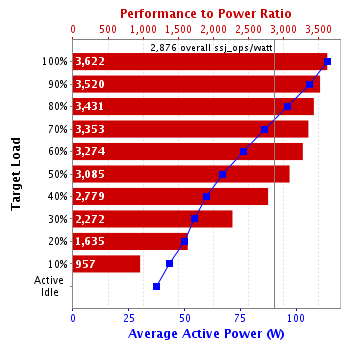

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.8% | 412,411 | 114 | 3,622 |
| 90% | 90.1% | 372,248 | 106 | 3,520 |
| 80% | 79.6% | 328,874 | 95.8 | 3,431 |
| 70% | 69.7% | 287,882 | 85.9 | 3,353 |
| 60% | 60.4% | 249,494 | 76.2 | 3,274 |
| 50% | 50.1% | 207,164 | 67.2 | 3,085 |
| 40% | 40.3% | 166,305 | 59.8 | 2,779 |
| 30% | 29.8% | 123,267 | 54.3 | 2,272 |
| 20% | 19.8% | 81,965 | 50.1 | 1,635 |
| 10% | 10.0% | 41,289 | 43.1 | 957 |
| Active Idle | 0 | 37.6 | 0 | |
| ∑ssj_ops / ∑power = | 2,876 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hitachi, Ltd. |
| Model: | HA8000/RS110 (DL) |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon E3-1280 |
| CPU Characteristics: | Quad Core, 3.50GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 3500 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 8 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3-10600E ECC CL9; slots DIMM_#2 and DIMM_#4 populated |
| Power Supply Quantity and Rating (W): | 1 x 400 |
| Power Supply Details: | DELTA DPS-400AB-12A |
| Disk Drive: | 1 x 250GB SATA (Hitachi P/N:GQ-UH72505C) |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Broadcom BCM5718 Dual-Port Gigabit Ethernet Controller (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Power saver) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Standard SP1 |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049(JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1950m -Xmx1950m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start/affinity [F,F0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1950 |
| JVM Maximum Heap (MB): | 1950 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 1.04 |
| Management Firmware Version: | 06.14 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | IBM WebSphere Application Server V7.0 for Windows on x86-64bit |
| Hardware | |
|---|---|
| Hardware Vendor: | Hitachi, Ltd. |
| Model: | HA8000/RS110 (AH) |
| CPU Description: | Intel Pentium E5200 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise 32-bit SP2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java(TM) SE Runtime Environment (build 1.6.0_17-b04) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91K717967 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Calibration Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | Yokogawa Meters & Instruments Corporation |
| Calibration Label: | S2011-06-52513 |
| Date of Calibration: | 28-Jun-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 114 | 23.6 |
| 90% | 106 | 23.6 |
| 80% | 95.8 | 23.6 |
| 70% | 85.9 | 23.6 |
| 60% | 76.2 | 23.6 |
| 50% | 67.2 | 23.6 |
| 40% | 59.8 | 23.5 |
| 30% | 54.3 | 23.5 |
| 20% | 50.1 | 23.4 |
| 10% | 43.1 | 23.4 |
| Active Idle | 37.6 | 23.4 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 100V / 50 Hz / 1 phase / 2 wires | 23.4 | 105 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 411,634 | ||
| Calibration 2 | 412,609 | ||
| Calibration 3 | 413,699 | ||
| ssj_ops@calibrated=413,154 | |||
| 100% | 99.8% | 413,154 | 412,411 |
| 90% | 90.1% | 371,839 | 372,248 |
| 80% | 79.6% | 330,523 | 328,874 |
| 70% | 69.7% | 289,208 | 287,882 |
| 60% | 60.4% | 247,893 | 249,494 |
| 50% | 50.1% | 206,577 | 207,164 |
| 40% | 40.3% | 165,262 | 166,305 |
| 30% | 29.8% | 123,946 | 123,267 |
| 20% | 19.8% | 82,631 | 81,965 |
| 10% | 10.0% | 41,315 | 41,289 |
| Active Idle | 0 | 0 | |
