SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Hitachi, Ltd. HA8000/RS110 (DL) | SPECpower_ssj2008 = 2,876 overall ssj_ops/watt | ||||
| Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Single Node |
| Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Aug 3, 2011 |
| Hardware Availability: | Jun-2011 | Software Availability: | Feb-2011 | Publication: | Aug 24, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

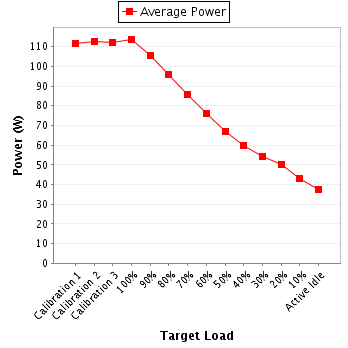

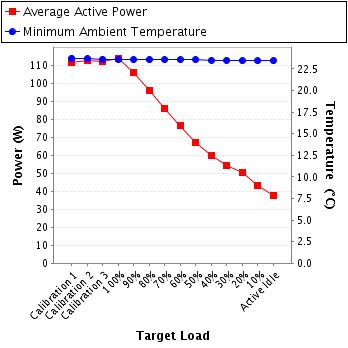

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 112 | 23.8 |
| Calibration 2 | 113 | 23.7 |
| Calibration 3 | 112 | 23.6 |
| 100% | 114 | 23.6 |
| 90% | 106 | 23.6 |
| 80% | 95.8 | 23.6 |
| 70% | 85.9 | 23.6 |
| 60% | 76.2 | 23.6 |
| 50% | 67.2 | 23.6 |
| 40% | 59.8 | 23.5 |
| 30% | 54.3 | 23.5 |
| 20% | 50.1 | 23.4 |
| 10% | 43.1 | 23.4 |
| Active Idle | 37.6 | 23.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91K717967 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Calibration Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | Yokogawa Meters & Instruments Corporation |
| Calibration Label: | S2011-06-52513 |
| Date of Calibration: | 28-Jun-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 99.9 | 150.0 | 1.12 | 2.0 | 0.993 | 112 | 0.4% |
| Calibration 2 | 99.9 | 150.0 | 1.14 | 2.0 | 0.993 | 113 | 0.4% |
| Calibration 3 | 99.9 | 150.0 | 1.13 | 2.0 | 0.993 | 112 | 0.4% |
| 100% | 99.9 | 150.0 | 1.15 | 2.0 | 0.993 | 114 | 0.4% |
| 90% | 99.9 | 150.0 | 1.07 | 2.0 | 0.989 | 106 | 0.4% |
| 80% | 100.0 | 150.0 | 0.976 | 1.0 | 0.984 | 95.8 | 0.3% |
| 70% | 100.0 | 150.0 | 0.879 | 1.0 | 0.979 | 85.9 | 0.3% |
| 60% | 100.0 | 150.0 | 0.782 | 1.0 | 0.977 | 76.2 | 0.3% |
| 50% | 100.0 | 150.0 | 0.690 | 1.0 | 0.974 | 67.2 | 0.4% |
| 40% | 100 | 150.0 | 0.616 | 1.0 | 0.972 | 59.8 | 0.4% |
| 30% | 100 | 150.0 | 0.561 | 1.0 | 0.967 | 54.3 | 0.4% |
| 20% | 100 | 150.0 | 0.522 | 1.0 | 0.961 | 50.1 | 0.5% |
| 10% | 100 | 150.0 | 0.455 | 1.0 | 0.949 | 43.1 | 0.5% |
| Active Idle | 100 | 150.0 | 0.396 | 0.5 | 0.952 | 37.6 | 0.4% |
