SPECpower_ssj2008
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Acer Incorporated Gateway GR585 F1 | SPECpower_ssj2008 = 2,350 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Apr 6, 2011 |
| Hardware Availability: | Feb-2011 | Software Availability: | Dec-2009 | Publication: | May 4, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

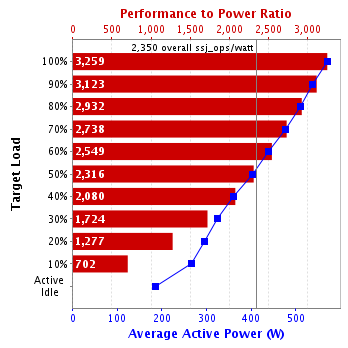

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 1,861,672 | 571 | 3,259 |
| 90% | 89.9% | 1,678,930 | 538 | 3,123 |
| 80% | 80.2% | 1,497,758 | 511 | 2,932 |
| 70% | 70.0% | 1,307,919 | 478 | 2,738 |
| 60% | 59.8% | 1,118,037 | 439 | 2,549 |
| 50% | 49.9% | 931,463 | 402 | 2,316 |
| 40% | 40.1% | 749,161 | 360 | 2,080 |
| 30% | 29.9% | 558,806 | 324 | 1,724 |
| 20% | 20.2% | 376,859 | 295 | 1,277 |
| 10% | 10.0% | 186,949 | 266 | 702 |
| Active Idle | 0 | 185 | 0 | |
| ∑ssj_ops / ∑power = | 2,350 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Gateway GR585 F1 |
| Form Factor: | 2U |
| CPU Name: | AMD Opteron 6176 |
| CPU Characteristics: | 12-Core, 2.30 GHz, 12 MB L3 cache |
| CPU Frequency (MHz): | 2300 |
| CPU(s) Enabled: | 48 cores, 4 chips, 12 cores/chip |
| Hardware Threads: | 48 (1 / core) |
| CPU(s) Orderable: | 2, 4 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 6 cores |
| Other Cache: | None |
| Memory Amount (GB): | 32 |
| # and size of DIMM: | 16 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC3-10600E; slots 1A, 2A, 3A, and 4A populated on each processor |
| Power Supply Quantity and Rating (W): | 1 x 1400 |
| Power Supply Details: | PWS-1K41F-1R |
| Disk Drive: | 1 x 500GB SATA2 7200 RPM 3.5" HDD, Acer part #KH.500W8.019 |
| Disk Controller: | Integrated SATA Controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x dual-port Intel 82576EB Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | PS2 |
| Mouse: | PS2 |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power saver enabled in OS |
| Operating System (OS): | Windows Server 2008 Enterprise |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xmn1400m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [3F,FC0,3F000,FC0000,3F000000,FC0000000,3F000000000,FC0000000000] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | T01 |
| Management Firmware Version: | 1.00 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | IBM Websphere Application Server V7.0 for Windows on x86-64bit |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Gateway GR160 F1 |
| CPU Description: | Intel L5520 |
| Memory amount (GB): | 3 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 R2, Enterprise Edition SP2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-ia32, compiled mode) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Calibration Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 10-06-BAC-041-01 |
| Date of Calibration: | 1-Jun-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 571 | 25.2 |
| 90% | 538 | 24.9 |
| 80% | 511 | 25.4 |
| 70% | 478 | 26.1 |
| 60% | 439 | 24.6 |
| 50% | 402 | 24.8 |
| 40% | 360 | 25.6 |
| 30% | 324 | 26.1 |
| 20% | 295 | 26.1 |
| 10% | 266 | 25.9 |
| Active Idle | 185 | 24.4 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 60 Hz / 1 phase / 2 wires | 24.4 | 132 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,869,533 | ||
| Calibration 2 | 1,867,444 | ||
| Calibration 3 | 1,869,230 | ||
| ssj_ops@calibrated=1,868,337 | |||
| 100% | 99.6% | 1,868,337 | 1,861,672 |
| 90% | 89.9% | 1,681,503 | 1,678,930 |
| 80% | 80.2% | 1,494,670 | 1,497,758 |
| 70% | 70.0% | 1,307,836 | 1,307,919 |
| 60% | 59.8% | 1,121,002 | 1,118,037 |
| 50% | 49.9% | 934,168 | 931,463 |
| 40% | 40.1% | 747,335 | 749,161 |
| 30% | 29.9% | 560,501 | 558,806 |
| 20% | 20.2% | 373,667 | 376,859 |
| 10% | 10.0% | 186,834 | 186,949 |
| Active Idle | 0 | 0 | |
