Acer Incorporated Gateway GR585 F1 ssj_ops@100% = 1,861,672
ssj_ops@100% per JVM = 232,709
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Apr 6, 2011
Hardware Availability: Feb-2011 Software Availability: Dec-2009 Publication: May 4, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,869,533
Calibration 2     1,867,444
Calibration 3     1,869,230
ssj_ops@calibrated=1,868,337
100% 99.6% 1,868,337 1,861,672
90% 89.9% 1,681,503 1,678,930
80% 80.2% 1,494,670 1,497,758
70% 70.0% 1,307,836 1,307,919
60% 59.8% 1,121,002 1,118,037
50% 49.9% 934,168 931,463
40% 40.1% 747,335 749,161
30% 29.9% 560,501 558,806
20% 20.2% 373,667 376,859
10% 10.0% 186,834 186,949
Active Idle   0 0

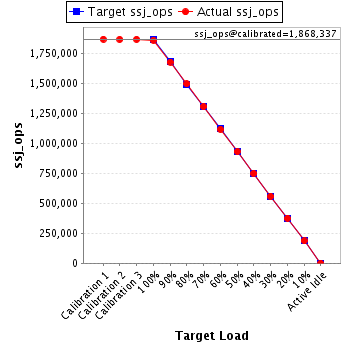

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GR585 F1
Form Factor: 2U
CPU Name: AMD Opteron 6176
CPU Characteristics: 12-Core, 2.30 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 48 cores, 4 chips, 12 cores/chip
Hardware Threads: 48 (1 / core)
CPU(s) Orderable: 2, 4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 16 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A, 2A, 3A, and 4A populated on each processor
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: PWS-1K41F-1R
Disk Drive: 1 x 500GB SATA2 7200 RPM 3.5" HDD, Acer part #KH.500W8.019
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: PS2
Mouse: PS2
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver enabled in OS
Operating System (OS): Windows Server 2008 Enterprise
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1400m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [3F,FC0,3F000,FC0000,3F000000,FC0000000,3F000000000,FC0000000000]
JVM Instances: 8
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: T01
Management Firmware Version: 1.00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-CHT7NBLTVIG.001 231,767
WIN-CHT7NBLTVIG.002 235,517
WIN-CHT7NBLTVIG.003 237,197
WIN-CHT7NBLTVIG.004 244,038
WIN-CHT7NBLTVIG.005 234,945
WIN-CHT7NBLTVIG.006 231,814
WIN-CHT7NBLTVIG.007 231,872
WIN-CHT7NBLTVIG.008 214,522
ssj_ops@100% 1,861,672
ssj_ops@100% per JVM 232,709

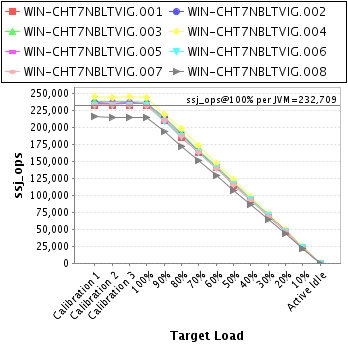

Graph of per-instance results
JVM 'WIN-CHT7NBLTVIG.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     231,806
Calibration 2     232,547
Calibration 3     232,316
ssj_ops@calibrated=232,432
100% 99.7% 232,432 231,767
90% 90.1% 209,188 209,474
80% 79.8% 185,945 185,482
70% 70.2% 162,702 163,172
60% 60.5% 139,459 140,608
50% 49.2% 116,216 114,454
40% 40.3% 92,973 93,589
30% 29.8% 69,729 69,354
20% 20.4% 46,486 47,339
10% 10.0% 23,243 23,265
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CHT7NBLTVIG.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     236,390
Calibration 2     235,888
Calibration 3     236,137
ssj_ops@calibrated=236,013
100% 99.8% 236,013 235,517
90% 90.8% 212,411 214,322
80% 80.2% 188,810 189,182
70% 69.7% 165,209 164,422
60% 59.8% 141,608 141,091
50% 49.7% 118,006 117,399
40% 40.0% 94,405 94,395
30% 30.2% 70,804 71,237
20% 20.1% 47,203 47,344
10% 10.0% 23,601 23,703
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CHT7NBLTVIG.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     238,069
Calibration 2     238,339
Calibration 3     238,651
ssj_ops@calibrated=238,495
100% 99.5% 238,495 237,197
90% 89.3% 214,646 212,975
80% 79.9% 190,796 190,470
70% 69.8% 166,947 166,585
60% 59.8% 143,097 142,623
50% 50.1% 119,248 119,378
40% 39.9% 95,398 95,130
30% 29.8% 71,549 70,997
20% 20.0% 47,699 47,695
10% 10.2% 23,850 24,413
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CHT7NBLTVIG.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     245,797
Calibration 2     244,694
Calibration 3     245,889
ssj_ops@calibrated=245,292
100% 99.5% 245,292 244,038
90% 89.4% 220,763 219,318
80% 81.0% 196,233 198,678
70% 70.4% 171,704 172,615
60% 59.8% 147,175 146,783
50% 50.0% 122,646 122,692
40% 40.1% 98,117 98,383
30% 29.9% 73,588 73,275
20% 20.2% 49,058 49,494
10% 10.0% 24,529 24,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CHT7NBLTVIG.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     234,964
Calibration 2     235,297
Calibration 3     235,629
ssj_ops@calibrated=235,463
100% 99.8% 235,463 234,945
90% 89.1% 211,917 209,822
80% 79.6% 188,370 187,534
70% 69.5% 164,824 163,739
60% 59.4% 141,278 139,830
50% 50.1% 117,732 117,968
40% 39.9% 94,185 93,992
30% 29.8% 70,639 70,102
20% 20.2% 47,093 47,657
10% 9.9% 23,546 23,324
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CHT7NBLTVIG.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     232,900
Calibration 2     232,138
Calibration 3     232,514
ssj_ops@calibrated=232,326
100% 99.8% 232,326 231,814
90% 89.7% 209,093 208,498
80% 80.1% 185,861 186,172
70% 70.1% 162,628 162,764
60% 59.9% 139,396 139,188
50% 50.1% 116,163 116,349
40% 40.3% 92,930 93,573
30% 30.1% 69,698 69,968
20% 20.1% 46,465 46,603
10% 10.1% 23,233 23,382
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CHT7NBLTVIG.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     233,045
Calibration 2     233,310
Calibration 3     232,893
ssj_ops@calibrated=233,102
100% 99.5% 233,102 231,872
90% 90.6% 209,792 211,174
80% 80.5% 186,481 187,671
70% 70.2% 163,171 163,723
60% 59.7% 139,861 139,122
50% 49.7% 116,551 115,901
40% 39.9% 93,241 93,110
30% 29.8% 69,931 69,442
20% 20.2% 46,620 47,119
10% 9.9% 23,310 22,973
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CHT7NBLTVIG.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,563
Calibration 2     215,230
Calibration 3     215,200
ssj_ops@calibrated=215,215
100% 99.7% 215,215 214,522
90% 89.8% 193,693 193,346
80% 80.2% 172,172 172,569
70% 70.1% 150,650 150,898
60% 59.8% 129,129 128,792
50% 49.9% 107,607 107,324
40% 40.4% 86,086 86,989
30% 29.9% 64,564 64,431
20% 20.3% 43,043 43,608
10% 9.9% 21,521 21,413
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
