Acer Incorporated Gateway GW2000h-GW170h F1 ssj_ops@100% = 3,732,850
ssj_ops@100% per Host = 933,213
ssj_ops@100% per JVM = 155,535
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Various
Hardware Availability: Feb-2011 Software Availability: Dec-2009 Publication: Mar 23, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,741,974
Calibration 2     3,752,685
Calibration 3     3,741,038
ssj_ops@calibrated=3,746,861
100% 99.6% 3,746,861 3,732,850
90% 90.1% 3,372,175 3,377,289
80% 80.0% 2,997,489 2,997,739
70% 69.8% 2,622,803 2,616,889
60% 59.9% 2,248,117 2,243,512
50% 49.9% 1,873,431 1,871,202
40% 40.0% 1,498,745 1,499,342
30% 30.0% 1,124,058 1,124,429
20% 20.0% 749,372 749,514
10% 10.1% 374,686 376,644
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 48 96 96.0 4 24
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Gateway GW2000h
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: PWS-1K41P-1R
Network Switch: 16-PORT Gigabit Switch
Network Switch Details: D-Link DGS-1016T
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch is a standalone device and is not included in the measured power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: Acer Incorporated
Model: Gateway GW2000h-GW170h F1
Form Factor: 2U
CPU Name: Intel Xeon X5675
CPU Characteristics: Six-Core, 3.07 GHz, 12 MB L3 cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1A, 2A, and 3A populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB SATA 3.5" HDD, Acer part #KH.500W8.019
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: USB
Mouse: USB
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1550m -Xms1950m -Xmx1950m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: P08
Management Firmware Version: 1.20
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
WIN-8T20LUSKNOV 930,425
WIN-R61MSQUQQU7 932,272
WIN-TDM3C83C35P 935,859
WIN-ULK8O9BFFGJ 934,294
ssj_ops@100% 3,732,850
ssj_ops@100% per Host 933,213
ssj_ops@100% per JVM 155,535

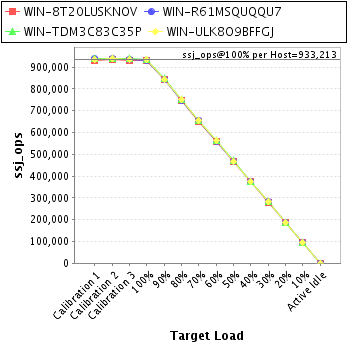

Graph of per-host results
Host 'WIN-8T20LUSKNOV' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     931,348
Calibration 2     935,328
Calibration 3     929,936
ssj_ops@calibrated=932,632
100% 99.8% 932,632 930,425
90% 90.4% 839,369 843,317
80% 80.1% 746,106 747,416
70% 69.6% 652,842 649,514
60% 59.9% 559,579 558,630
50% 49.9% 466,316 465,626
40% 40.2% 373,053 375,267
30% 30.0% 279,790 279,592
20% 20.0% 186,526 186,345
10% 10.0% 93,263 93,715
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-R61MSQUQQU7' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     937,996
Calibration 2     938,499
Calibration 3     936,762
ssj_ops@calibrated=937,631
100% 99.4% 937,631 932,272
90% 89.9% 843,868 842,612
80% 79.6% 750,104 746,625
70% 70.1% 656,341 657,146
60% 59.6% 562,578 559,274
50% 49.9% 468,815 467,770
40% 40.1% 375,052 375,577
30% 30.1% 281,289 282,268
20% 20.0% 187,526 187,061
10% 10.0% 93,763 93,644
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-TDM3C83C35P' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     940,121
Calibration 2     940,783
Calibration 3     939,215
ssj_ops@calibrated=939,999
100% 99.6% 939,999 935,859
90% 90.0% 845,999 846,342
80% 80.1% 751,999 753,384
70% 69.5% 657,999 653,280
60% 59.9% 563,999 562,985
50% 50.0% 470,000 469,605
40% 39.9% 376,000 375,112
30% 29.9% 282,000 281,296
20% 20.0% 188,000 187,788
10% 10.1% 94,000 94,496
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-ULK8O9BFFGJ' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     932,509
Calibration 2     938,074
Calibration 3     935,125
ssj_ops@calibrated=936,600
100% 99.8% 936,600 934,294
90% 90.2% 842,940 845,017
80% 80.1% 749,280 750,314
70% 70.1% 655,620 656,949
60% 60.1% 561,960 562,623
50% 50.0% 468,300 468,201
40% 39.9% 374,640 373,385
30% 30.0% 280,980 281,272
20% 20.1% 187,320 188,321
10% 10.1% 93,660 94,790
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
