Acer Incorporated Gateway GW2000h-GW170h F1 ssj_ops@100% = 935,859
ssj_ops@100% per JVM = 155,977
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Mar 8, 2011
Hardware Availability: Feb-2011 Software Availability: Dec-2009 Publication: Mar 23, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     940,121
Calibration 2     940,783
Calibration 3     939,215
ssj_ops@calibrated=939,999
100% 99.6% 939,999 935,859
90% 90.0% 845,999 846,342
80% 80.1% 751,999 753,384
70% 69.5% 657,999 653,280
60% 59.9% 563,999 562,985
50% 50.0% 470,000 469,605
40% 39.9% 376,000 375,112
30% 29.9% 282,000 281,296
20% 20.0% 188,000 187,788
10% 10.1% 94,000 94,496
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GW2000h-GW170h F1
Form Factor: 2U
CPU Name: Intel Xeon X5675
CPU Characteristics: Six-Core, 3.07 GHz, 12 MB L3 cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1A, 2A, and 3A populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB SATA 3.5" HDD, Acer part #KH.500W8.019
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: USB
Mouse: USB
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1550m -Xms1950m -Xmx1950m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: P08
Management Firmware Version: 1.20
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-TDM3C83C35P.001 157,733
WIN-TDM3C83C35P.002 155,189
WIN-TDM3C83C35P.003 157,510
WIN-TDM3C83C35P.004 157,708
WIN-TDM3C83C35P.005 152,765
WIN-TDM3C83C35P.006 154,953
ssj_ops@100% 935,859
ssj_ops@100% per JVM 155,977

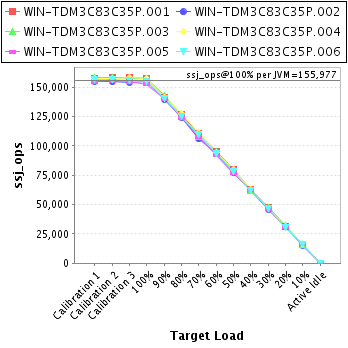

Graph of per-instance results
JVM 'WIN-TDM3C83C35P.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,765
Calibration 2     158,285
Calibration 3     158,582
ssj_ops@calibrated=158,433
100% 99.6% 158,433 157,733
90% 89.4% 142,590 141,619
80% 79.9% 126,747 126,605
70% 69.9% 110,903 110,729
60% 59.9% 95,060 94,860
50% 50.3% 79,217 79,665
40% 39.6% 63,373 62,789
30% 30.3% 47,530 47,941
20% 19.9% 31,687 31,510
10% 9.8% 15,843 15,586
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TDM3C83C35P.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,028
Calibration 2     154,716
Calibration 3     154,338
ssj_ops@calibrated=154,527
100% 100.4% 154,527 155,189
90% 90.3% 139,074 139,573
80% 80.4% 123,622 124,192
70% 68.6% 108,169 105,929
60% 60.3% 92,716 93,162
50% 50.1% 77,263 77,468
40% 40.4% 61,811 62,391
30% 29.9% 46,358 46,203
20% 20.1% 30,905 31,064
10% 10.0% 15,453 15,472
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TDM3C83C35P.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     158,110
Calibration 2     158,159
Calibration 3     157,741
ssj_ops@calibrated=157,950
100% 99.7% 157,950 157,510
90% 90.4% 142,155 142,816
80% 79.8% 126,360 126,040
70% 68.5% 110,565 108,234
60% 60.2% 94,770 95,101
50% 49.5% 78,975 78,150
40% 39.2% 63,180 61,884
30% 30.1% 47,385 47,512
20% 20.2% 31,590 31,908
10% 9.9% 15,795 15,616
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TDM3C83C35P.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,723
Calibration 2     157,721
Calibration 3     157,983
ssj_ops@calibrated=157,852
100% 99.9% 157,852 157,708
90% 89.5% 142,067 141,296
80% 80.6% 126,282 127,281
70% 70.4% 110,496 111,178
60% 59.9% 94,711 94,609
50% 50.4% 78,926 79,599
40% 40.0% 63,141 63,169
30% 29.7% 47,356 46,956
20% 20.0% 31,570 31,637
10% 10.0% 15,785 15,842
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TDM3C83C35P.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,717
Calibration 2     155,382
Calibration 3     154,845
ssj_ops@calibrated=155,114
100% 98.5% 155,114 152,765
90% 90.4% 139,602 140,288
80% 80.1% 124,091 124,198
70% 69.5% 108,580 107,731
60% 59.2% 93,068 91,844
50% 49.5% 77,557 76,757
40% 40.3% 62,045 62,491
30% 29.7% 46,534 46,117
20% 19.8% 31,023 30,787
10% 10.3% 15,511 16,046
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TDM3C83C35P.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,779
Calibration 2     156,521
Calibration 3     155,726
ssj_ops@calibrated=156,123
100% 99.3% 156,123 154,953
90% 90.2% 140,511 140,750
80% 80.1% 124,899 125,068
70% 70.1% 109,286 109,478
60% 59.8% 93,674 93,410
50% 49.9% 78,062 77,965
40% 40.0% 62,449 62,388
30% 29.8% 46,837 46,566
20% 19.8% 31,225 30,880
10% 10.2% 15,612 15,934
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
