Hewlett-Packard Company ProLiant DL580 G5 (Historical) SPECpower_ssj2008 = 489 overall ssj_ops/watt
Test Sponsor: Intel Corp. SPEC License #: 3184 Test Method: Single Node
Tested By: Principled Technologies, Inc. Test Location: Durham, NC, USA Test Date: Sep 2, 2010
Hardware Availability: Jan-2008 Software Availability: May-2009 Publication: Feb 23, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 506,388 627 808
90% 90.0% 458,389 611 750
80% 80.1% 407,494 591 690
70% 70.1% 356,984 566 631
60% 60.0% 305,461 538 568
50% 49.7% 252,771 511 495
40% 40.1% 203,897 490 416
30% 29.8% 151,489 472 321
20% 20.2% 102,587 455 226
10% 10.1% 51,498 438 118
Active Idle 0 418 0
∑ssj_ops / ∑power = 489

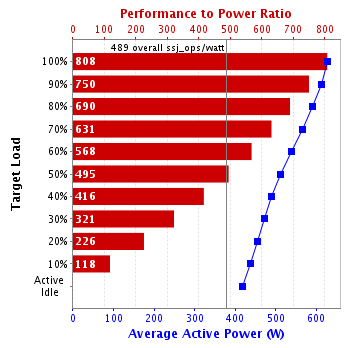

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL580 G5
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL580 G5 (Historical)
Form Factor: 4U
CPU Name: Intel Xeon Processor E7330
CPU Characteristics: Quad-Core, 2.40 GHz, 6 MB L2 Cache, 1066 MHz system bus
CPU Frequency (MHz): 2400
CPU(s) Enabled: 16 cores, 4 chips, 4 cores/chip
Hardware Threads: 16 (1 / core)
CPU(s) Orderable: 4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 16 x 4096 MB
Memory Details: 4GB 2Rx4 PC2-5300F ECC CL5; all slots populated
Power Supply Quantity and Rating (W): 2 x 1200
Power Supply Details: HP part #438202-001
Disk Drive: 2 x 72GB 15K RPM SAS RAID 1
Disk Controller: HP Smart Array P400 with 512MB RAM
# and type of Network Interface Cards (NICs) Installed: 2 x NC373i Multifunction Gigabit Network Adapters
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2003 R2, Enterprise x64 Edition
OS Version: SP2, Build 3790
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3700m -Xmx3700m -Xns3200m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=4k,preferred=512k -XX:+UseStringCache
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000]
JVM Instances: 8
JVM Initial Heap (MB): 3700
JVM Maximum Heap (MB): 3700
JVM Address Bits: 64
Boot Firmware Version: P61 2009.07.10
Management Firmware Version: 1.50 03/12/2008
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Hardware Prefetcher disabled in BIOS, Adjacent Cache Line Prefetch disabled in BIOS, HP Dynamic Power Savings Mode Enabled in BIOS
Management Firmware Settings
Default
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Super Micro Computer, Inc.
Model: Supermicro 6025W-NTR+V
CPU Description: Intel Xeon Processor E5472
Memory amount (GB): 16
Software
Operating System (OS): Microsoft Windows Server 2003, Enterprise Edition, Service Pack 2
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (build R27.5.0-110_o-99226-1.5.0_14-20080528-1505-windows-ia32, compiled mode)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB45373
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Davis Calibration
Calibration Label: 07-1673
Date of Calibration: 28-Jul-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main air intake
Notes
Used USB-to-Serial converter, Model Sabrent SBT-USC1M (driver version 2.0.2.1), to connect power analyzer to the controller.

This benchmark result is intended to provide perspective on past power and/or performance using the historical hardware and/or software described on this result page.

The system as described on this result page was formerly generally available. At the time of this publication, it may not be shipping, and/or may not be supported, and/or may fail to meet other tests of General Availability described in the SPEC OSG Policy document, http://www.spec.org/osg/policy.html

This measured result may not be representative of the result that would be measured were this benchmark run with hardware and software available as of the publication date.

Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 627 21.1
90% 611 21.0
80% 591 21.0
70% 566 20.9
60% 538 21.0
50% 511 21.1
40% 490 21.1
30% 472 21.1
20% 455 21.0
10% 438 21.0
Active Idle 418 21.0
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 20.9 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     508,161
Calibration 2     509,079
Calibration 3     509,010
ssj_ops@calibrated=509,045
100% 99.5% 509,045 506,388
90% 90.0% 458,140 458,389
80% 80.1% 407,236 407,494
70% 70.1% 356,331 356,984
60% 60.0% 305,427 305,461
50% 49.7% 254,522 252,771
40% 40.1% 203,618 203,897
30% 29.8% 152,713 151,489
20% 20.2% 101,809 102,587
10% 10.1% 50,904 51,498
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
