SPECpower_ssj2008
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Acer Incorporated Acer AR180 F1(Intel Xeon X5670, 2.93 GHz) | SPECpower_ssj2008 = 2,485 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Nov 2, 2010 |
| Hardware Availability: | Jun-2010 | Software Availability: | Dec-2009 | Publication: | Dec 1, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

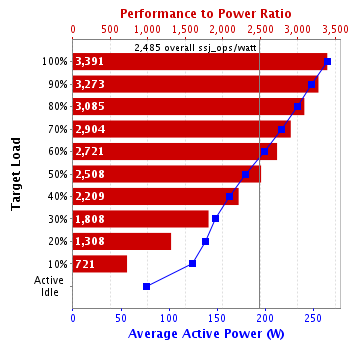

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 897,310 | 265 | 3,391 |
| 90% | 90.1% | 812,323 | 248 | 3,273 |
| 80% | 79.9% | 720,282 | 233 | 3,085 |
| 70% | 70.0% | 630,685 | 217 | 2,904 |
| 60% | 60.2% | 542,314 | 199 | 2,721 |
| 50% | 50.1% | 451,509 | 180 | 2,508 |
| 40% | 40.0% | 360,652 | 163 | 2,209 |
| 30% | 29.8% | 268,388 | 148 | 1,808 |
| 20% | 20.0% | 179,832 | 137 | 1,308 |
| 10% | 10.0% | 89,988 | 125 | 721 |
| Active Idle | 0 | 76.4 | 0 | |
| ∑ssj_ops / ∑power = | 2,485 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Acer AR180 F1(Intel Xeon X5670, 2.93 GHz) |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon X5670 |
| CPU Characteristics: | Six-Core, 2.93 GHz, 12 MB L3 cache |
| CPU Frequency (MHz): | 2933 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 12 |
| # and size of DIMM: | 6 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC3-10600E; slots 1A, 2A, and 3A populated on each processor |
| Power Supply Quantity and Rating (W): | 1 x 720 |
| Power Supply Details: | PWS-721P-1R |
| Disk Drive: | 1 x 64GB SSD 2.5" SATA(Intel SSDSA2SH064G1GC #899386) |
| Disk Controller: | onboard SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Dual-port Intel 82576EB Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | PS2 |
| Mouse: | PS2 |
| Monitor: | Direct |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power save enabled in OS |
| Operating System (OS): | Windows Server 2008, Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000] |
| JVM Instances: | 6 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | P05 |
| Management Firmware Version: | 1.01 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | IBM Websphere Application Server V7.0 for Windows on x86-64bit |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Gateway GR160 F1 |
| CPU Description: | Intel Xeon E5504 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2008 x64, Enterprise Edition SP2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Calibration Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 10-06-BAC-041-01 |
| Date of Calibration: | 10-Jun-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 265 | 24.5 |
| 90% | 248 | 24.2 |
| 80% | 233 | 24.4 |
| 70% | 217 | 24.7 |
| 60% | 199 | 24.9 |
| 50% | 180 | 24.3 |
| 40% | 163 | 24.3 |
| 30% | 148 | 24.6 |
| 20% | 137 | 24.8 |
| 10% | 125 | 25.0 |
| Active Idle | 76.4 | 24.6 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 60 Hz / 1 phase / 2 wires | 24.2 | 132 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 901,876 | ||
| Calibration 2 | 902,923 | ||
| Calibration 3 | 899,674 | ||
| ssj_ops@calibrated=901,298 | |||
| 100% | 99.6% | 901,298 | 897,310 |
| 90% | 90.1% | 811,168 | 812,323 |
| 80% | 79.9% | 721,039 | 720,282 |
| 70% | 70.0% | 630,909 | 630,685 |
| 60% | 60.2% | 540,779 | 542,314 |
| 50% | 50.1% | 450,649 | 451,509 |
| 40% | 40.0% | 360,519 | 360,652 |
| 30% | 29.8% | 270,389 | 268,388 |
| 20% | 20.0% | 180,260 | 179,832 |
| 10% | 10.0% | 90,130 | 89,988 |
| Active Idle | 0 | 0 | |
