Acer Incorporated Acer AR180 F1(Intel Xeon X5670, 2.93 GHz) SPECpower_ssj2008 = 2,485 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Nov 2, 2010
Hardware Availability: Jun-2010 Software Availability: Dec-2009 Publication: Dec 1, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 262 24.3
Calibration 2 267 24.6
Calibration 3 268 24.9
100% 265 24.5
90% 248 24.2
80% 233 24.4
70% 217 24.7
60% 199 24.9
50% 180 24.3
40% 163 24.3
30% 148 24.6
20% 137 24.8
10% 125 25.0
Active Idle 76.4 24.6

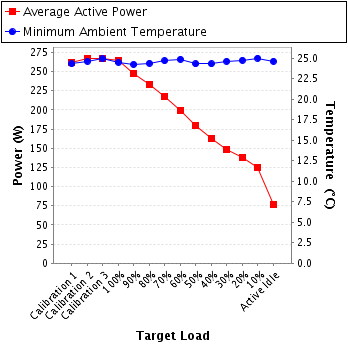

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Calibration Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 10-06-BAC-041-01
Date of Calibration: 10-Jun-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 222 300.0 1.23 2.0 0.960 262 0.4%
Calibration 2 222 300.0 1.25 2.0 0.960 267 0.4%
Calibration 3 222 300.0 1.26 2.0 0.961 268 0.4%
100% 222 300.0 1.24 2.0 0.960 265 0.4%
90% 222 300.0 1.17 2.0 0.957 248 0.4%
80% 222 300.0 1.10 2.0 0.954 233 0.4%
70% 222 300.0 1.03 1.0 0.949 217 0.3%
60% 222 300.0 0.953 1.0 0.944 199 0.3%
50% 222 300.0 0.867 1.0 0.937 180 0.3%
40% 222 300.0 0.792 1.0 0.930 163 0.4%
30% 222 300.0 0.726 1.0 0.922 148 0.4%
20% 222 300.0 0.677 1.0 0.915 137 0.4%
10% 222 300.0 0.622 1.0 0.905 125 0.4%
Active Idle 222 300.0 0.410 1.0 0.841 76.4 0.6%
Power details for pwr1
