Dell Inc. PowerEdge 2970 (AMD Opteron 2356, 2.30 GHz) SPECpower_ssj2008 = 545 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Dec 2, 2008
Hardware Availability: Nov-2007 Software Availability: Apr-2008 Publication: Jan 2, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 98.8% 247,542 302 820
90% 91.5% 229,155 292 784
80% 79.8% 199,958 277 723
70% 69.8% 174,813 263 666
60% 60.1% 150,648 249 604
50% 50.3% 126,027 236 533
40% 40.7% 101,850 223 457
30% 30.1% 75,426 205 368
20% 20.0% 50,116 185 271
10% 9.8% 24,509 164 150
Active Idle 0 139 0
∑ssj_ops / ∑power = 545

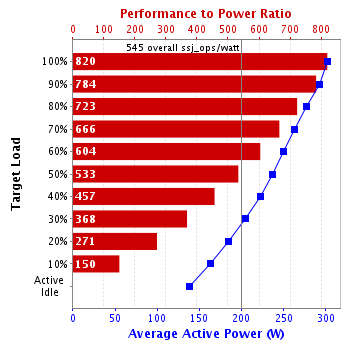

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge 2970 (AMD Opteron 2356, 2.30 GHz)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge 2970 (AMD Opteron 2356, 2.30 GHz)
Form Factor: --
CPU Name: AMD Opteron 2356
CPU Characteristics: Quad-Core, 2.30 GHz, 2 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 2 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: DDR2-667 CL6; Slots A1,A2 and B1,B2 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Dell Part Number GM266
Disk Drive: 1 x 73GB 10K RPM SAS
Disk Controller: SAS 6iR
# and type of Network Interface Cards (NICs) Installed: 2 x Onboard Gigabit NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Server Balanced Power and Performance)
Operating System (OS): Microsoft Windows Server 2003 R2 Enterprise x64 Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: Oracle Inc.
JVM Version: Oracle JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3700m -Xns3200m -Xmx3700m -XXaggressive -XXthroughputcompaction -XXlazyunlocking -XXcallprofiling -Xgc:genpar -XXgcthreads=4 -XXtlasize:min=4k,preferred=512k
JVM Affinity: start /affinity [0F,F0]
JVM Instances: 4
JVM Initial Heap (MB): 3700
JVM Maximum Heap (MB): 3700
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1.3
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge 1950
CPU Description: Intel Xeon 5160
Memory amount (GB): 4
Software
Operating System (OS): Microsoft Windows 2003 Server Enterprise Edition
JVM Vendor: BEA Systems, Inc.
JVM Version: JRockit(R) 1.6.0_02 build R26.4.0-63 (32-bit)
CCS Version: 1.1.3
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H648897
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Davis Calibration
Calibration Label: 2565983
Date of Calibration: 20-Aug-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.2-e0c92e60
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 302 23.9
90% 292 23.9
80% 277 23.9
70% 263 23.9
60% 249 23.9
50% 236 23.9
40% 223 23.9
30% 205 23.9
20% 185 23.9
10% 164 23.9
Active Idle 139 23.9
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 1 wire 23.9 255
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     250,902
Calibration 2     250,537
Calibration 3     250,417
ssj_ops@calibrated=250,477
100% 98.8% 250,477 247,542
90% 91.5% 225,429 229,155
80% 79.8% 200,382 199,958
70% 69.8% 175,334 174,813
60% 60.1% 150,286 150,648
50% 50.3% 125,238 126,027
40% 40.7% 100,191 101,850
30% 30.1% 75,143 75,426
20% 20.0% 50,095 50,116
10% 9.8% 25,048 24,509
Active Idle   0 0
Graph of results
