Dell Inc. PowerEdge 2970 (AMD Opteron 2356, 2.30 GHz) | ssj_ops@100% = 247,542 ssj_ops@100% per JVM = 123,771 |
||||
Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Dec 2, 2008 |
Hardware Availability: | Nov-2007 | Software Availability: | Apr-2008 | Publication: | Jan 2, 2009 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 250,902 | ||
Calibration 2 | 250,537 | ||
Calibration 3 | 250,417 | ||
ssj_ops@calibrated=250,477 | |||
100% | 98.8% | 250,477 | 247,542 |
90% | 91.5% | 225,429 | 229,155 |
80% | 79.8% | 200,382 | 199,958 |
70% | 69.8% | 175,334 | 174,813 |
60% | 60.1% | 150,286 | 150,648 |
50% | 50.3% | 125,238 | 126,027 |
40% | 40.7% | 100,191 | 101,850 |
30% | 30.1% | 75,143 | 75,426 |
20% | 20.0% | 50,095 | 50,116 |
10% | 9.8% | 25,048 | 24,509 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | PowerEdge 2970 (AMD Opteron 2356, 2.30 GHz) |
# of Identical Nodes: | 1 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Dell Inc. |
Model: | PowerEdge 2970 (AMD Opteron 2356, 2.30 GHz) |
Form Factor: | -- |
CPU Name: | AMD Opteron 2356 |
CPU Characteristics: | Quad-Core, 2.30 GHz, 2 MB L3 Cache |
CPU Frequency (MHz): | 2300 |
CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
Hardware Threads: | 8 (1 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per core |
Tertiary Cache: | 2 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 16 |
# and size of DIMM: | 4 x 4096 MB |
Memory Details: | DDR2-667 CL6; Slots A1,A2 and B1,B2 populated |
Power Supply Quantity and Rating (W): | 1 x 750 |
Power Supply Details: | Dell Part Number GM266 |
Disk Drive: | 1 x 73GB 10K RPM SAS |
Disk Controller: | SAS 6iR |
# and type of Network Interface Cards (NICs) Installed: | 2 x Onboard Gigabit NIC |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | KVM |
Mouse: | KVM |
Monitor: | KVM |
Optical Drives: | Yes |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (Server Balanced Power and Performance) |
Operating System (OS): | Microsoft Windows Server 2003 R2 Enterprise x64 Edition |
OS Version: | SP2 |
Filesystem: | NTFS |
JVM Vendor: | Oracle Inc. |
JVM Version: | Oracle JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode) |
JVM Command-line Options: | -Xms3700m -Xns3200m -Xmx3700m -XXaggressive -XXthroughputcompaction -XXlazyunlocking -XXcallprofiling -Xgc:genpar -XXgcthreads=4 -XXtlasize:min=4k,preferred=512k |
JVM Affinity: | start /affinity [0F,F0] |
JVM Instances: | 4 |
JVM Initial Heap (MB): | 3700 |
JVM Maximum Heap (MB): | 3700 |
JVM Address Bits: | 64 |
Boot Firmware Version: | -- |
Management Firmware Version: | -- |
Workload Version: | SSJ 1.1.3 |
Director Location: | Controller |
Other Software: | None |
JVM Instance | ssj_ops@100% |
---|---|
0001.001 | 122,776 |
0001.002 | 124,766 |
ssj_ops@100% | 247,542 |
ssj_ops@100% per JVM | 123,771 |

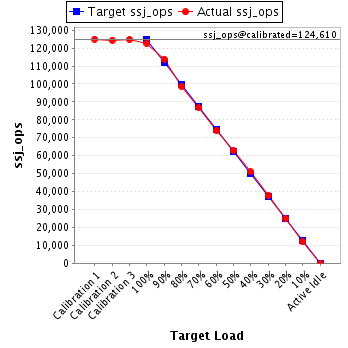

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 125,008 | ||
Calibration 2 | 124,484 | ||
Calibration 3 | 124,736 | ||
ssj_ops@calibrated=124,610 | |||
100% | 98.5% | 124,610 | 122,776 |
90% | 91.4% | 112,149 | 113,922 |
80% | 79.3% | 99,688 | 98,806 |
70% | 69.7% | 87,227 | 86,897 |
60% | 59.5% | 74,766 | 74,100 |
50% | 50.5% | 62,305 | 62,909 |
40% | 40.9% | 49,844 | 50,926 |
30% | 30.2% | 37,383 | 37,630 |
20% | 20.0% | 24,922 | 24,866 |
10% | 9.9% | 12,461 | 12,284 |
Active Idle | 0 | 0 |

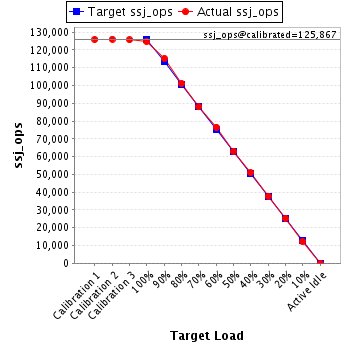

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 125,895 | ||
Calibration 2 | 126,053 | ||
Calibration 3 | 125,681 | ||
ssj_ops@calibrated=125,867 | |||
100% | 99.1% | 125,867 | 124,766 |
90% | 91.6% | 113,280 | 115,232 |
80% | 80.4% | 100,694 | 101,152 |
70% | 69.8% | 88,107 | 87,917 |
60% | 60.8% | 75,520 | 76,548 |
50% | 50.1% | 62,933 | 63,118 |
40% | 40.5% | 50,347 | 50,923 |
30% | 30.0% | 37,760 | 37,796 |
20% | 20.1% | 25,173 | 25,250 |
10% | 9.7% | 12,587 | 12,225 |
Active Idle | 0 | 0 |
