SuperMicro, Inc. Supermicro 6025B-TR+ (Intel Xeon processor L5335) SPECpower_ssj2008 = 468 overall ssj_ops/watt
Test Sponsor: Intel Corp. SPEC License #: 13 Test Method: Single Node
Tested By: Intel Corp. Test Location: Hillsboro, Oregon, USA Test Date: Nov 28, 2007
Hardware Availability: Nov-2007 Software Availability: Nov-2007 Publication: Dec 11, 2007
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.1% 220,306 276 799
90% 90.4% 200,860 269 746
80% 79.5% 176,684 261 677
70% 70.3% 156,344 254 616
60% 59.6% 132,525 245 541
50% 49.6% 110,222 237 465
40% 40.2% 89,388 229 390
30% 30.1% 66,875 221 302
20% 19.9% 44,157 213 207
10% 10.2% 22,649 206 110
Active Idle 0 198 0
∑ssj_ops / ∑power = 468

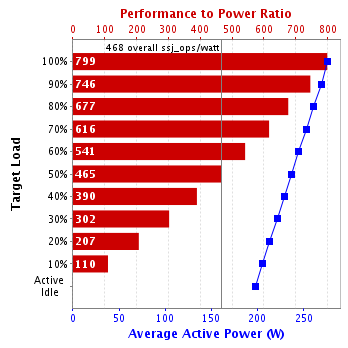

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Supermicro 6025B-TR+ (Intel Xeon processor L5335)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: SuperMicro, Inc.
Model: Supermicro 6025B-TR+ (Intel Xeon processor L5335)
Form Factor: --
CPU Name: Intel Xeon processor L5335
CPU Characteristics: Quad-Core 2.0GHz, 8 MB L2, 1333 MHz system bus
CPU Frequency (MHz): 2000
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2GB
Memory Details: Hynix HYMP525F72BP4D2-Y5 AB-T 2GB 2Rx4 PC2-5300F-555-11 FBDIMM; slots 1A, 2A, 3A, 4A populated
Power Supply Quantity and Rating (W): 1 x 700W
Power Supply Details: ABLECOM PWS-702A-1R Redundant Module Switching Power Supply
Disk Drive: 1 x Western Digital WD360ADFD 36GB SATA
Disk Controller: Intel 631xESB/6321ESB Serial ATA Storage Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Embedded Intel PRO/1000 EB Network Connection with I/O Acceleration
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Server Balanced Processor Power and Performance
Operating System (OS): Microsoft Windows Server 2003 Enterprise x64 Edition SP1
OS Version: Microsoft Windows Server 2003 Enterprise x64 Edition SP1
Filesystem: NTFS
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) 1.6.0_02 (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3500m -Xmx3500m -XXaggressive -Xgc:genpar -Xns2900m -XXlazyunlocking -XXcallprofiling -XXtlasize:min=4k,preferred=512k -XXthroughputcompaction -XXgcthreads:4
JVM Affinity: JVM 1 to 0F, JVM 2 to F0
JVM Instances: 4
JVM Initial Heap (MB): 3500
JVM Maximum Heap (MB): 3500
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 0.23
Director Location: SUT
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Dell Computer Corporation
Model: Dell LATITUDE D600
CPU Description: Intel Pentium M processor 1.6 GHz
Memory amount (GB): 1.0
Software
Operating System (OS): Microsoft Windows XP
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (build R27.4.0-90-89592-1.5.0_12-20070928-1715-windows-ia32, compiled mode)
CCS Version: 0.21
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91G533352
Connectivity: RS-232
Input Connection: --
Calibration Institute: NIST
Accredited by: Intel Oregon Cal Lab
Calibration Label: CCN 20-24428
Date of Calibration: 13-Nov-2007
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 0.21-2f7044de
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 276 24.2
90% 269 24.2
80% 261 24.2
70% 254 24.2
60% 245 24.2
50% 237 24.2
40% 229 24.2
30% 221 24.2
20% 213 24.2
10% 206 24.2
Active Idle 198 24.2
Line Standard Minimum Temperature (°C) Elevation (m)
120V / 60 Hz / 1 phase / 2 wires 24.2 62
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,909
Calibration 2     222,835
Calibration 3     221,770
ssj_ops@calibrated=222,302
100% 99.1% 222,302 220,306
90% 90.4% 200,072 200,860
80% 79.5% 177,842 176,684
70% 70.3% 155,612 156,344
60% 59.6% 133,381 132,525
50% 49.6% 111,151 110,222
40% 40.2% 88,921 89,388
30% 30.1% 66,691 66,875
20% 19.9% 44,460 44,157
10% 10.2% 22,230 22,649
Active Idle   0 0

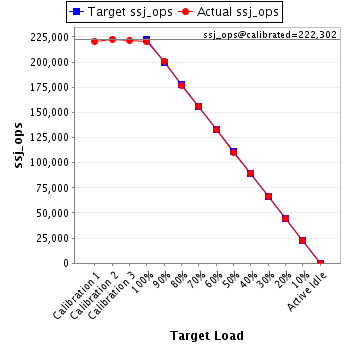

Graph of results
