SuperMicro, Inc. Supermicro 6025B-TR+ (Intel Xeon processor L5335) ssj_ops@100% = 220,306
ssj_ops@100% per JVM = 110,153
Test Sponsor: Intel Corp. SPEC License #: 13 Test Method: Single Node
Tested By: Intel Corp. Test Location: Hillsboro, Oregon, USA Test Date: Nov 28, 2007
Hardware Availability: Nov-2007 Software Availability: Nov-2007 Publication: Dec 11, 2007
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,909
Calibration 2     222,835
Calibration 3     221,770
ssj_ops@calibrated=222,302
100% 99.1% 222,302 220,306
90% 90.4% 200,072 200,860
80% 79.5% 177,842 176,684
70% 70.3% 155,612 156,344
60% 59.6% 133,381 132,525
50% 49.6% 111,151 110,222
40% 40.2% 88,921 89,388
30% 30.1% 66,691 66,875
20% 19.9% 44,460 44,157
10% 10.2% 22,230 22,649
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Supermicro 6025B-TR+ (Intel Xeon processor L5335)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: SuperMicro, Inc.
Model: Supermicro 6025B-TR+ (Intel Xeon processor L5335)
Form Factor: --
CPU Name: Intel Xeon processor L5335
CPU Characteristics: Quad-Core 2.0GHz, 8 MB L2, 1333 MHz system bus
CPU Frequency (MHz): 2000
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2GB
Memory Details: Hynix HYMP525F72BP4D2-Y5 AB-T 2GB 2Rx4 PC2-5300F-555-11 FBDIMM; slots 1A, 2A, 3A, 4A populated
Power Supply Quantity and Rating (W): 1 x 700W
Power Supply Details: ABLECOM PWS-702A-1R Redundant Module Switching Power Supply
Disk Drive: 1 x Western Digital WD360ADFD 36GB SATA
Disk Controller: Intel 631xESB/6321ESB Serial ATA Storage Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Embedded Intel PRO/1000 EB Network Connection with I/O Acceleration
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Server Balanced Processor Power and Performance
Operating System (OS): Microsoft Windows Server 2003 Enterprise x64 Edition SP1
OS Version: Microsoft Windows Server 2003 Enterprise x64 Edition SP1
Filesystem: NTFS
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) 1.6.0_02 (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3500m -Xmx3500m -XXaggressive -Xgc:genpar -Xns2900m -XXlazyunlocking -XXcallprofiling -XXtlasize:min=4k,preferred=512k -XXthroughputcompaction -XXgcthreads:4
JVM Affinity: JVM 1 to 0F, JVM 2 to F0
JVM Instances: 4
JVM Initial Heap (MB): 3500
JVM Maximum Heap (MB): 3500
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 0.23
Director Location: SUT
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 109,875
0001.002 110,431
ssj_ops@100% 220,306
ssj_ops@100% per JVM 110,153

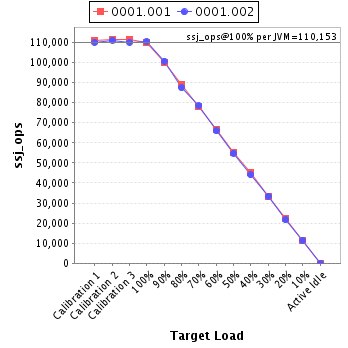

Graph of per-instance results
JVM '0001.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,868
Calibration 2     111,661
Calibration 3     111,630
ssj_ops@calibrated=111,645
100% 98.4% 111,645 109,875
90% 89.7% 100,481 100,142
80% 80.0% 89,316 89,283
70% 69.8% 78,152 77,929
60% 59.7% 66,987 66,603
50% 49.7% 55,823 55,436
40% 40.6% 44,658 45,362
30% 30.0% 33,494 33,502
20% 20.1% 22,329 22,492
10% 10.0% 11,165 11,220
Active Idle   0 0
Graph of results
JVM '0001.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,041
Calibration 2     111,174
Calibration 3     110,140
ssj_ops@calibrated=110,657
100% 99.8% 110,657 110,431
90% 91.0% 99,591 100,718
80% 79.0% 88,526 87,401
70% 70.9% 77,460 78,415
60% 59.6% 66,394 65,922
50% 49.5% 55,328 54,786
40% 39.8% 44,263 44,027
30% 30.2% 33,197 33,373
20% 19.6% 22,131 21,665
10% 10.3% 11,066 11,429
Active Idle   0 0
Graph of results
