SPECjbb2015 Report for jbb2015-20200408-00534 : 347351 max-jOPS ; 124094 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SR665
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Jun-2020
Model	ThinkSystem SR665
Form Factor	2U
CPU Name	AMD EPYC 7H12
CPU Characteristics	64 core, 2.6GHz, 256 MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	D8E105J
CPU Frequency (MHz)	2600
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	256 MB I+D on chip per chip
Other Cache	None
Disk	1x 960GB SATA SSD
File System	ext4
Memory Amount (GB)	1024
# and size of DIMM(s)	32 x 32 GB
Memory Details	32GB 2Rx8 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	1x 10/25GbE PCIe NIC
Power Supply Quantity and Rating (W)	1 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP1
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	4.12.14-195-default
Available	Jun-2019
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	OpenJDK 14.0.0
Vendor	OpenJDK (openjdk.java.net)
Vendor URL	http://openjdk.java.net/
Version	OpenJDK 64-bit Server VM, version 14.0.0
Available	Mar-2020
Bitness	64
Notes	Community Support
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ThinkSystem SR650
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Aug-2017
Model	ThinkSystem SR650
Form Factor	2U
CPU Name	Intel Xeon Platinum 8180M
CPU Characteristics	28 core, 2.50GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	56
Cores Per Chip	28
Threads Per System	112
Threads Per Core	2
Version	IVE113U
CPU Frequency (MHz)	2500
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1 MB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	1x 800GB SATA SSD
File System	xfs
Memory Amount (GB)	768
# and size of DIMM(s)	24 x 32GB
Memory Details	32GB 2Rx4 PC4-2666V-R
# and type of Network Interface Cards (NICs)	1x 10 Gbit NICs
Power Supply Quantity and Rating (W)	2 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	RedHat Linux Enterprise Server 8
Vendor	Red Hat
Vendor URL	http://www.redhat.com/
Version	4.18.0-80.el8.x86_64
Available	May-2019
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	OpenJDK 14.0.0
Vendor	OpenJDK
Vendor URL	http://openjdk.java.net/
Version	OpenJDK 64-bit Server VM, version 14.0.0
Available	Mar-2020
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set Maximum Performance then set Custom Mode L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable Memory Scrub = Disable LLC as NUMA Node = Enable NUMA nodes per sockert = NPS4 Package Power Limit = 280 cTDP = 280
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(32)
OS Image Description	os_1
Tuning	ulimit -n 655350 tuned-adm profile throughput-performance echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 16 > /proc/sys/kernel/sched_nr_migrate echo 10 > /proc/sys/vm/swappiness echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:ParallelGCThreads=8 -XX:-UseBiasedLocking -XX:AllocatePrefetchInstr=2 -XX:UseAVX=0 -XX:+UseTransparentHugePages
Tuning	numactl used to affinitize each Backend JVM to a single memory node, eg: numactl --cpunodebind=$gnum --localalloc
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance SNC set to Enable
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(32)
OS Image Description	os_2
Tuning	SELINUX=disabled ulimit -n 32768
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	numactl --interleave=all
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=3
Tuning	numactl used to affinitize 8 TxInjector JVMs to a single memory node: TX0-7: numactl --cpunodebind=0 --localalloc TX8-15: numactl --cpunodebind=1 --localalloc TX16-23: numactl --cpunodebind=2 --localalloc TX24-31: numactl --cpunodebind=3 --localalloc
Notes	None

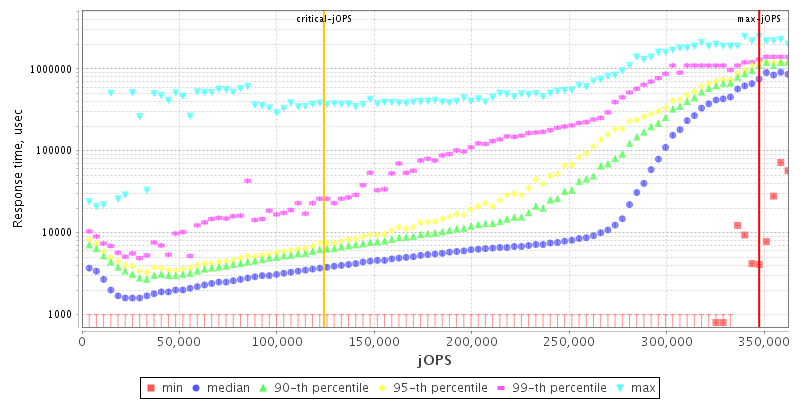

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	343655	347351	351046	354741	358436

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	48530	119100	152735	171827	193999	124094

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 3695	- / 3695	- / 3695	- / 3695	- / 3695	- / 3695
1000us	48038 / 3695	- / 3695	- / 3695	- / 3695	- / 3695	- / 3695
5000us	280837 / 284532	166285 / 169980	99771 / 3695	81295 / 3695	29562 / 3695	- / 3695
10000us	291922 / 295618	266056 / 269751	181066 / 184761	155199 / 158894	55428 / 3695	- / 3695
25000us	295618 / 299313	280837 / 284532	240189 / 243885	214323 / 218018	129333 / 84990	11086 / 14781
50000us	303008 / 306703	288227 / 291922	262361 / 266056	240189 / 243885	155199 / 147809	33257 / 14781
75000us	306703 / 310398	291922 / 295618	269751 / 273446	251275 / 254970	169980 / 173675	33257 / 14781
100000us	306703 / 310398	295618 / 299313	277141 / 280837	258665 / 262361	195847 / 192151	33257 / 14781
200000us	332570 / 321484	306703 / 310398	291922 / 295618	277141 / 280837	247580 / 251275	33257 / 14781
500000us	347351 / -	332570 / 336265	314094 / 317789	310398 / 314094	277141 / 280837	236494 / 14781
1000000us	347351 / -	347351 / -	343655 / 347351	339960 / 343655	332570 / 303008	277141 / 280837

Number of probes

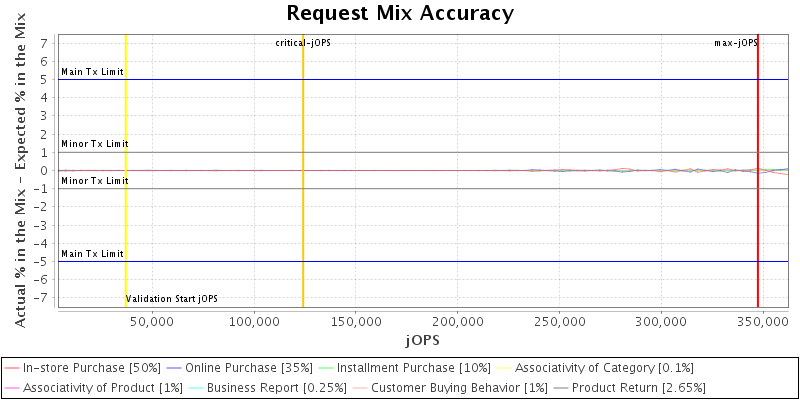

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

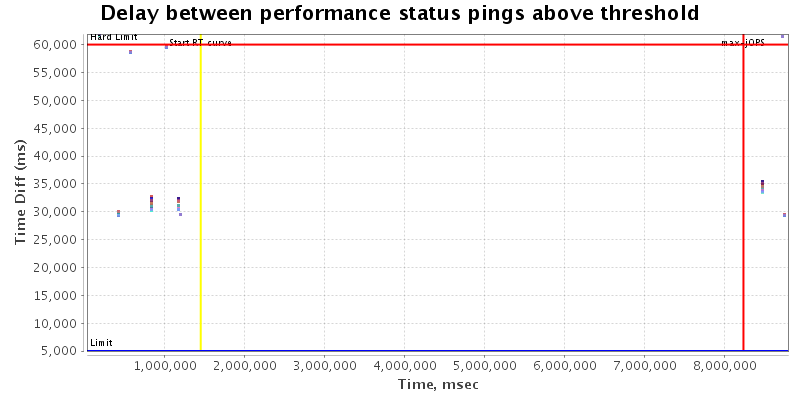

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	32
specjbb.comm.connect.selector.runner.count	0	2
specjbb.comm.connect.timeouts.connect	60000	700000
specjbb.comm.connect.timeouts.read	60000	700000
specjbb.comm.connect.timeouts.write	60000	700000
specjbb.comm.connect.worker.pool.max	256	32
specjbb.comm.connect.worker.pool.min	1	32
specjbb.controller.host	localhost	192.168.0.11
specjbb.customerDriver.threads	64	{probe=64, saturate=64}
specjbb.forkjoin.workers	8	{Tier1=64, Tier2=1, Tier3=12}
specjbb.group.count	1	32
specjbb.mapreducer.pool.size	8	2
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 369522 IR

High-bound (settled) is 357770 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Lenovo Global Technology ThinkSystem SR665	347351 SPECjbb2015-Distributed max-jOPS 124094 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: Apr 9, 2020
SPEC license #: 9017	Hardware Availability: Jun-2020	Software Availability: Mar-2020	Publication: Tue May 5 10:56:33 EDT 2020
