SPEC virt_sc ® 2013 is designed to be a standard method for measuring a virtualization platform's ability to manage a server consolidation scenario in the datacenter and for comparing performance between virtualized environments. It is intended to measure the performance of the hardware, software, and application layers in a virtualized environment. This includes both hardware and virtualization software and is intended to be run by hardware vendors, virtualization software vendors, application software vendors, academic researchers,and datacenter managers. The benchmark is designed to scale across a wide range of systems and is comprised of a set of component workloads representing common application categories typical of virtualized environments.
Rather than offering a single benchmark workload that attempts to approximate the breadth of consolidated virtualized server characteristics found today, SPEC virt_sc uses a four-workload benchmark design: a webserver, Java application server, a mail server, and a batch server workload. The four workloads of which SPEC virt_sc is composed are derived from SPECweb2005, SPECjAppServer2004, SPECmail, and SPEC CPU2006. All four workloads drive pre-defined loads against sets of virtualized machines (VMs). The SPEC virt_sc harness running on the client side controls the workloads and also implements the SPECpower methodology for power measurement. The benchmarker has the option of running with power monitoring enabled and can submit results to any of three categories:
As with all SPEC benchmarks, an extensive set of run rules govern SPEC virt_sc disclosures to ensure fairness of results. SPEC virt_sc results are not intended for use in sizing or capacity planning. The benchmark does not address multiple host performance or application virtualization.
The benchmark suite consists of several SPEC workloads that represent applications that industry surveys report to be common targets of virtualization and server consolidation. We modified each of these standard workloads to match a typical server consolidation scenario's resource requirements for CPU, memory, disk I/O, and network utilization. The SPEC workloads used are:
We created an additional workload called SPECpoll. SPECpoll sends and acknowledges network pings to all VMs in the 0% load phase (active idle) during power-enabled runs.
We researched datacenter workloads and determined suitable load parameters. We refined the test methodology to ensure that the results scale with the capabilities of the system. The benchmark requires significant amounts of memory (RAM), storage, and networking in addition to processors on the SUT. Client systems used for load generation must also be adequately configured to prevent overload. Storage requirements and I/O rates for disk and networks are expected to be non-trivial in all but the smallest configurations. The benchmark does not require that each workload have a maximum number of logical (hardware-wise) processors and is designed to run on a broad range of single host systems.
The benchmark presents an overall workload that achieves the maximum performance of the platform when running one or more sets of Virtual Machines called tiles.

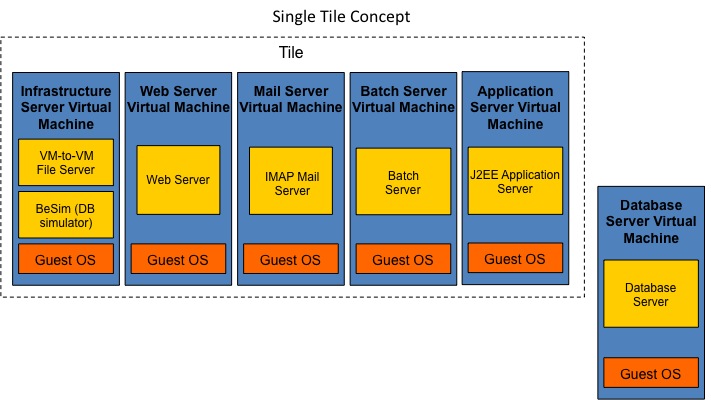

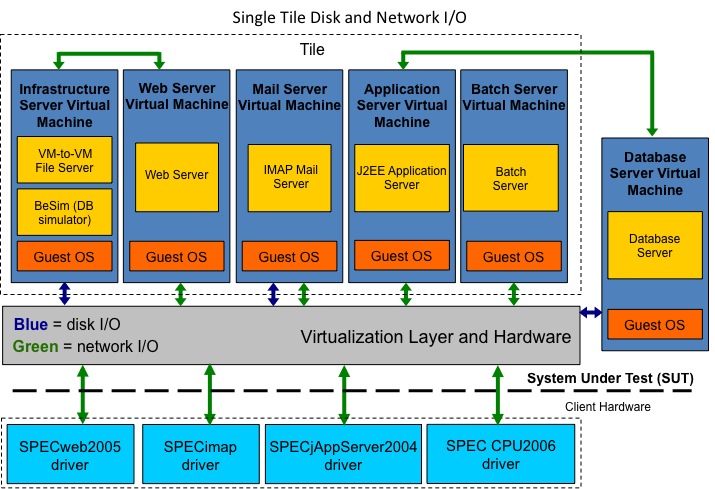

Scaling the workload on the SUT consists of running an increasing
number of tiles. Peak performance is the point at which the addition
of another tile (or fraction) either fails the Quality of Service
(QoS) criteria or fails to improve the overall metric.
|Vehicle Purchasing Rate
|Large Order Vehicle Purchase Rate
|Regular Vehicle Purchase Rate
At the time the specweb prime client class is invoked by the clientmgr process, it also may be passed the following additional command line parameters:
The parameters for the first two bullets are always included and are
provided by the prime controller based on the parameters in
Control.config. The last bulleted item is optional and must be
specified in the workload's PRIME_APP value, if desired. For example:
PRIME_APP = "-jar specweb.jar -lh eth2hostname"
The most significant change to the SPECweb2005 Support workload for SPEC virt_sc was to the fileset characteristics. The Support workload was revised to represent a larger website with file sizes more representative of software downloads and multimedia files currently found on many support sites. The access patterns have been altered by the combination of a smaller zipf alpha value, an increased number of download files per directory and changes to the frequency distributions for accessing those files. SSL and TLS have also been enabled as websites now commonly use HTTPS to secure their users' data.
Following are the changes to the parameter values in
SPECweb_Support.config related to these changes:
"0.350, 0.220, 0.115, 0.100, 0.100, 0.115"
Also, because the web server file sets for each tile would otherwise
contain identical data, the Wafgen file set generator was modified to
add values to the data unique to each workload tile, and the SPECweb
response validation process now checks for these unique values when it
validates the file contents.
The parameter OVERTHINK_ALLOW_FACTOR was also added in order to loosen the client excess think time limits (MAX_OVERTHINK_TIME) on the client. MAX_OVERTHINK_TIME is now calculated as the RUN_SECONDS times the OVERTHINK_ALLOW_FACTOR. So client-caused delay in sending requests of up to 1% of the total run time is now allowed.
SSL and TLS support has also been enabled in the Support workload for SPEC virt_sc by setting USE_SSL = 1 in SPECweb_Support.config. This feature is required for compliant SPEC virt_sc benchmark runs.
Requests for polling data sent by the prime controller
return the same polling data as the regular SPECweb2005 workload and
is of the format:
<System Poll Time>,<Page Requests>,<Pass Count>, <Fail Count>,<Error Count>,<Total Bytes>, <Response Time>,<Time Good>,<Time Tolerable>, <Time Fail>,<Min Resp Time>,<Max Resp Time>, <Non-client close>
See the SPECweb2005 documentation for further information on these values.
The IMAP mail server workload is based loosely on the SPECmail
benchmark. The IMAP component of SPEC virt_sc simulates the load
generated by 500 mail clients (for a compliant full tile) performing
common mailserver activities such as checking for new messages,
fetching, sending, and deleting messages, searches for particular mail
text, etc. The mailserver is pre-populated for each client user
using a provided mailstore generation application (see the Mailserver
VM Setup section of the User Guide for details). For ease of
benchmarking, the benchmark maintains a persistent state from
benchmark run to run, meaning that there are the same number of total
messages at the beginning of each run, with each message maintaining
the same initial state (e.g., SEEN versus UNSEEN). The working
size of the mailstore requires approximately 12GB of storage space
(excluding ancillary mailserver folder structures, indices, etc).

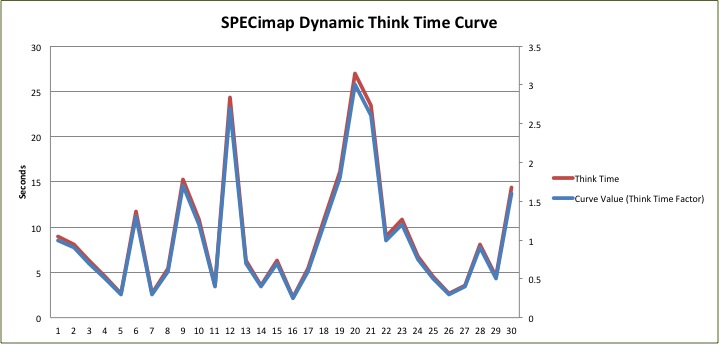

In order to simulate the dynamic nature of daily mailserver activity, the IMAP workload intensity for the 500 active users is dynamic over the measurement interval. While the 500 users will all be active during the measurement interval, the average delay between IMAP requests changes based on a preset ‘think time curve’. The average think time for primary IMAP operations over the entire Measurement Interval is 9 seconds. However, depending on the current position on the dynamic curve, the average think time at any given point varies from a minimum of 2.25 seconds to a maximum of 27 seconds. Each tile will begin at a point in the curve which is offset from the previous tile by 7 curve point values. This is to prevent an artificial overlap of peaks and troughs of workload activity. Each point on the think time curve will execute for 20 seconds, which is the default “step rate” for the dynamic curve. Each tile will traverse the think time curve every 10 minutes. ( 30 curve points, 20 seconds per point = 600 seconds)
There are two mail folders that are used during the test run. The first is the common top level 'INBOX' which contains ~2000 pre-populated mail messages, 70% of which have been seen (SEEN flag is set) and 30% are unseen (UNSEEN flag is set). The second folder is the SPEC folder which is used to store the messages that are created during the test run. The messages that accumulate in this mailbox are occasionally deleted during the test run and are always automatically deleted prior to the beginning of the test run to maintain a consistent mailstore state from run to run.
The workload consists of four 'primary' IMAP operations: create new mail message (APPEND), retrieve mail message (FETCH_RFC822), text search subject header (SEARCH_ALL_SUBJECT), and check for new messages in the 30 most recent messages (SEARCH_UNSEEN). The user chooses a pseudo-random number to determine which primary operation to execute next based on the following transaction mix. The allowed mix variations due to the nature of random selection are also shown below (i.e., the variance allowed of the final measured mix per IMAP operation over all transactions that occurred during the POLLING_INTERVAL).
Primary IMAP command mix
|IMAP Command Type
Each of the primary operations may trigger one or more secondary
operations as described below.
Secondary APPEND operations:
The deletion of all accumulated messages in the SPEC folder (STORE_ALL_FLAGS_DELETED, followed by EXPUNGE) occurs for 2% of the APPEND primary operations.
Secondary FETCH operations:
Since 30% of the mailstore messages have the UNSEEN flag set, 30% of FETCH operations reset this flag after the FETCH operation to UNSEEN (UID_STORE_NUM_UNSET_FLAGS_SEEN) in order to maintain the consistent mailstore state.
Secondary SEARCH_UNSEEN operations:
The SEARCH_UNSEEN operation represents the typical IMAP client application that is often active throughout the workday and periodically checks the IMAP server for new messages. Therefore, each SEARCH_UNSEEN have a corresponding login (IMAP_LOGIN), a logout (IMAP_LOGOUT). Additionally, for every new message (flag set to UNSEEN) that is found in the most recent [10..30] mailstore messages, the message header is fetched using the PEEK IMAP command (FETCH_NUM_RFC822HEADER)
The allowed mix variations due to the nature of random selection are also shown below (i.e., the final mix determined at the end of the run over all transactions that occurred during the POLLING_INTERVAL). The percentage of allowed variation between the measured and the minimum and maximum mix is increased for secondary operations which occur at a low frequency.
Requests for polling data sent by the prime controller
return a set of comma-delimited metrics in the following format:
<System Poll Time>,<Total Count>,<Pass Count>,<Fail Count>,<Error Count>,<Total Resp. Time>,<Min Resp. Time>,<Max Resp. Time>
The *Count values are the total IMAP command counts from the beginning of the polling period. The 'Total Resp. Time' is the sum of the response time (in milliseconds) for all IMAP commands.
The batch server is intended to represent a VM that is idle most of
the time but has occasional spikes of activity that require moderate
amounts of processing resources that can be provided at lower priority
compared to others. The batch server uses one of the modules from the
SPEC CPU2006 SPECint suite, 401.bzip2, as the batch workload. Ten
copies of the 401.bzip2 "train" workload must be run within a
specified time in order to satisfy the requirements for this workload.
The batch workload does not have a metric that contributes to the
overall SPEC virt_sc metric, but rather returns a PASS/FAIL result;
as long as the entire batch workload completes in the specified time,
As with the other workloads, the specbatch class implements the PrimeRemote interface and starts an RMI listener to listen for RMI commands from the prime controller.
Like other workloads, the SPECbatch prime client, specbatch, uses two primary threads: one to listen for and respond to prime controller RMI calls and the other for workload execution. The SPECbatch RMI listener thread is similar in its implementation to all other workloads. The workload execution thread for the specbatch prime client launches a workload run script, defined by BATCH_SCRIPT in SPECbatch/Test.config, on the host VM with two parameters:
For a multi-tile run, the specbatchclient process launches the
workload script at different times on each tile depending on the tile
ID. The first tile's workload script is launched as soon as the
polling phase of the benchmark begins. The second tile's workload is
launched a number of seconds later defined by the OFFSET parameter in
Test.config, the third tile's workload is launched OFFSET seconds
after the second tile's, and so on. If the number of tiles run exceeds
the value OFFSET_RESET_TILECNT (defined in Test.config), the first
tile after this value starts its workload at the beginning of the
polling phase and the offsets for subsequent tiles are staggered from
this time. This pattern repeats for each multiple of
OFFSET_RESET_TILECNT. For a compliant run, OFFSET must equal 900 (15
minutes) and OFFSET_RESET_TILECNT must equal 4.
After period of time - defined by TIMEINTERVAL in SPECbatch/Test.config - from the start of the last workload script invocation, the next workload script invocation begins. For a compliant benchmark run, TIMEINTERVAL must equal 3600.
Once the workload execution thread launches the workload script, it monitors the status of the script and collects the results at the end of the benchmark. If the workload script runs longer than the expected value, defined by DURATION in Test.config, the workload fails validation.
The SPECbatch workload is based on the SPEC CPU2006 harness. As such,
certain steps must be followed in order to prepare the SPECbatch
workload for execution. The SPECbatch workload only uses a subset of
the SPEC CPU2006 harness and therefore cannot be used for compliant
SPEC CPU2006 measurements.The SPEC CPU2006 harness provides the
workload as source code, so it must be compiled prior to its use.
Therefore a compiler must be available on the VM to accomplish this.
A batch run script must be created to control the execution of the SPECbatch workload. There are sample run scripts that are included in the kit that provide guidance in what is needed for such a script. Please refer to the next section for more details.
Once the workload executable and run script have been built, the SPECbatch workload is ready for use.
The SPECbatch workload run script controls the manner in which the required number of 401.bzip2 workload executions are handled. The script is passed two parameters from the specbatch process, the run-specific results directory and BATCH_COPY_COUNT. The script then needs to accomplish four basic functions in order to achieve a compliant result:
As stated before, there are sample workload run scripts provided in
the SPECbatch folder that can be used directly or as models for custom
scripts. The script must be run from the SPECbatch/cpu2006-virt
folder. There is a symbolic link in the SPECbatch/cpu2006-virt folder
pointing to one of the sample workload scripts. The default value in
Control.config points to this symbolic link.
The workload run script is platform dependent, so the specbatch process invokes the script using the shell environment defined by BATCH_RUN_ENVIRONMENT in the SPECbatch/Test.config.
Requests for polling data sent by the prime controller
return a string in the following format:
When the getData() request is received from the prime controller on the RMI listening thread, the SPECbatch prime client sends a getHeartbeat() RMI request to specbatchclient, which specbatchclient relays to the target VM. The format of the returned string of comma-separated variables is:
<System Poll Time>,<Heartbeats>,<Total Beats>,<Resp. Msec>,<Min. Msec>,<Max. Msec>,<Total Msec>,<QOS Pass>,<QOS Fail>
Please refer to the SPECpoll polling section for details on these values.
SPECpoll is used to poll the server VMs to confirm that they are running and responsive. While not a workload it behaves like the other workloads. It must implement the PrimeRemote interface for the prime controller to be able to communicate with it through RMI. Beyond implementing this common communication interface, the SPECpoll process fundamentally just waits for and responds to polling commands from the prime controller.
There are three jar files used for SPECpoll: specpoll.jar,
specpollclient.jar, and pollme.jar. The first two provide the prime
client and client interface to the workload common to all workloads in
the benchmark client harness. The latter jar file, pollme.jar, is not
used on the client side, but must be installed and running on all VMs
so that it can listen for and respond to polling requests from
SPECpoll's primary function is to poll all VMs during an active idle measurement interval. It is in order to provide this function that the SPECpoll process must be installed on each set of client systems that host the four workloads. Specifically, during an active idle measurement interval, the prime client goes to the same set of PRIME_HOSTs and WORKLOAD_CLIENTS defined in Control.config for the loaded measurement interval, but instead of starting the mail, web, batch, and appserver workloads, it starts the SPECpoll process.
SPECpoll prime client (specpoll) uses two primary threads: one to
listen for and respond to prime controller RMI calls and the other for
process execution. The SPECpoll RMI listener thread is similar in its
implementation to the four workloads. The process execution thread for
the specpoll prime client is as simple of a process execution sequence
as is possible for this virtualization benchmark and consists of the
following sequence of steps:
At first glance it might appear as though this process does nothing at all since the process execution thread sleeps during the ramp-up, warm-up, and runtime phases of the four workloads. However, VM polling is only required in response to a prime controller RMI command, getData(), which is executed on the RMI listener thread that listens for RMI commands from the prime controller. So unlike the four workloads that drive load during a run interval, there is nothing more that this "primary" process execution thread needs to do during these periods other than to wait until these phases have expired.
Like the SPECpoll prime client process, the SPECpoll client process (specpollclient) is a minimal client process implementation. In addition to maintaining and returning the metric results (common to all workload client processes), specpollclient has two primary methods: setConfig() and getHeartbeat().
The setConfig() method checks the QOS metric values used in the
configuration object passed to it by the specpollclient and gets the
target host VM and RMI port. It then checks whether a second host VM
name:port pair was passed to it. If so, when it makes the setConfig()
RMI call to the target VM's pollme process, it passes that name:port
pair to the target VM's SPECpoll listener. Once this is done, the
target VM has all of the information it neeeds to respond to
getHeartbeat() RMI requests.
When the specpollclient process receives a getHeartbeat() request from the specpoll prime client, it forwards this request to its corresponding SPECpoll listener and processes the data returned. It then returns the results to the SPECpoll prime client, prefixing the data with the specpollclient's system time, measured after receiving the getHeartbeat() response from the target VM.
The SPECpoll listener (pollme) runs on all VMs with which the SPECpoll clients are expected to send polling requests. The pollme listener, after being invoked and setting itself up to listen on the specified network interface and port, simply waits for setConfig() and getHeartbeat() RMI calls.
Before receiving a getHeartbeat() RMI call, the SPECpoll client first
needs to send a setConfig() command to the pollme listener. If the
listener is expected to relay a getHeartbeat() RMI call to a backend
server, this backend host name and listening port are passed in the
setConfig() RMI call. Tthe pollme listener uses the host VM name
parameter sent with the setConfig() RMI call to set up an RMI
connection to that host name and port for relaying future
getHeartbeat() RMI calls.
When a getHeartbeat() RMI call is received from the SPECpoll client by the SPECpoll listener, it checks whether it needs to relay the getHeartbeat() RMI call to a backend server, and if so, makes its own getHeartbeat() RMI call to the backend server. Each getHeartbeat() RMI call returns one "heartbeat" along with however many heartbeats are returned by any relayed getHeartbeat() call to a backend server. So for the mailserver and batchserver that have no backend server, these calls return "1" and for the webserver and application servers that have backend servers, these getHeartbeat() RMI calls return "2" to the SPECpoll client.
These SPECpoll listeners have no concept of a benchmark begin and end time. They simply remain listening on the network interface and port on which they were started, waiting for RMI commands until these processes are terminated manually. The client harness does not stop or start these listening processes on the VMs.
During an active idle measurement phase, requests for polling data
sent by the prime controller return a string in the following
When the prime controller receives the getData() request from on the RMI listening thread, the SPECpoll prime client sends a getHeartbeat() RMI request to specpollclient, which specpollclient relays to the target VM. The format of the returned string of comma-separated variables is:
<System Poll Time>,<Heartbeats>,<Total Beats>,<Resp. Msec>,<Min. Msec>,<Max. Msec>,<Total Msec>,<QOS Pass>,<QOS Fail>
The client harness controls the four modified SPEC benchmark workloads. The workload modifications that change the behavior of the workload are explained in more detail in previous sections of this guide. This section focuses on how the client harness controls these workloads and the modifications made to these workloads that allow for this control and coordination.
Each workload is required to implement the PrimeRemote interface.
This interface provides the names of the RMI methods that the prime
controller expects any workload to be able to execute in order to
ensure correct coordination of execution of these workloads.
Correspondingly, each workload can rely on the availability of the RMI
methods listed in the SpecvirtRemote interface for the prime
controller. These methods are also a part of the coordination
mechanism between the prime controller and the workloads. A listed
description of these methods is provided in previous sections of this
Below is the sequence of events that occur between the prime controller and the workloads during benchmark run execution. (This sequence assumes the client manager (clientmgr) processes have been started for each workload prime client and for the corresponding workload client processes. It also assumes that the pollme processes have been started on the VMs and are listening on their respective ports, as well as any power/temperature daemon (PTDaemon) processes used to communicate with power or temperature meters. Upon starting the specvirt process:
On both the prime controller and on each of the prime clients there are typically two separate threads engaged in different tasks. For the prime controller, one thread is primarily responsible for listening for and responding to RMI calls ,and the other is primarily responsible for controlling prime client execution. On the prime clients, similarly there is a thread primarily tasked with listening for and responding to RMI calls from the prime controller, and a second thread is responsible for coordinating its workload run with its workload clients.

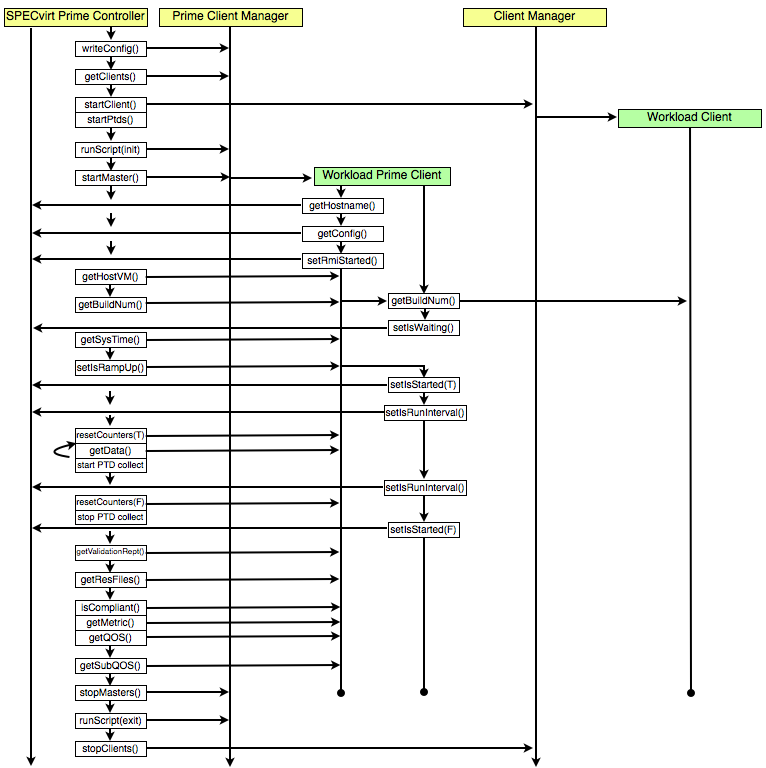

The following flow diagram illustrates the sequence of interactions
between these threads:
workload-specific CSV data>
If there is power-related data (i.e. if USE_PTDS =1), then power/temperature polling data is also recorded following the workload polling data in the CSV format:
PTD[n],<timestamp>, <PTDaemon type-specific CSV data>
After the polling interval is complete and all of this polling data has been collected and recorded, all configuration validation or runtime errors for this interval are collected by the prime controller and recorded following the polling data in the format:
ERR-<run_interval>-<tile>-<wkload>-<error_number> = <error string>
Next recorded in the result raw file are the aggregate runtime results, starting with the workload-specific compliance, throughput, and QoS metrics in the format:
<run_interval>-PRIME_CLIENT.COMPLIANCE[<tile>][<wkload>] = <true | false>
<run_interval>-PRIME_CLIENT.METRIC_VALUE[<tile>][<wkload>] = <value>
<run_interval>-PRIME_CLIENT.QOS_VALUE[<tile>][<wkload>] = <value>
Immediately following this data are the load levels used during the run interval, reported in the format:
<run_interval>-PRIME_CLIENT.LOAD_LEVEL[<tile>][<wkload>] = <value>
Following these values are the workload-specific submetric values. Because there are multiple submetric types as well as submetric values, the multiple values are listed in CSV format and the multiple types of workload-specific submetric data are distinguished by separate indexes. The first line (type index 0), for each workload is reserved for the workload-specific submetric labels, and these are recorded in the format:
<run_interval>-PRIME_CLIENT.SUBMETRIC_VALUE[<tile>][<wkload>] = "<workload-specific CSV labels>"
This line is required in order to support the workload-agnostic architecture of the prime controller. If a new workload was added (or one was replaced), changing these labels is all that is required in order for the prime controller to be able to support a different set of workload submetrics.
Following this submetric label for the tile and workload is that workload's request type-specific data in the format:
<run_interval>-PRIME_CLIENT.SUBMETRIC_VALUE[<tile>][<wkload>][<req_type>] = "<workload-specific CSV values>"
The number of CSV labels in the 0-indexed SUBMETRIC_VALUE must match the number of CSV values contained in all of the greater-than-0 request type indexes that follow for that workload. Also, the number of submetric request types are not required to be identical for all workloads. For example, the jApp workload and the mail workload each have two request types (manufacturing and dealer for jApp, and append and fetch for mail) and therefore two request type indexes (1 and 2), while the web and batch workloads each have only one request type (support and heartbeats, respectively) and therefore only one request type index (1).
The final set of aggregate data are the power-related measurement data. For power meters, the data collected is the watts, volts, amps, and power factor. For temperature meters, it collects the temperature and humidity. This data is of the format:
<run_interval>- PTD[n][<data_type>] = "<PTDaemon data type-specific CSV values>"
This data is followed by a newline character, a string of dashes, and another newline character. If there is more than one run interval, the same data from the next run interval is recorded.
Once all run intervals have completed, the runtime configuration values are recorded in the result file. These included the configuration properties from the Control.config and Testbed.config files as well as all configuration properties created by the prime controller during the benchmark run. One example of the controller-generated configuration properties is the RUN_SECONDS properties. These are calculated and set by the prime controller for each workload to ensure it meets the specified POLL_INTERVAL_SEC value.
Once all of the above data has been recorded in the results file, the prime controller takes all of this information and encodes and appends it to the end of the file. This provides an ability to compare the original post-run configuration with any post-run editing done on this file, and this capability is used by the reporter in order to ensure that only allowed field editing is added to any submission file created using the reporter.
The SPEC virt_sc reporter is used to create result submission files from raw files, regenerate raw files after editing them post-run, and to create formatted HTML run result pages. It is invoked automatically by the prime controller to create the formatted HTML page at the end of a run, but must be run manually to generate submission files or to regenerate an edited raw file.
Raw files commonly require post-run editing in order to update, correct, or clarify configuration information. However, only the RESULT_TYPE property in Control.config and the properties in Testbed.config are allowed to be edited in the raw result file. (Many configuration properties in Control.config are editable before a run starts, but cannot be edited afterward.)
The reporter ensures that only editable values are retained in a
regenerated raw or submission file using the following set of
Note: In order for the configuration property string comparison to
work correctly cross-platform, any Windows backslashes are converted
to forward slashes before being stored in Hashtables, even for
non-editable fields. Therefore, a regenerated raw file's configuration
properties always contain forward-slash characters in place of
backslash characters, even where backslash characters existed in the
original raw file in post-run non-editable fields.
The reporter concurrently creates the new raw file as well as the submission (.sub) file when regenerating the raw file except in the case where a sub file was passed into the reporter rather than a raw file.
Once a valid raw file and/or submission file have been generated, the reporter then uses this regenerated raw file to create the HTML-formatted final report(s). See the section titled Formatted (HTML) File Generation below for further details.
Any time you invoke the reporter with the parameters used to create a submission file, it assumes an edited raw file has been passed to it and goes through the editing validation process, assuring and preserving only allowed edits of the raw file submitted. Once a valid raw file has been recreated, the reporter then prefixes all non-configuration properties with a # character to preserve them in the submission process, and then prefixes the configuration properties with spec.virt_sc2013. per the SPEC submission tool requirements. This modified file is saved with a .sub extension, identifying it as a submittable raw file.
All invocations of the reporter with the "-s" or "-r" flags result in one or more formatted HTML reports being generated for the corresponding raw file or submission file. There are three different types of HTML-formatted reports the reporter can create depending on the type of benchmark run and the RESULT_TYPE or type parameter value passed to the reporter.
If no PTDaemons were used in the run, then the reporter always
generates only a performance report, regardless of the RESULT_TYPE or
-t value passed to the reporter. The RESULT_TYPE and/or -t parameter
values only control result type generation for benchmark runs that
include power data. The type of report generated is appended to the
html file name in the following formats:
