SPECstorage™ Solution 2020_vda Result
Copyright © 2016-2024 Standard Performance Evaluation Corporation
|
SPECstorage™ Solution 2020_vda ResultCopyright © 2016-2024 Standard Performance Evaluation Corporation |
| Nettrix | SPECstorage Solution 2020_vda = 960 Streams |
|---|---|
| R640 G50 Storage Server | Overall Response Time = 1.66 msec |
|
|
| R640 G50 Storage Server | |
|---|---|
| Tested by | Nettrix | Hardware Available | Jan 2024 | Software Available | Apr 2024 | Date Tested | Aug 2024 | License Number | 6138 | Licensee Locations | Beijing,China |
Nettrix R640 G50 is a high-end 4U rack-mounted high-density storage server that meets the demanding application requirements of large capacity, strong performance, scalability, and high reliability, ensuring key businesses' stable operation. The server supports up to 24 x 3.5" drives in the front and is compatible with NVMe drives, allowing for hot-swapping. The rear of the server can accommodate up to 16 x 3.5" drives and up to 4 x 2.5" drives. Internally, the server supports up to 2 x SATA/PCIe M.2 drives and includes 1 onboard eMMC chip.
| Item No | Qty | Type | Vendor | Model/Name | Description |
|---|---|---|---|---|---|

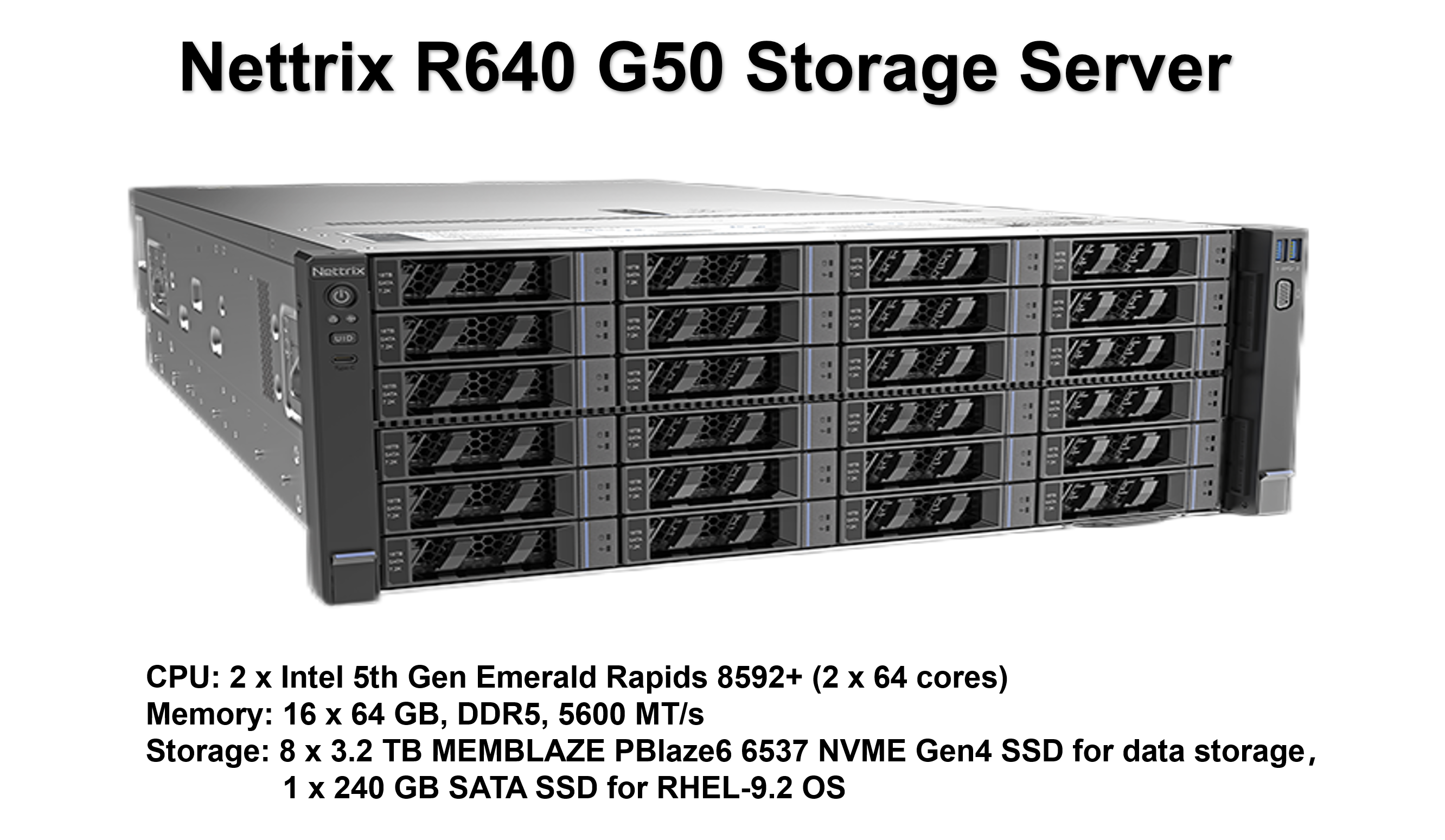

| 1 | 1 | 4U Rackmount Storage Server | Nettrix | R640 G50 | The R640 G50 is a high-end 4U rack-mounted high-density storage server. It is powered by dual Intel Xeon Platinum 8592+ CPU @ 1.9GHz, with 16 x 64GB DDR5 memory running at 5600 MT/s. For this storage testing, the server model is configured with 8 x 2.5" hot-swap NVMe drives, 32 x 3.5" SATA drives and 1 x M.2 SATA SSD. Only the 8 x 2.5" hot-swap NVMe SSDs were used for storage testing, and the M.2 drive was used for OS. |
| 2 | 1 | Disk | HGST | HBS3A1924A4M4B1 | 1 x 240 GB SATA SSD is installed for OS in storage server. |
| 3 | 8 | Disk | Memblaze | P6537DT0320Y00 | 8 x 3.2 TB PCIe Gen4 NVMe SSD are installed for data in storage server. |
| Item No | Component | Type | Name and Version | Description |
|---|---|---|---|---|
| 1 | SUT | Linux | RHEL 9.2 | Operating system for load generation and benchmark execution. |
| Component Name | Parameter Name | Value | Description |
|---|---|---|
| N/A | N/A | N/A |
None.
| Component Name | Parameter Name | Value | Description |
|---|---|---|
| N/A | N/A | N/A |
None.
None.
| Item No | Description | Data Protection | Stable Storage | Qty |
|---|---|---|---|---|
| 1 | Memblaze PBlaze6 6537 3.2 TB Gen4 NVMe SSD disks for storage server IOs. | None | Yes | 8 |
| 2 | HGST 240 GB SATA SSD disk for OS. | None | Yes | 1 |
| Number of Filesystems | 8 | Total Capacity | 25.6 TB | Filesystem Type | xfs |
|---|
The filesystems are created with mkfs.xfs command.
The filesystems are created with default options. Each filesystem is created by a 3.2 TB PCIe Gen4 NVMe SSD disk. The 8 PCIe Gen4 NVMe SSD disks in storage server are directly connected to PCI with no controller.
| Item No | Transport Type | Number of Ports Used | Notes |
|---|---|---|---|
| 1 | N/A | N/A | N/A |
None.
| Item No | Switch Name | Switch Type | Total Port Count | Used Port Count | Notes |
|---|---|---|---|---|---|
| 1 | N/A | N/A | N/A | N/A | N/A |
| Item No | Qty | Type | Location | Description | Processing Function |
|---|---|---|---|---|---|
| 1 | 2 | CPU | SUT | Intel Xeon Platinum 8592+ CPU @ 1.9GHz | Storage functions |
None.
| Description | Size in GiB | Number of Instances | Nonvolatile | Total GiB |
|---|---|---|---|---|
| System memory in the storage server | 1024 | 1 | V | 1024 | Grand Total Memory Gibibytes | 1024 |
The system has 16 x 64GB DDR5 running at 5600 MT/s.
The XFS file system provides journaling support for filesystem protection.
The benchmark was performed on a single Nettrix R640 G50 server equipped with local NVMe storage disks. 8 NVMe SSD disks were setup with XFS filesystem and mounted. RHEL-9.2 OS was installed on a SATA SSD. No additional external clients, storage devices, or network devices were connected to this setup. The system features dual Intel Xeon Platinum 8592+ processors with 128 cores (2 x 64cores) and 8 x 2.5" NVMe SSDs were utilized to run this benchmark. The testing was executed with Hyper-Threading enabled in BIOS to enable 256 threads for enhanced processing power.
None.
This server contains 8 NVMe SSD disks for local storage. The disks have been set up with XFS filesystem and mounted. Data is written directly onto the XFS filesystem and the NVMe storage devices, with no other external storage devices being used.
The benchmark was performed on a single Nettrix R640 G50 server equipped with local NVMe storage disks. No additional external clients, storage devices, or network devices were connected to this setup. Benchmarking was performed on Red Hat Enterprise Linux release 9.2 (Plow) using the default kernel 5.14.0-284.11.1.el9_2.x86_64. The Spectre or Meltdown (CVE-2017-5754, CVE-2017-5753, CVE-2017-5715) fix were applied to CPU and OS by vendors.
None.
