SPECstorage™ Solution 2020_eda_blended Result
Copyright © 2016-2024 Standard Performance Evaluation Corporation
|
SPECstorage™ Solution 2020_eda_blended ResultCopyright © 2016-2024 Standard Performance Evaluation Corporation |
| New H3C Technologies Co., Ltd. | SPECstorage Solution 2020_eda_blended = 600 Job_Sets |
|---|---|

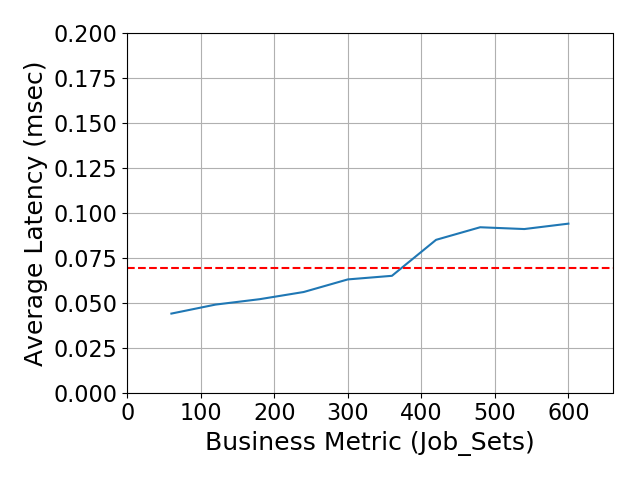

| H3C UniServer R4900G6 Ultra | Overall Response Time = 0.07 msec |
|
|
| H3C UniServer R4900G6 Ultra | |
|---|---|
| Tested by | New H3C Technologies Co., Ltd. | Hardware Available | 1/2024 | Software Available | 1/2024 | Date Tested | 1/2024 | License Number | 9066 | Licensee Locations | Hangzhou,China |
The H3C UniServer R4900G6 Ultra is 2U rackmount server powered by dual Intel Xeon Platinum 8592+ processor with 128 cores (2x 64cores). The server provides more processing power with Hyper-Threading enabled by default in BIOS to enable 256 threads. The server supports high memory bandwidth memory technology with 32 DIMMs of 5600 MT/s DDR5 memory. Local storage supports up to 18 standard PCIe slots and up to 45 hard disk slots, of which only 24 slots are supported by NVMe SSD. 96% power supply energy efficiency and a standard operating temperature design of 5 ℃ to 45 ℃ can provide users with higher energy efficiency returns.
| Item No | Qty | Type | Vendor | Model/Name | Description |
|---|---|---|---|---|---|
| 1 | 1 | 2U Rackmount server | New H3C Technologies Co., Ltd. | H3C UniServer R4900G6 Ultra | The H3C UniServer R4900G6 Ultra is 2U rackmount server powered by dual Intel Xeon Platinum 8592+ processor with 128 cores (2x 64cores). This system supports 24x 2.5" hot-swap NVMe drive bays and only 4 slots are used for this storage testing. The system has 16 DIMMs of DDR5 with speed up to 5600 MT/s. |
| Item No | Component | Type | Name and Version | Description |
|---|---|---|---|---|
| 1 | SUT | Linux | RHEL9.0 | Operating system for load generation and benchmark execution. |
| Component Name | Parameter Name | Value | Description |
|---|---|---|
| N/A | N/A | N/A |
None
| Component Name | Parameter Name | Value | Description |
|---|---|---|
| N/A | N/A | N/A |
None
None
| Item No | Description | Data Protection | Stable Storage | Qty |
|---|---|---|---|---|
| 1 | UMIS UH811a,NVME,Gen4,3.84TB Disks | RAID-0 volume | Stable Storage | 4 |
| Number of Filesystems | 1 | Total Capacity | 14 TiB | Filesystem Type | xfs |
|---|
Software RAID-0 was created by running mdadm command on the 4 NVME disks. Filesystem was created using mkfs.xfs command on the RAID-0 for benchmarking.
The XFS filesystem was mounted with noatime, defaults options.
| Item No | Transport Type | Number of Ports Used | Notes |
|---|---|---|---|
| 1 | N/A | N/A | N/A |
None
| Item No | Switch Name | Switch Type | Total Port Count | Used Port Count | Notes |
|---|---|---|---|---|---|
| 1 | N/A | N/A | N/A | N/A | N/A |
| Item No | Qty | Type | Location | Description | Processing Function |
|---|---|---|---|---|---|
| 1 | 2 | CPU | SUT | Intel Xeon Platinum 8592+ @1.9 GHz | RAID-0, Storage functions |
None
| Description | Size in GiB | Number of Instances | Nonvolatile | Total GiB |
|---|---|---|---|---|
| System memory in storage node | 64 | 16 | V | 1024 | Grand Total Memory Gibibytes | 1024 |
The system has 32 DIMM slots for DDR5 supports up to 5600 MT/s.
The XFS file system provides journaling support for filesystem protection.

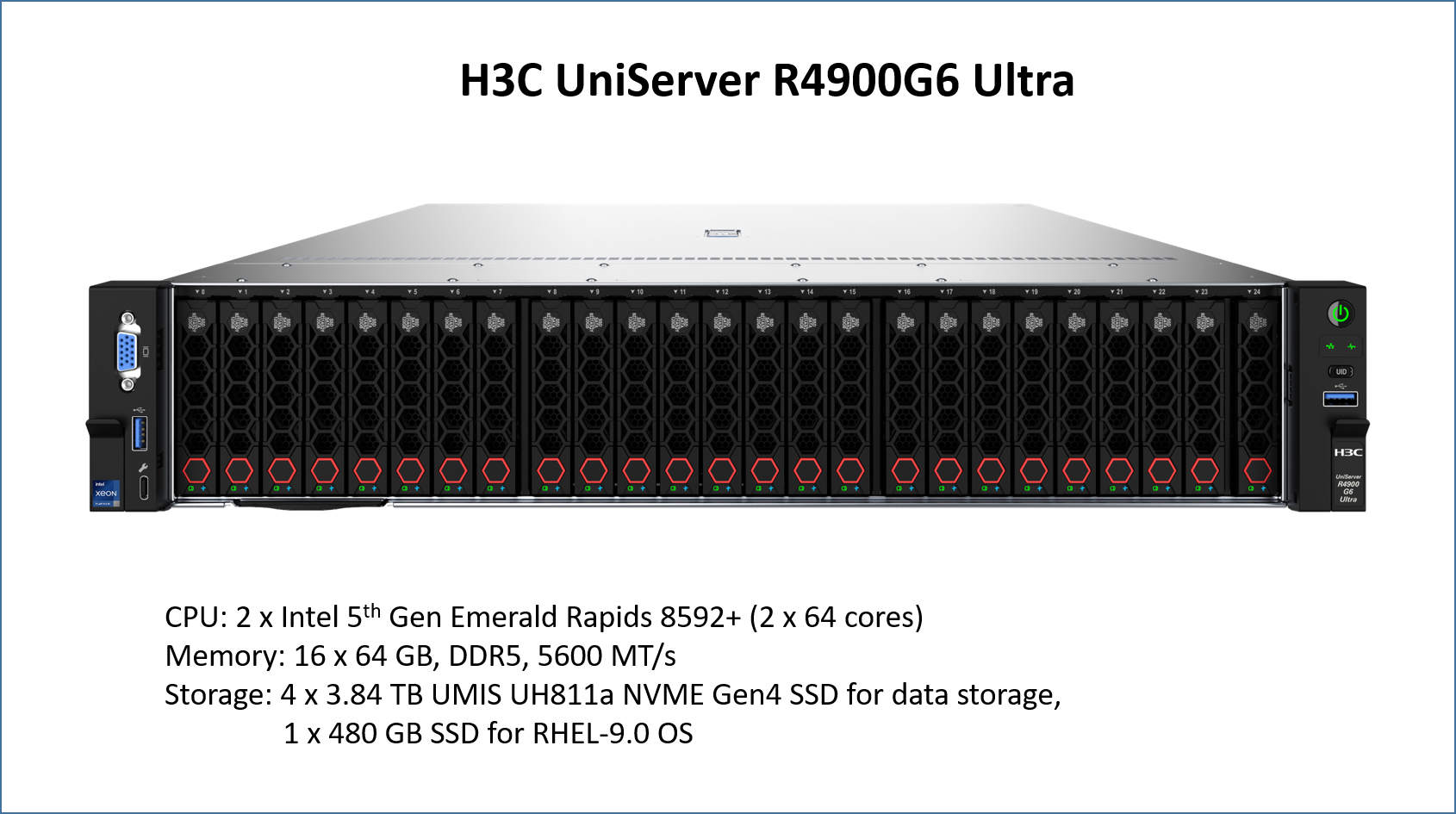

The benchmark was run on a single H3C UniServer R4900G6 Ultra server with local NVMe storage disks. RAID-0 config was created using the drives and XFS filesystem was set up on the RAID-0. RHEL-9.0 OS was installed on a SATA SSD. There were no additional external clients or storage devices or network devices were connected to this setup. The system has dual Intel Xeon Platinum 8592+ processor with 128 cores (2x 64cores), and 4x UMIS UH811a NVMe SSD were connected to run this benchmark. The testing was done with Hyper-Threading enabled in BIOS to enable 256 threads for more processing power.
None
This single server setup has a RAID-0 partition created on the local storage drives and XFS file system was created on the RAID. Data gets written directly on to the XFS filesystem and on to the NVMe storage devices. No other external storage device was used.
The benchmark was run on a single H3C UniServer R4900G6 Ultra server using its
local NVMe drives. No other client systems, or external storage devices or
networking devices were connected to this test system. Benchmarking was done on
Red Hat Enterprise Linux release 9.0 (Plow) using the default kernel
5.14.0-70.22.1.el9_0.x86_64.
The Spectre or Meltdown (CVE-2017-5754,
CVE-2017-5753, CVE-2017-5715) fix were applied to CPU and OS by vendors.
None
