SPECstorage™ Solution 2020_swbuild Result
Copyright © 2016-2023 Standard Performance Evaluation Corporation
|
SPECstorage™ Solution 2020_swbuild ResultCopyright © 2016-2023 Standard Performance Evaluation Corporation |

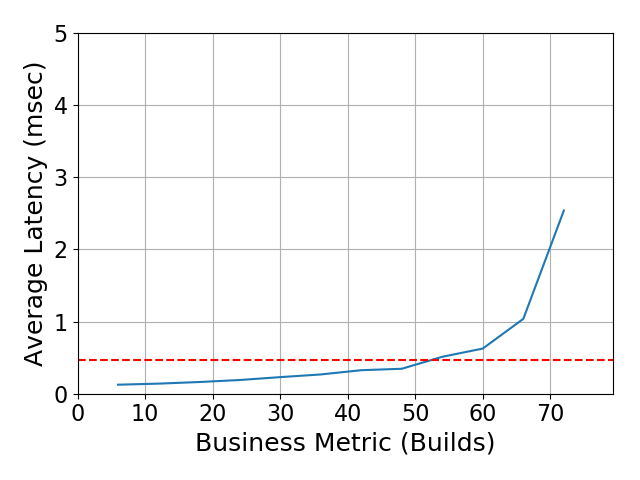

| Super Micro Computer | SPECstorage Solution 2020_swbuild = 72 Builds |
|---|---|
| SYS-221H-TN24R Hyper Storage Sever | Overall Response Time = 0.47 msec |
|
|
| SYS-221H-TN24R Hyper Storage Sever | |
|---|---|
| Tested by | Super Micro Computer | Hardware Available | Jan 10 2023 | Software Available | Dec 2022 | Date Tested | Dec 2022 | License Number | 91 | Licensee Locations | San Jose, CA, USA |
The SYS-221H-TN24R is the new generation of 24x 2.5” hot-swap NVMe/SAS/SATA hybrid SuperServer that delivers a massive improvement in storage performance over systems based on NVMe, SATA, and SAS. The new servers are also more power efficient and flexible than the traditional systems. The new servers have hot-plug capability to provide more serviceability and availability.
| Item No | Qty | Type | Vendor | Model/Name | Description |
|---|---|---|---|---|---|
| 1 | 1 | Storage | Super Micro Computer | SYS-221H-TN24R | The current SYS-221H-TN24R is - 2 Intel dual Sapphire Rapids Xeon scalable 48 core processor, total 1 TiB memory, and dual socket MB - using NFSv4.2 protocol over a 100 GbE. SYS-221H-TN24R server provides IO/s from 2 file systems. The SYS-221H-TN24R server uses a dual socket processor and 14 NVMe SSD. SYS-221H-TN24R is running RHEL8.7 on 2 SATA SSD (RAID-1) using NFSv4.2 and 1 100GbE Ethernet networking. |
| 2 | 1 | 100Gbps or 40Gbps | Super Micro Computer | SSE-C3632S | The SSE-C3632S Layer 2/3 Ethernet Switch is the latest entry from Supermicro in the Open Networking arena. Open Networking provides customers with the ability to maximize the efficient and flexible use of valuable data center resources while providing an ideal platform for managing and maintaining those resources in a manner in tune with the needs of the organization. |
| 3 | 8 | Clients | Super Micro Computer | SYS-621BT-HNC8R | A single 2U SYS-621BT-HNC8R is supporting 4 nodes. In each node, there are 2 Intel dual Sapphire Rapids Xeon scalable 28 core processors, total 256GB memory, and dual socket MB. The Supermicro® Super I/O Module (SIOM) delivers up to 50% of I/O cost savings and freedom to select networking options from 1Gb/s to100Gb/s through a Supermicro optimized form factor that is easy to scale, service and manage across a broad range of Supermicro server and storage systems. The SIOM also enables a higher degree of system integration and increased capacity by saving PCI-E slots that are traditionally reserved for add on cards. With SIOM you choose your onboard I/O. |
| 4 | 9 | 100GbE HBA Card | Super Micro Computer | AOC-S100GC-i2C | The Supermicro AOC-S100GC-i2C is a high-performance leading-edge 100Gb/s Ethernet adapter featuring Intel® E810-CAM2 with PCI-E Gen 4 support with backward compatibility to PCI-E Gen 3. |
| 5 | 14 | SSD | Samsung | MZWLO15THBLA | PCIe Gen5 NVMe installed in storage node (SYS-221H-TN24R). |
| 6 | 1 | Gigabit Switch | TP-Link | TL-SG1016D | 16 port Gigabit Switch for management connectivity. |
| 7 | 2 | SSD | Micron | MTFDDAK1T9TDD | SATA SSD installed in storage node (SYS-221H-TN24R) for OS. |
| 8 | 32 | DDR5 | Samsung | M321R4GA3DB0 | 32GB memory module is populated in storage node (SYS-221H-TN24R). |
| Item No | Component | Type | Name and Version | Description |
|---|---|---|---|---|
| 1 | Prime Client | Linux | RHEL8.7 | Operating System (OS) for 1 load generator (one of the client nodes - Prime) in SYS-621BT-HNC8R |
| 2 | Storage Node | Storage OS | RHEL8.7 | Storage Operating System (SYS-221H-TN24R) |
| 3 | Clients | Client OS | RHEL8.7 | Operating System (OS) for 8 clients in 2x SYS-621BT-HNC8R |
| Storage Node | Parameter Name | Value | Description |
|---|---|---|
| Port speed | 100Gb | Internal switch port speed with default setting | Clients | Parameter Name | Value | Description |
| Port speed | 100Gb | Internal switch port speed with default setting |
Supermicro SYS-221H-TN24R (AOC-S100GC-i2C) 100Gb ethernet ports are setup to default MTU frames. SYS-621BT-HNC8R (AOC-S100GC-i2C) clients is 100Gb ethernet ports are setup to default MTU frames.
| Clients | Parameter Name | Value | Description |
|---|---|---|
| MTU | 1500 | Default MTU frames setup |
| Vers | 4.2 | NFS protocol version |
None
None.
| Item No | Description | Data Protection | Stable Storage | Qty |
|---|---|---|---|---|
| 1 | 2x RAID-10 volumes and each volume consists of 6 drives and 1 spare drive. Total 14 drives | RAID-10 volume with hot-spare | Stable Storage | 14 |
| 2 | 1x RAID-1 volumes and OS is installed on it | RAID-1 volume | Stable Storage | 2 |
| Number of Filesystems | 2 | Total Capacity | 83.82TiB | Filesystem Type | xfs |
|---|
Filesystem is created with full capacity and default(no) options.
First filesystem on nfs server is mounted on first 4 clients (cn0~cn3) and second filesystem on nfs server is mounted on last 4 clients (cn4~cn7) over nfs.
| Item No | Transport Type | Number of Ports Used | Notes |
|---|---|---|---|
| 1 | 100GbE network | 1 | Storage server connects to the 100Gb link. |
| 2 | 100GbE network | 8 | Each clients server connects to the 100Gb link |
Configured 32 ports to 100Gb. Only 9x 100Gb ports were used.
| Item No | Switch Name | Switch Type | Total Port Count | Used Port Count | Notes |
|---|---|---|---|---|---|
| 1 | SSE-C3632S | 100GbE and 40GbE | 32 | 9 | 32x 100GbE ports are available. 9x 100GbE ports are used. Supermicro SSE-C3632S optimized port configuration enables high-speed rack connectivity to any server |
| Item No | Qty | Type | Location | Description | Processing Function |
|---|---|---|---|---|---|
| 1 | 2 | CPU | File System Storage Node | Intel(R) Xeon(R) Platinum 8468V @ 2.40GHz, hyperthreading enabled | File System Storage Node |
| 2 | 16 | CPU | File System Client Node | Intel(R) Xeon(R) Platinum 8450H @ 2.00GHz, hyperthreading enabled | Each system is dual socket and 8 clients in 2x SYS-621BT-HNC8R. |
Each node in the system (Client and Storage node) has two physical processors each. Each processor has multiple cores as mentioned in the table above.
| Description | Size in GiB | Number of Instances | Nonvolatile | Total GiB |
|---|---|---|---|---|
| System memory in storage node | 32 | 32 | V | 1024 |
| System memory in client node | 32 | 64 | V | 2048 | Grand Total Memory Gibibytes | 3072 |
None.
The storage node does not use write cache to store data so writes are committed to disk immediately. All data is protected in the file system by a RAID-10 volume and spare storage configuration including metadata. The entire SUT is protected with redundant power supplies, both storage node and clients. Storage node have two SATA device for OS redundancy.
The solution is a configuration by Supermicro with managing metadata for the file system. SYS-221H-TN24R storage node is the new generation of all-flash SuperServer that delivers a massive improvement in storage performance.
None.
The storage node is connected to 100Gbit ethernet switch and 8 clients are connected to 100Gbit Switch via 100Gbit. No special tuning parameters are used in the connections. The file system is created and shared over NFSv4.2. Please refer to the diagram.
The Spectre or Meltdown (CVE-2017-5754, CVE-2017-5753, CVE-2017-5715) fix were applied to CPU and OS by vendors.
None.
Generated on Wed Jan 4 21:34:57 2023 by SpecReport
