SPECsfs97_R1.v3 Result

IBM Corporation :	IBM System p5 550Q (1500 MHz, 8 CPU, TCP)
SPECsfs97_R1.v3 =	118391 Ops/Sec (Overall Response Time = 1.47 msec)

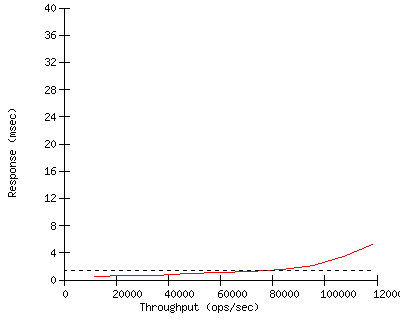

Performance

Throughput (ops/sec)	Response (msec)
11850	0.5
23566	0.6
35582	0.7
47589	0.9
59580	1.1
71505	1.3
83586	1.6
95513	2.1
107260	3.5
118391	5.2

Configuration

Server Configuration and Availability
Vendor	IBM Corporation
Hardware Available	October 2005
Software Available	October 2005
Date Tested	August 2005
SFS License Number	11
Licensee Locations	Austin, Texas

CPU, Memory and Power

Model Name IBM System p5 550Q (1500 MHz, 8 CPU, TCP)

Processor 1.50GHz POWER5+

# of Processors 8 cores, 4 chips, 2 cores/chip (SMT enabled)

Primary Cache 64KBI+32KBD on chip per core

Secondary Cache 1920KB unified on chip per chip

Other Cache 2x36MB unified off chip per QCM, 2 QCMs in SUT

UPS N/A

Other Hardware N/A

Memory Size 64 GB

NVRAM Size 14 GB (14 x 1GB)

NVRAM Type 1GB battery-backed DRAM per controller

NVRAM Description 5-day battery; cache bypass on battery failure

Server Software

OS Name and Version AIX 5L V5.3 (64-bit)

Other Software N/A

File System Enhanced JFS

NFS version 3

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 1

Fileset Size 1134.3 GB

Network Subsystem
Network Type	Jumbo Frame Gigabit
Network Controller Desc.	IBM 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter
Number Networks	6 (N1-N6)
Number Network Controllers	3
Protocol Type	TCP

Switch Type N/A

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 15

Number of Disks 491

Number of Filesystems 98 (F1-F98)

File System Creation Ops default

File System Config See Other Notes

Disk Controller PCI-X Dual Channel Ultra320 SCSI Adapter (integrated)

# of Controller Type 1

Number of Disks 1

Disk Type 36.4GB 10Krpm 16-Bit LVD SCSI Disk Drive

File Systems on Disks OS, page space

Special Config Notes N/A

Disk Controller IBM 2Gb Fiber Channel Adapter (FC 5716)

# of Controller Type 14

Number of Disks 490

Disk Type 18.2GB 15Krpm 2Gb FC

File Systems on Disks F1-F7,F8-F14,F15-F21,...,F92-F98

Special Config Notes See Other Notes

Load Generator (LG) Configuration
Number of Load Generators	6
Number of Processes per LG	98
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model IBM eServer pSeries 615 Model 6C3

Number and Type Processors 2 x 1.2GHz POWER4+

Memory Size 4 GB

Operating System AIX 5L V5.2 ML01 plus APAR IY44149

Compiler N/A, SFS97_R1 pre-compiled binaries

Compiler Options N/A

Network Type IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1 LG1 N1 F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,...,F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98 N/A

2 LG1 N2 F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,...,F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98 N/A

3 LG1 N3 F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,...,F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98 N/A

4 LG1 N4 F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,...,F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98 N/A

5 LG1 N5 F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,...,F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98 N/A

6 LG1 N6 F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,...,F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1	LG1	N1	F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,...,F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98	N/A
2	LG1	N2	F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,...,F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98	N/A
3	LG1	N3	F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,...,F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98	N/A
4	LG1	N4	F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,...,F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98	N/A
5	LG1	N5	F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,...,F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98	N/A
6	LG1	N6	F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,...,F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98	N/A

Other Notes

There are 7 IBM TotalStorage DS4400 Storage Server units attached to
the SUT. Each DS4400 contains 2 controllers. Each controller is
connected to an FC adapter. Also, each controller has a 1GB cache.
Writes to either cache are mirrored in the other such that the total
effective write cache is 1GB per DS4400. There are 5 EXP700 expansion
units connected to each DS4400. Every EXP700 contains 14 physical
disks. A logical disk is composed of 5 physical disks in a RAID-5
configuration. There is one test filesystem per logical disk.
Note that the DS4400 product was previously named FAStT700.
Enhanced JFS is used for OS and the test filesystems (F1-F98).
The size of each test filesystem log is 256MB.
QCM stands for Quad-Core Module, two dual-core processor chips plus two
L3-cache chips.
SMT stands for Simultaneous Multi-Threading. SMT is a processor technology
that allows the simultaneous execution of multiple thread contexts within a
single processor core. SMT enabled is the default mode of operation.
1 2-Port Gigabit Ethernet and 2 Fiber Channel adapters were placed in the internal
system I/O slots. Both ports of the 2-Port Gigabit Ethernet adapters
were used during the benchmark run.
Using jumbo frames (9000-byte MTU) over Gigabit Ethernet.
There were also 2 external 7711-D20 I/O drawers used in this configuration.
Each drawer contained 1 2-Port Gigabit Ethernet and 6 Fiber Channel adapters.
Server tuning: Gigabit Ethernet adapter jumbo_frames=yes,
nfs_server_base_priority=80, nfs_server_clread=0
Client tuning: Gigabit Ethernet adapter jumbo_frames=yes
The number of NFS daemons (nfsd threads) is dynamic.
APAR IY71011 applied on AIX 5L V5.3 to achieve Maintenance Level 3.

First published at SPEC.org on 25-Oct-2005
