SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Quanta Cloud Technology QuantaGrid D55Q-2U | SPECpower_ssj2008 = 22,120 overall ssj_ops/watt | ||||
| Test Sponsor: | Quanta Computer Inc. | SPEC License #: | 9050 | Test Method: | Single Node |
| Tested By: | Quanta Computer Inc. | Test Location: | Taoyuan, TW, R.O.C | Test Date: | Mar 18, 2025 |
| Hardware Availability: | Sep-2024 | Software Availability: | Nov-2024 | Publication: | Apr 9, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

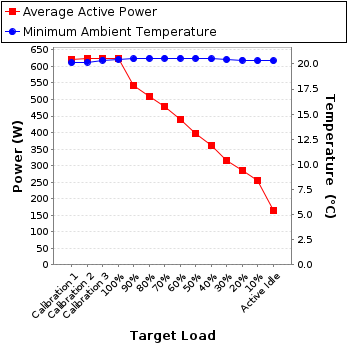

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 621 | 20.1 |
| Calibration 2 | 624 | 20.2 |
| Calibration 3 | 625 | 20.4 |
| 100% | 624 | 20.4 |
| 90% | 542 | 20.5 |
| 80% | 510 | 20.6 |
| 70% | 478 | 20.6 |
| 60% | 440 | 20.6 |
| 50% | 398 | 20.6 |
| 40% | 361 | 20.5 |
| 30% | 315 | 20.4 |
| 20% | 284 | 20.4 |
| 10% | 255 | 20.3 |
| Active Idle | 165 | 20.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT310 |
| Serial Number: | C2PM12064V |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | SGS |
| Calibration Label: | ECR2416369 |
| Date of Calibration: | 08-May-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/T |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |

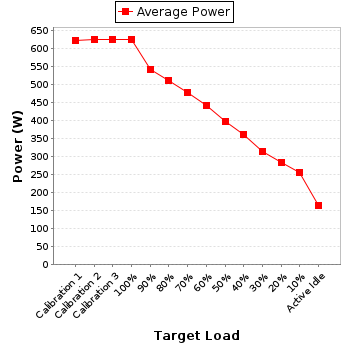

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 217 | 300.0 | 2.88 | 10.0 | 0.992 | 621 | 0.6% |
| Calibration 2 | 217 | 300.0 | 2.89 | 10.0 | 0.992 | 624 | 0.6% |
| Calibration 3 | 218 | 300.0 | 2.89 | 10.0 | 0.992 | 625 | 0.6% |
| 100% | 218 | 300.0 | 2.89 | 10.0 | 0.992 | 624 | 0.6% |
| 90% | 218 | 300.0 | 2.51 | 5.0 | 0.990 | 542 | 0.4% |
| 80% | 218 | 300.0 | 2.37 | 5.0 | 0.988 | 510 | 0.4% |
| 70% | 218 | 300.0 | 2.22 | 5.0 | 0.986 | 478 | 0.4% |
| 60% | 218 | 300.0 | 2.05 | 5.0 | 0.984 | 440 | 0.5% |
| 50% | 219 | 300.0 | 1.85 | 5.0 | 0.982 | 398 | 0.5% |
| 40% | 219 | 300.0 | 1.68 | 5.0 | 0.979 | 361 | 0.6% |
| 30% | 219 | 300.0 | 1.47 | 5.0 | 0.977 | 315 | 0.6% |
| 20% | 219 | 300.0 | 1.33 | 2.0 | 0.973 | 284 | 0.4% |
| 10% | 219 | 300.0 | 1.20 | 2.0 | 0.968 | 255 | 0.4% |
| Active Idle | 220 | 300.0 | 0.805 | 2.0 | 0.933 | 165 | 0.5% |
