SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant Compute ML350 Gen12 | SPECpower_ssj2008 = 19,150 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Feb 8, 2025 |
| Hardware Availability: | Mar-2025 | Software Availability: | Oct-2024 | Publication: | Apr 25, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

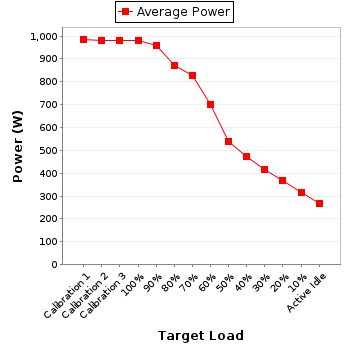

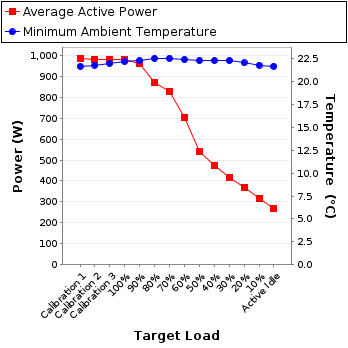

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 986 | 21.7 |
| Calibration 2 | 982 | 21.8 |
| Calibration 3 | 982 | 22.0 |
| 100% | 981 | 22.2 |
| 90% | 961 | 22.3 |
| 80% | 873 | 22.6 |
| 70% | 826 | 22.6 |
| 60% | 702 | 22.4 |
| 50% | 540 | 22.3 |
| 40% | 473 | 22.3 |
| 30% | 415 | 22.3 |
| 20% | 367 | 22.1 |
| 10% | 317 | 21.8 |
| Active Idle | 268 | 21.7 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB47168 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-H48PA-80-1 |
| Date of Calibration: | 01-Aug-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 4.88 | 5.0 | 0.983 | 986 | 0.3% |
| Calibration 2 | 206 | 300.0 | 4.84 | 5.0 | 0.983 | 982 | 0.3% |
| Calibration 3 | 206 | 300.0 | 4.85 | 5.0 | 0.983 | 982 | 0.3% |
| 100% | 206 | 300.0 | 4.85 | 5.0 | 0.983 | 981 | 0.3% |
| 90% | 206 | 300.0 | 4.75 | 5.0 | 0.982 | 961 | 0.3% |
| 80% | 206 | 300.0 | 4.32 | 5.0 | 0.980 | 873 | 0.4% |
| 70% | 207 | 300.0 | 4.09 | 5.0 | 0.977 | 826 | 0.4% |
| 60% | 207 | 300.0 | 3.50 | 5.0 | 0.969 | 702 | 0.4% |
| 50% | 206 | 300.0 | 2.76 | 5.0 | 0.950 | 540 | 0.5% |
| 40% | 206 | 300.0 | 2.46 | 5.0 | 0.936 | 473 | 0.5% |
| 30% | 206 | 300.0 | 2.19 | 5.0 | 0.920 | 415 | 0.6% |
| 20% | 206 | 300.0 | 1.98 | 5.0 | 0.900 | 367 | 0.7% |
| 10% | 205 | 300.0 | 1.76 | 5.0 | 0.874 | 317 | 0.7% |
| Active Idle | 205 | 300.0 | 1.56 | 5.0 | 0.837 | 268 | 0.8% |
