SPECpower_ssj2008

xFusion Digital Technologies Co., Ltd FusionServer 2158H V8			SPECpower_ssj2008 = 36,151 overall ssj_ops/watt
Test Sponsor:	xFusion Digital Technologies Co., Ltd	SPEC License #:	6488	Test Method:	Single Node
Tested By:	xFusion Digital Technologies Co., Ltd	Test Location:	Shenzhen, Guangdong, China	Test Date:	Mar 14, 2025
Hardware Availability:	May-2025	Software Availability:	Mar-2025	Publication:	Apr 9, 2025
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	xFusion Digital Technologies Co., Ltd
Model:	FusionServer 2158H V8
Form Factor:	2U
CPU Name:	AMD EPYC 9965 192-Core Processor
CPU Characteristics:	192 core, 2.25 GHz, 384 MB L3 Cache, Max Boost Clock up to 3.70 GHz
CPU Frequency (MHz):	2250
CPU(s) Enabled:	192 cores, 1 chip, 192 cores/chip
Hardware Threads:	384 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	384 MB I+D on chip per chip, 32 MB shared / 16 cores
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	12 x 32 GB
Memory Details:	32GB 2Rx8 PC5-5200B-R; slot DIMM000, DIMM010, DIMM020, DIMM030, DIMM040, DIMM050, DIMM060, DIMM070, DIMM080, DIMM900, DIMM0A0, DIMM0B0 populated
Power Supply Quantity and Rating (W):	1 x 900
Power Supply Details:	xFusion P/N PAC900S12-B2
Disk Drive:	1 x 480GB SSD 2.5" SATA, xFusion P/N:06210545
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Balance Mode enabled in OS
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	21H2(OS Build 20348.3328)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 17.0.12, mixed mode, sharing)
JVM Command-line Options:	-server -Xmn1450m -Xms1650m -Xmx1650m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:FreqInlineSize=2500 -XX:InlineSmallCode=3900 -XX:+UseBiasedLocking -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=8
JVM Affinity:	start /NODE[0-11] /AFFINITY [0xF to 0xF0000000]
JVM Instances:	96
JVM Initial Heap (MB):	1500
JVM Maximum Heap (MB):	1500
JVM Address Bits:	64
Boot Firmware Version:	00.13.01.07
Management Firmware Version:	3.08.07.01
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	none

none

Each JVM instance was bound to 4 logical processors.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Run initiated via Windows Remote Desktop Connection.
Hard Disk set to turn off after 1 minute.
Display set to turn off after 1 minute.
SPECpower_ssj.props input.load_level.number_warehouses set to 384 since processor has 192 cores.
Power Plan Minimum processor state set to 0%.
Power Plan Maximum processor state set to 100%.
Using Windows PowerShell, set the following powercfg properties:.
Powercfg /setacvalueindex scheme_current sub_processor PERFDECTHRESHOLD 95.
Powercfg /setactive scheme_current.
The system ROM used for this result contains AMD AGESA version 2110100B00000000 for the AMD EPYC 9965 processor.

Hardware
Hardware Vendor:	xFusion Digital Technologies Co., Ltd
Model:	FusionServer 1158H V7
CPU Description:	1 x AMD EPYC 9474F
Memory amount (GB):	256

Software
Operating System (OS):	Windows Server 2022 Standard (64-bit)
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 17.0.12+8-LTS-286, mixed mode, sharing)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	YOKOGAWA Inc.
Model:	WT210
Serial Number:	91M412343
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by:	Calibration and Testing Center of CEPREI
Calibration Label:	23C8A9D47E7D6E6A6F
Date of Calibration:	30-Jul-2024
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.11.1-462c978e-20240907
Setup Description:	Connected to PSU 1

Temperature Sensor temp1
Hardware Vendor:	iButtonLink
Model:	LinkUSBi And iButtonLink T-Probe
Driver Version:	4.05
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm.

None

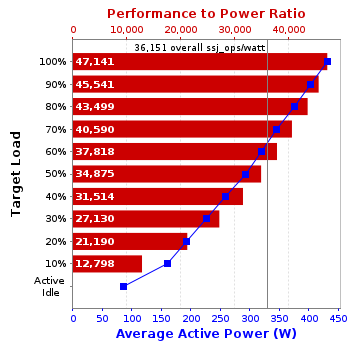

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	432	23.1
90%	404	23.1
80%	375	23.1
70%	345	23.1
60%	321	23.1
50%	293	23.2
40%	259	23.1
30%	226	23.1
20%	193	23.0
10%	160	23.0
Active Idle	86.6	23.0

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 2 wires	23.0	101

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
