Lenovo Global Technology Think System SR635 V3 SPECpower_ssj2008 = 40,528 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Nov 8, 2024
Hardware Availability: Feb-2025 Software Availability: Sep-2024 Publication: Dec 17, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 489 22.6
Calibration 2 490 22.6
Calibration 3 378 22.6
100% 373 22.6
90% 336 22.6
80% 308 22.6
70% 287 22.6
60% 264 22.6
50% 236 22.7
40% 211 22.7
30% 183 22.8
20% 154 22.8
10% 124 22.8
Active Idle 64.3 22.9

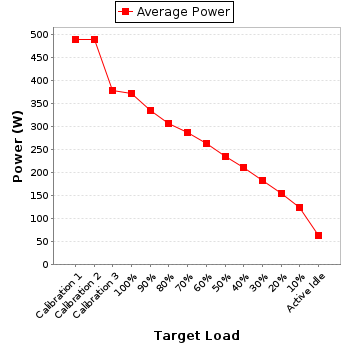

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31010E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: CHINA CEPREI LABORATORY CALIBRATION & TESTING CENTRB
Calibration Label: 1GA24011968-0004
Date of Calibration: 26-Sep-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 2.27 5.0 0.983 489 0.3%
Calibration 2 219 300.0 2.27 5.0 0.983 490 0.3%
Calibration 3 220 300.0 1.77 5.0 0.975 378 0.3%
100% 220 300.0 1.74 5.0 0.974 373 0.3%
90% 220 300.0 1.58 5.0 0.969 336 0.4%
80% 220 300.0 1.45 5.0 0.966 308 0.4%
70% 220 300.0 1.36 5.0 0.962 287 0.4%
60% 220 300.0 1.26 5.0 0.956 264 0.4%
50% 220 300.0 1.13 5.0 0.947 236 0.5%
40% 220 300.0 1.03 5.0 0.935 211 0.5%
30% 220 300.0 0.907 2.0 0.919 183 0.3%
20% 220 300.0 0.777 2.0 0.902 154 0.4%
10% 220 300.0 0.654 2.0 0.860 124 0.4%
Active Idle 220 300.0 0.410 2.0 0.713 64.3 0.6%
Power details for pwr1
