Lenovo Global Technology Think System SR635 V3 SPECpower_ssj2008 = 40,010 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Nov 18, 2024
Hardware Availability: Feb-2025 Software Availability: Jun-2024 Publication: Dec 17, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 493 22.8
Calibration 2 493 22.9
Calibration 3 380 22.9
100% 374 22.9
90% 351 22.8
80% 308 22.8
70% 286 22.7
60% 260 22.6
50% 233 22.5
40% 209 22.5
30% 181 22.5
20% 151 22.4
10% 123 22.4
Active Idle 66.0 22.4

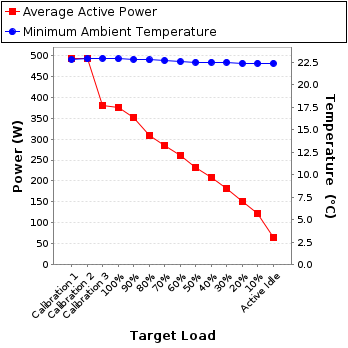

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31010E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: CHINA CEPREI LABORATORY CALIBRATION & TESTING CENTRB
Calibration Label: 1GA24011968-0004
Date of Calibration: 26-Sep-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 2.28 5.0 0.985 493 0.3%
Calibration 2 219 300.0 2.28 5.0 0.985 493 0.3%
Calibration 3 220 300.0 1.77 5.0 0.977 380 0.3%
100% 219 300.0 1.75 5.0 0.976 374 0.3%
90% 219 300.0 1.64 5.0 0.973 351 0.4%
80% 220 300.0 1.45 5.0 0.969 308 0.4%
70% 220 300.0 1.35 5.0 0.965 286 0.4%
60% 220 300.0 1.23 5.0 0.960 260 0.4%
50% 220 300.0 1.12 5.0 0.952 233 0.5%
40% 220 300.0 1.01 5.0 0.941 209 0.5%
30% 220 300.0 0.889 2.0 0.925 181 0.3%
20% 220 300.0 0.757 2.0 0.910 151 0.4%
10% 220 300.0 0.641 2.0 0.873 123 0.4%
Active Idle 220 300.0 0.412 2.0 0.728 66.0 0.6%

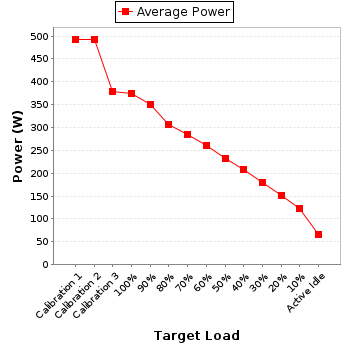

Power details for pwr1
