Lenovo Global Technology Think System SR635 V3 SPECpower_ssj2008 = 32,737 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Sep 23, 2024
Hardware Availability: Nov-2024 Software Availability: Jun-2024 Publication: Oct 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 509 23.1
Calibration 2 510 23.1
Calibration 3 509 23.1
100% 387 23.0
90% 367 22.9
80% 325 22.8
70% 300 22.8
60% 274 22.8
50% 249 22.8
40% 223 22.8
30% 197 22.8
20% 170 22.8
10% 140 22.8
Active Idle 68.2 22.8

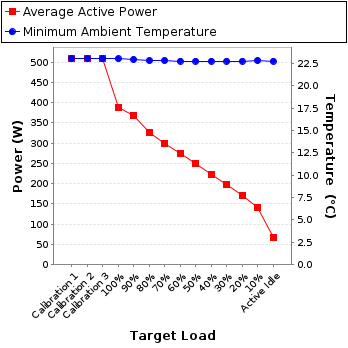

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UD17024E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202308266858A-0006
Date of Calibration: 16-Oct-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 2.34 2.5 0.993 509 0.3%
Calibration 2 219 300.0 2.34 2.5 0.993 510 0.3%
Calibration 3 219 300.0 2.34 2.5 0.993 509 0.3%
100% 220 300.0 1.78 2.5 0.989 387 0.3%
90% 220 300.0 1.69 2.5 0.988 367 0.3%
80% 220 300.0 1.50 2.5 0.985 325 0.4%
70% 220 300.0 1.39 2.5 0.984 300 0.4%
60% 220 300.0 1.27 2.5 0.983 274 0.4%
50% 220 300.0 1.16 2.5 0.980 249 0.4%
40% 220 300.0 1.04 2.5 0.975 223 0.5%
30% 220 300.0 0.925 2.5 0.969 197 0.5%
20% 220 300.0 0.802 2.5 0.963 170 0.6%
10% 220 300.0 0.667 2.5 0.956 140 0.7%
Active Idle 220 300.0 0.370 1.0 0.838 68.2 0.6%

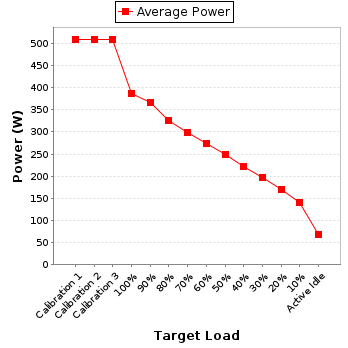

Power details for pwr1
